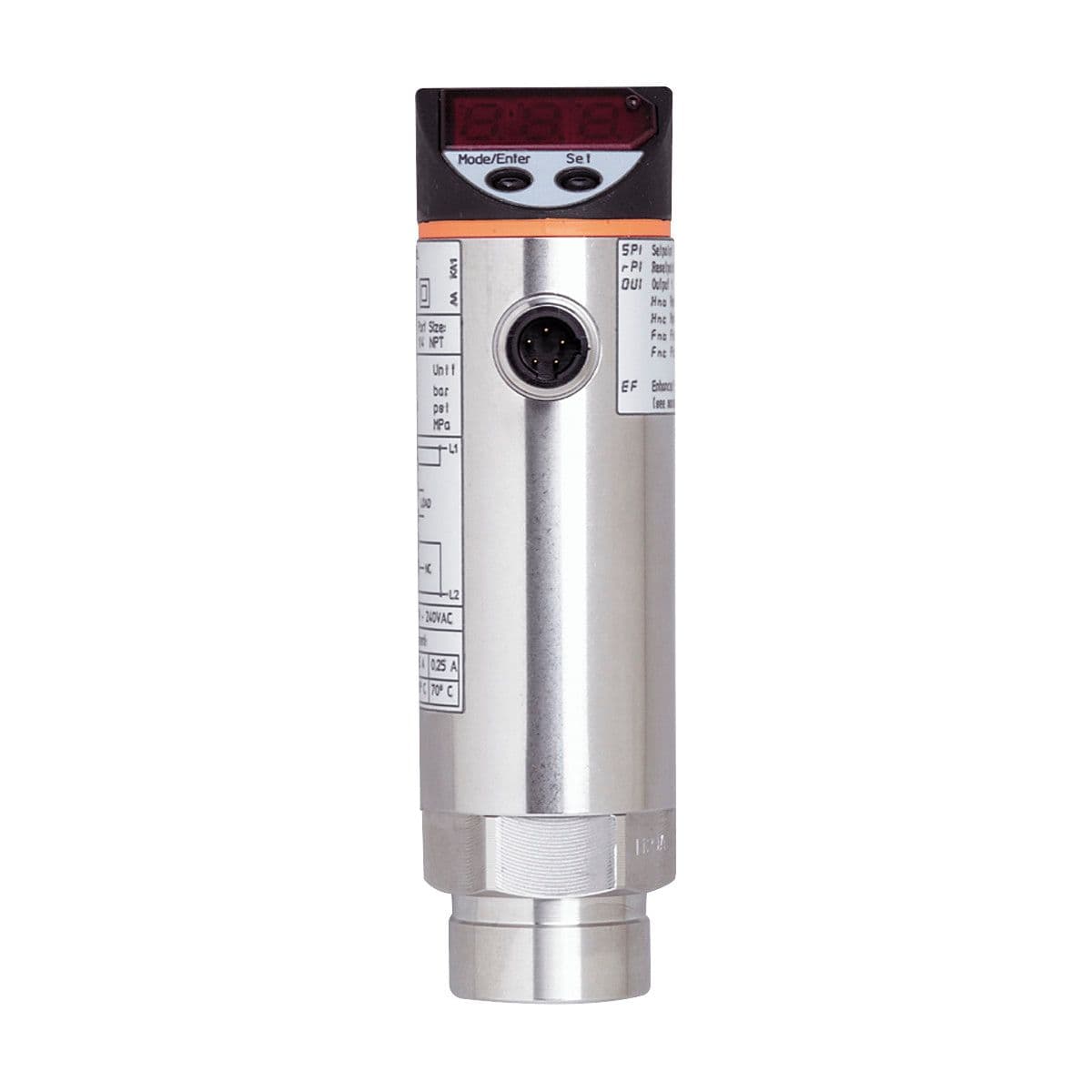

PN4226 ifm Electronic Electronic Components

Product Details

• Operating voltage [V]
  85...265 AC
• Total number of outputs
  1
• Overload protection
  no
• Measuring range
  0...2.5 bar 0...2500 mbar 0...36.3 psi 0...250 kPa
• Nominal voltage AC [V]
  < 250
• Max. voltage drop switching output AC [V]
  2
• Short-circuit proof
  no
• Media
  liquids and gases
• Medium temperature [°C]
  -25...80
• Integrated watchdog
  yes
• Min. bursting pressure
  50 bar 725 psi 5000 kPa
• Operating voltage tolerance [%]
  5...10
• Number of inputs and outputs
  Number of digital outputs: 1
• Switching frequency AC [Hz]
  < 160
• Current consumption [mA]
  < 10
• Output signal
  switching signal
• Number of digital outputs
  1
• Process connection
  threaded connection 1/4" NPT Internal thread
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Electrical design
  Triac
Application
for industrial applications
Reverse polarity protection
no
Permanent current rating of switching output AC [mA]
250; ((...70 °C) 1000 (...60 °C) 1500 (...45 °C) 2500 (...20 °C))
Type of pressure
relative pressure
Power-on delay time [s]
0.2
Pressure rating
20 bar 290 psi 2000 kPa
Protection class
II
Output function
normally open / closed; (configurable)
