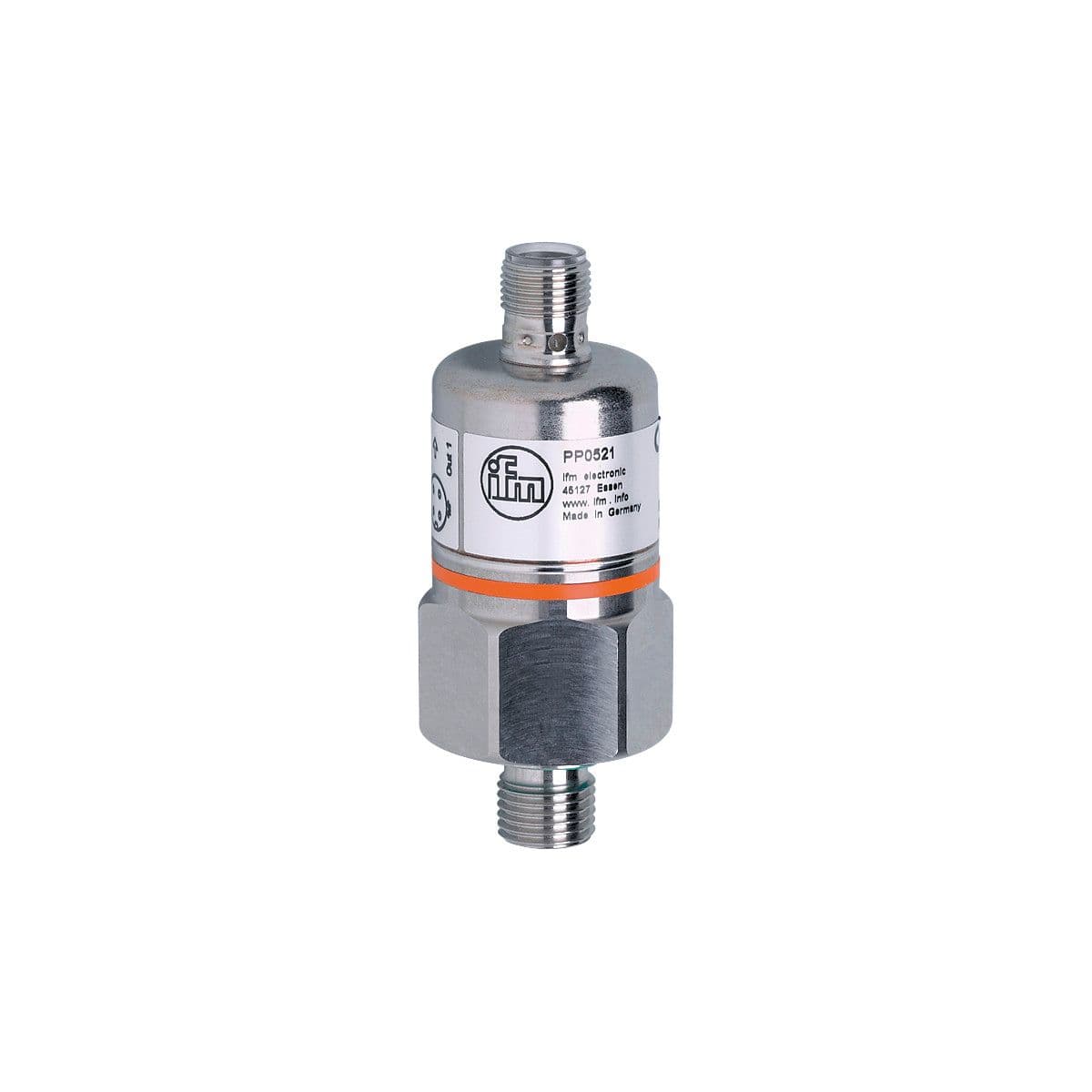

PP0521 ifm Electronic Electronic Components

Product Details

• Overload protection
  yes
• Output function
  normally open / closed; (configurable)
• Max. voltage drop switching output DC [V]
  2
• Electrical design
  NPN
• Number of digital outputs
  2
• Protection class
  III
• Reverse polarity protection
  yes
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Type of pressure
  relative pressure
• Media
  liquids and gases
• Measuring range
  0...250 bar 0...3625 psi 0...25 MPa
• Output signal
  switching signal
• Pressure rating
  400 bar 5800 psi 40 Mpa
• Switching frequency DC [Hz]
  170
• Type of short-circuit protection
  yes (non-latching)
• Short-circuit protection
  yes
• Permanent current rating of switching output DC [mA]
  250
• Number of inputs and outputs
  Number of digital outputs: 2
• Current consumption [mA]
  < 45
• Total number of outputs
  2
Power-on delay time [s]
0.3
Operating voltage [V]
9.6...36 DC; (communication mode: 18...32)
Medium temperature [°C]
-25...90
Min. bursting pressure
850 bar 12300 psi 85 MPa
Conditionally suitable for
use in gases at pressures > 25 bar only on request
Application
for industrial applications
Process connection
threaded connection G 1/4 external thread Internal thread:M5
