PP0524 ifm Electronic Electronic Components
Part#:PP0524
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

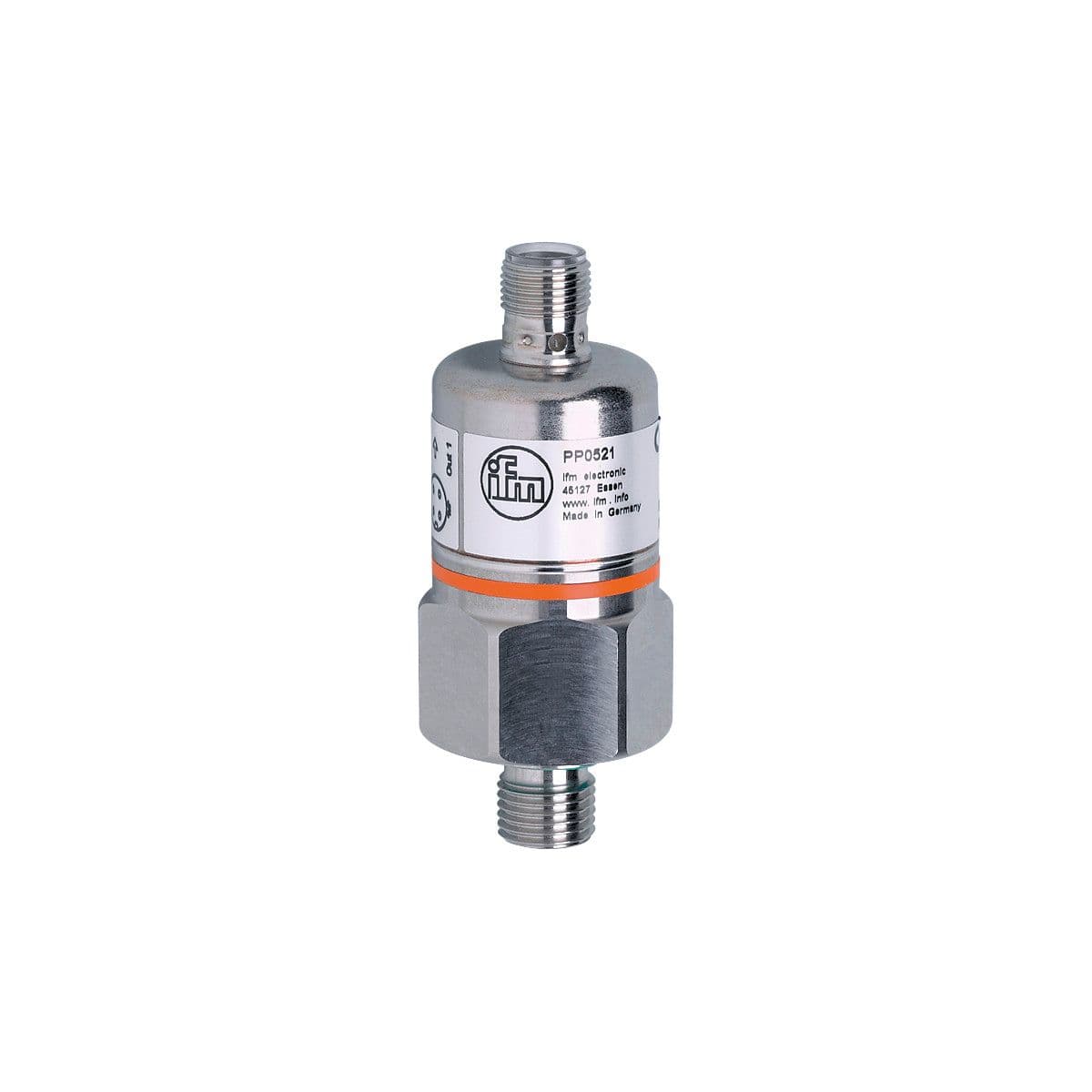

Pressure switch with ceramic measuring cell, Robust design for use in harsh industrial environments, Output signal: switching signal, Measuring range: -1...10 bar -14.5...145 psi -100...1000 kPa -0.1...1 MPa, Process connection: threaded connection G 1/4
Product Details
- Current consumption [mA] < 45
- Max. voltage drop switching output DC [V] 2
- Measuring range -1...10 bar -14.5...145 psi -100...1000 kPa -0.1...1 MPa
- Pressure rating 75 bar 1087 psi 7.5 Mpa
- Number of inputs and outputs Number of digital outputs: 2
- Process connection threaded connection G 1/4 external thread Internal thread:M5
- Electrical design NPN
- Type of pressure relative pressure; vacuum
- Total number of outputs 2
- Short-circuit protection yes
- Operating voltage [V] 9.6...36 DC; (communication mode: 18...32)
- Output signal switching signal
- Number of digital outputs 2
- Overload protection yes
- Application for industrial applications
- Power-on delay time [s] 0.3
- Permanent current rating of switching output DC [mA] 250
- Medium temperature [°C] -25...90
- Protection class III
- Switching frequency DC [Hz] 170
- Min. bursting pressure 150 bar 2175 psi 15 MPa
- Reverse polarity protection yes
- Type of short-circuit protection yes (non-latching)
- Media liquids and gases
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Output function normally open / closed; (configurable)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
