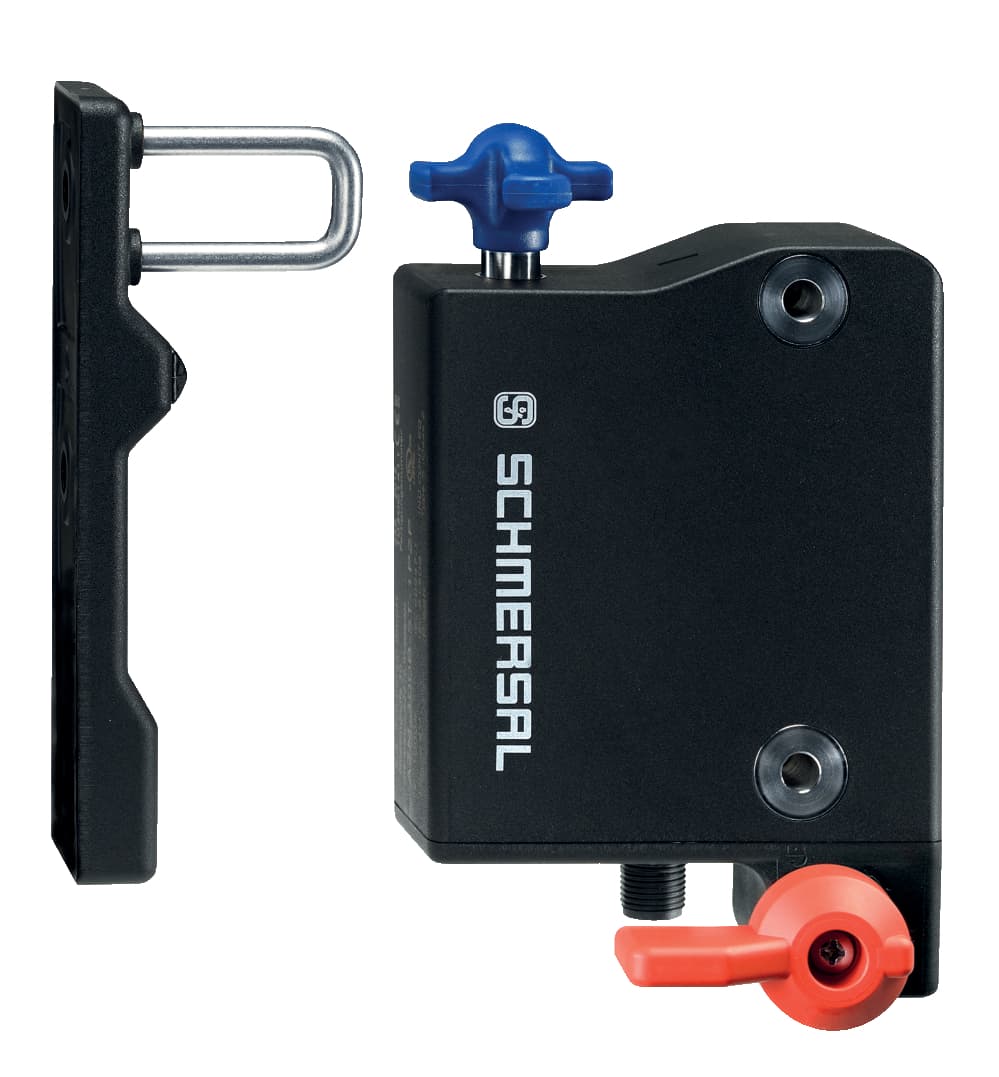

AZM300B-I2-ST-1P2P-A-T Schmersal Safety Switches

Product Details

• Enclosure material
  Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Duration of risk, maximum
  200 ms
• Safety functions
  Yes
• Note (series connection of the sensors)
  Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
• Storage and transport temperature, maximum
  +90 °C
• Rated impulse withstand voltage Uimp
  0.8 kV
• Current consumption at 24V
  5 mA
• Current, Utilisation category DC13
  0.05 A
• Frequency band RFID
  125 kHz
• Actuator monitored
  Yes
• Angular offset between interlocking device and actuator, maximum
  2 °
• Latching force, adjustable, position 1
  25 N
• Length of sensor
  146 mm
• Ambient temperature, minimum
  +0 °C
• Overvoltage category
  III
• Required rated short-circuit current to EN 60947-5-1
  100 A
• Voltage, Utilisation category DC13
  24 VDC
• Transmit power, maximum
  -6 dB/m
• Response time safety outputs in case of switch-off by actuator, maximum
  100 ms
• Clamping force, maximum Fmax
  1,500 N
Number of fail-safe digital outputs
2
Ensured switch distance ON Sao
1 mm
Height of sensor
55 mm
Operating voltage, minimum
20.4 VDC
External wiring and device fuse rating
2 A gG
Classification ZVEI CB24I, Sink
C1, C2
Voltage drop Ud, maximum
4 V
Short-circuit recognition
Yes
Time to readiness, maximum
5,000 ms
Note (Mechanical lifetime)
When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
Note (length of the sensor chain)
Cable length and cross-section change the voltage drop dependiing on the output current
Storage and transport temperature, minimum
-10 °C
Zulässige Aufstellhöhe über NN, maximum
2,000 m
No-load supply current I0
100 mA
Test pulse duration, maximum
0.5 ms
Gross weight
610 g
Latching
Yes
Latching force, adjustable, position 2
50 N
Tightening torque for the fixing screws, maximum
7 Nm
Degree of protection
IP66 to EN 60529, IP67 to EN 60529, IP69 to EN 60529
Restistance to shock
30 g / 11 ms
Rated insulation voltage Ui
32 VDC
Switching thresholds
−3 V … 5 V (Low), 15 V … 30 V (High)
Current leakage Ir
0.5 mA
Coding level according to ISO 14119
High
Response time safety outputs in case of switch-off by safety inputs, maximum
1.5 ms
Mechanical life, minimum
1,000,000 Operations
Clamping force in accordance with ISO14119 Fzh
1,150 N
Switch distance
2 mm
Note (Relative humidity)
non-condensing, non-icing
Degree of pollution to IEC/EN 60664-1
3
Current consumption with solenoid ON, peak
350 mA / 200 ms
Test pulse interval, minimum
100 ms
Voltage, Utilisation category DC12
24 VDC
general information
Individual coding, multiple teaching
Short circuit detection
Yes
Integral System Diagnostics, status
Yes
Terminal Connector
Connector M12, 8-pole, A-coded
Width of sensor
87.5 mm
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Operating voltage, maximum
26.4 VDC
Switching frequency, maximum
0.5 Hz
Versions
short-circuit proof, p-type
Standards
IEC 61508, IEC 60947-5-3, EN ISO 13849-1
Emergency exit
Yes
Type of the fixing screws
2x M6
Length of sensor chain, maximum
200 m
Relative humidity, maximum
93 %
Protection rating
III
Notes (Power supply, general)
stabilised PELV power supply
Duty cycle solenoid
100 %
Current, Utilisation category DC12
0.05 A
Active principle
RFID
Series-wiring
Yes
Tightening torque of the fixing screws, minimum
6 Nm
Ensured switch distance OFF Sar
20 mm
Ambient temperature, maximum
+60 °C
Current consumption with solenoid ON, average
200 mA
Classification ZVEI CB24I, Source
C2
Test pulse interval, typical
1000 ms
