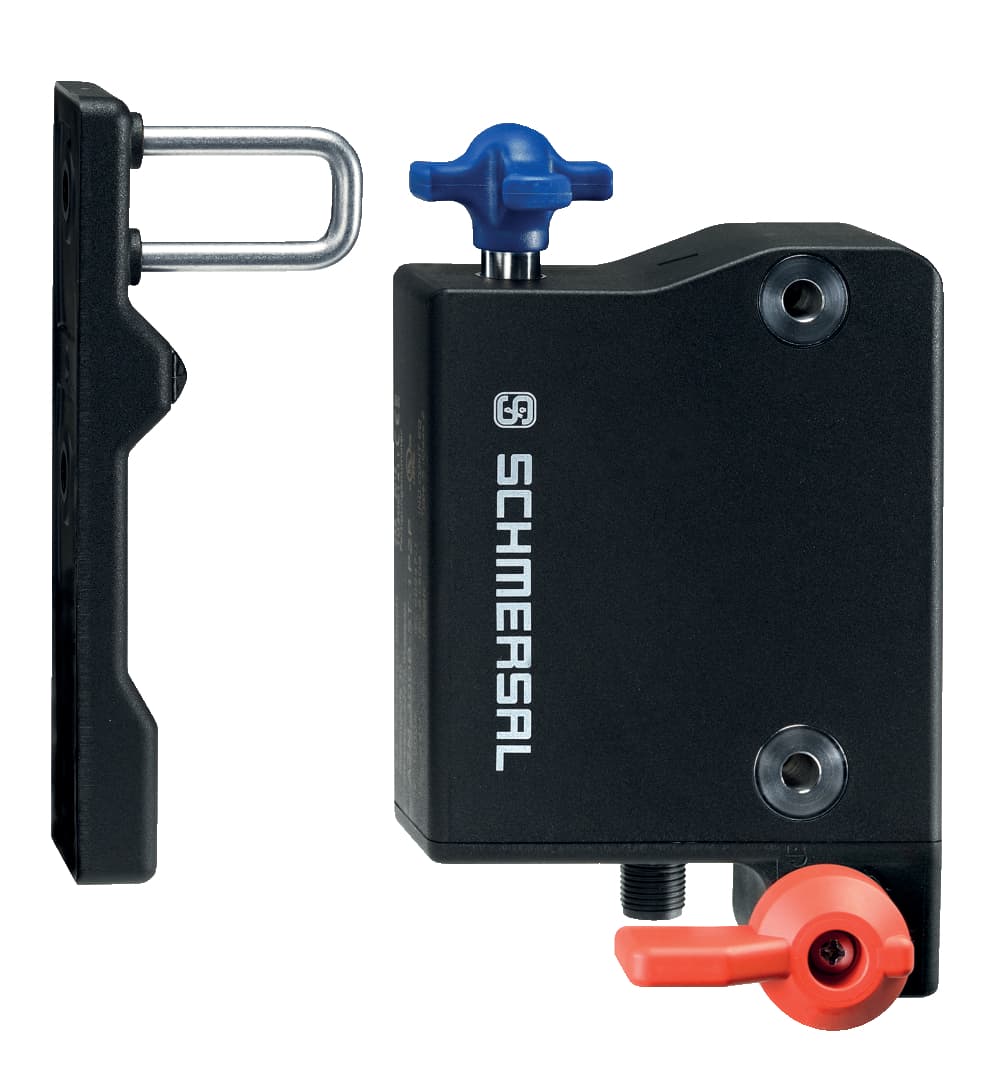

AZM300B-ST-1P2P-N Schmersal Safety Switches

Product Details

• Current, Utilisation category DC12
  0.05 A
• Test pulse interval, typical
  1000 ms
• Current leakage Ir
  0.5 mA
• Voltage drop Ud, maximum
  4 V
• Current, Utilisation category DC13
  0.05 A
• Voltage, Utilisation category DC13
  24 VDC
• Voltage, Utilisation category DC12
  24 VDC
• Versions
  short-circuit proof, p-type
• Classification ZVEI CB24I, Source
  C2
• Classification ZVEI CB24I, Sink
  C1, C2
• Test pulse interval, minimum
  100 ms
• Test pulse duration, maximum
  0.5 ms
• Duty cycle solenoid
  100 %
• Current consumption at 24V
  5 mA
• Switching frequency, maximum
  0.5 Hz
• Current consumption with solenoid ON, peak
  350 mA / 200 ms
• External wiring and device fuse rating
  2 A gG
• No-load supply current I0
  100 mA
• Notes (Power supply, general)
  stabilised PELV power supply
• Switching thresholds
  −3 V … 5 V (Low), 15 V … 30 V (High)
Current consumption with solenoid ON, average
200 mA
Required rated short-circuit current to EN 60947-5-1
100 A
Operating voltage, maximum
26.4 VDC
Operating voltage, minimum
20.4 VDC
Rated impulse withstand voltage Uimp
0.8 kV
Protection rating
III
Restistance to shock
30 g / 11 ms
Degree of pollution to IEC/EN 60664-1
3
Rated insulation voltage Ui
32 VDC
Zulässige Aufstellhöhe über NN, maximum
2,000 m
Overvoltage category
III
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Note (Relative humidity)
non-condensing, non-icing
Storage and transport temperature, maximum
+90 °C
Storage and transport temperature, minimum
-10 °C
Relative humidity, maximum
93 %
Ambient temperature, maximum
+60 °C
Height of sensor
55 mm
Ambient temperature, minimum
+0 °C
Degree of protection
IP66 to EN 60529, IP67 to EN 60529, IP69 to EN 60529
Width of sensor
87.5 mm
Terminal Connector
Connector M12, 8-pole, A-coded
Note (length of the sensor chain)
Cable length and cross-section change the voltage drop dependiing on the output current
Note (series connection of the sensors)
Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
Switch distance
2 mm
Ensured switch distance ON Sao
1 mm
Ensured switch distance OFF Sar
20 mm
Length of sensor
146 mm
Tightening torque for the fixing screws, maximum
7 Nm
Length of sensor chain, maximum
200 m
Tightening torque of the fixing screws, minimum
6 Nm
Clamping force in accordance with ISO14119 Fzh
1,150 N
Type of the fixing screws
2x M6
Latching force, adjustable, position 2
50 N
Latching force, adjustable, position 1
25 N
Clamping force, maximum Fmax
1,500 N
Mechanical life, minimum
1,000,000 Operations
Angular offset between interlocking device and actuator, maximum
2 °
Number of fail-safe digital outputs
2
Note (Mechanical lifetime)
When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
Integral System Diagnostics, status
Yes
Safety functions
Yes
Latching
Yes
Series-wiring
Yes
Short circuit detection
Yes
Emergency release
Yes
Short-circuit recognition
Yes
Response time safety outputs in case of switch-off by safety inputs, maximum
1.5 ms
Actuator monitored
Yes
Power to unlock
Yes
Response time safety outputs in case of switch-off by actuator, maximum
100 ms
Duration of risk, maximum
200 ms
Coding level according to ISO 14119
Low
Gross weight
650 g
Frequency band RFID
125 kHz
Standards
IEC 61508, IEC 60947-5-3, EN ISO 13849-1
general information
Universal coding
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Time to readiness, maximum
5,000 ms
Transmit power, maximum
-6 dB/m
Active principle
RFID
