30012ET3GKD586/7-W22 WEG AC Motors
Product Details
- Number of Poles 6 Pole
- Voltage 460 V
- Output Rating 300 HP
- Rated Speed 1193 rpm
- Flange Type Without
- L. R. Amperes 2124 A
- Locked rotor time 54s (cold) 30s (hot)
- Starting Method Direct On Line
- Number of poles 6
- Frequency 60 Hz
- Moment of inertia (J) 278 sq.ft.lb
- Noise level² 77.0 dB(A)
- Rated current 360 A
- LRC 5.9x(Code G)
- Ambient temperature -20°C to +40°C
- Synchronous speed 1200 rpm
- Rated voltage 460 V
- Insulation Class F
- Mounting F-1
- Terminal box¹ Left position
- Rated speed 1193 rpm
- Breakdown torque 250 %
- Degree of Protection IP55
- Output rating 300 HP
- Number of Poles 6
- Locked rotor torque 220 %
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Frame 586/7T
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Flange Without
- No load current 165 A
- Design A
- Enclosure IC411 - TEFC
- Output 300 HP (220 kW)
- Service factor 1.15
- Voltage 460 V
- Slip 0.58 %
- Rated torque 1320 ft.lb
- Duty Cycle Cont.(S1)
- Approx. weight³ 3495 lb
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
30012ET3GKD586/7-W22 Related Documents
Manufacturer warranty
30012ET3GKD586/7-W22 WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

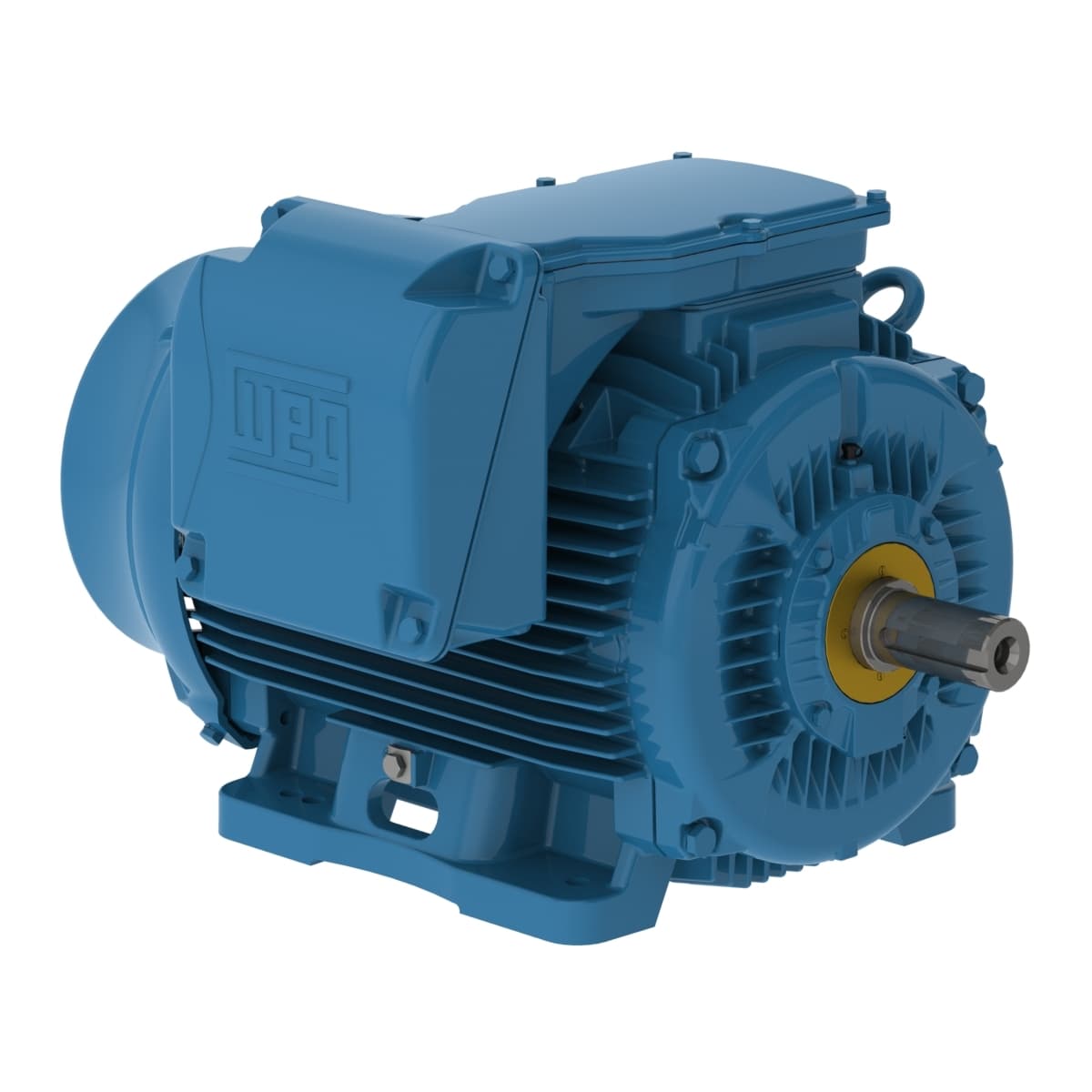

W22 NEMA Premium Efficiency 300 HP 6P 586/7T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
