30018XT3G449T WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 460 V
- Output Rating 300 HP
- Rated Speed 1785 rpm
- Flange Type Without
- Output 300 HP (220 kW)
- Service factor 1.15
- Insulation Class F
- Approx. weight³ 3244 lb
- L. R. Amperes 2870 A
- Locked rotor torque 280 %
- Moment of inertia (J) 89.6 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Mounting F-1
- Frame 449T
- Number of Poles 4
- Locked rotor time 25s (cold) 14s (hot)
- Voltage 460 V
- Rated speed 1785 rpm
- Breakdown torque 280 %
- Ambient temperature -20°C to +40°C
- Enclosure IC411 - TEFC
- Rated torque 883 ft.lb
- No load current 123 A
- Noise level² 80.0 dB(A)
- Number of poles 4
- Rated current 338 A
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- LRC 8.5x(Code J)
- Temperature rise 80 K
- Synchronous speed 1800 rpm
- Slip 0.83 %
- Starting Method Direct On Line
- Output rating 300 HP
- Rated voltage 460 V
- Design A
- Standard NEMA MG-1
- Flange Without
- Frequency 60 Hz
- Degree of Protection IP55
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
30018XT3G449T Related Documents
Manufacturer warranty
30018XT3G449T WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

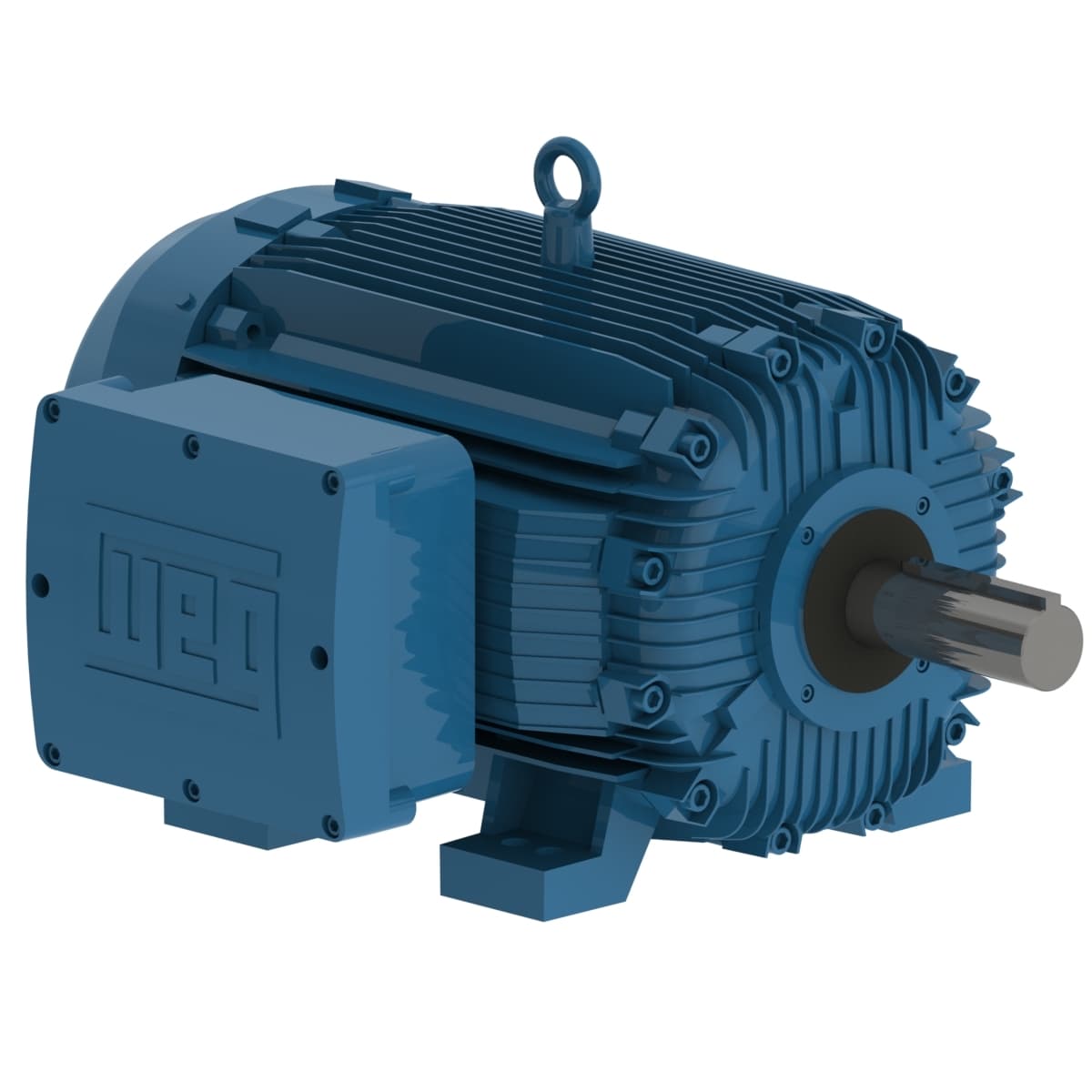

W21 Explosion-proof Motor NEMA Premium Efficiency 300 HP 4P 449T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
