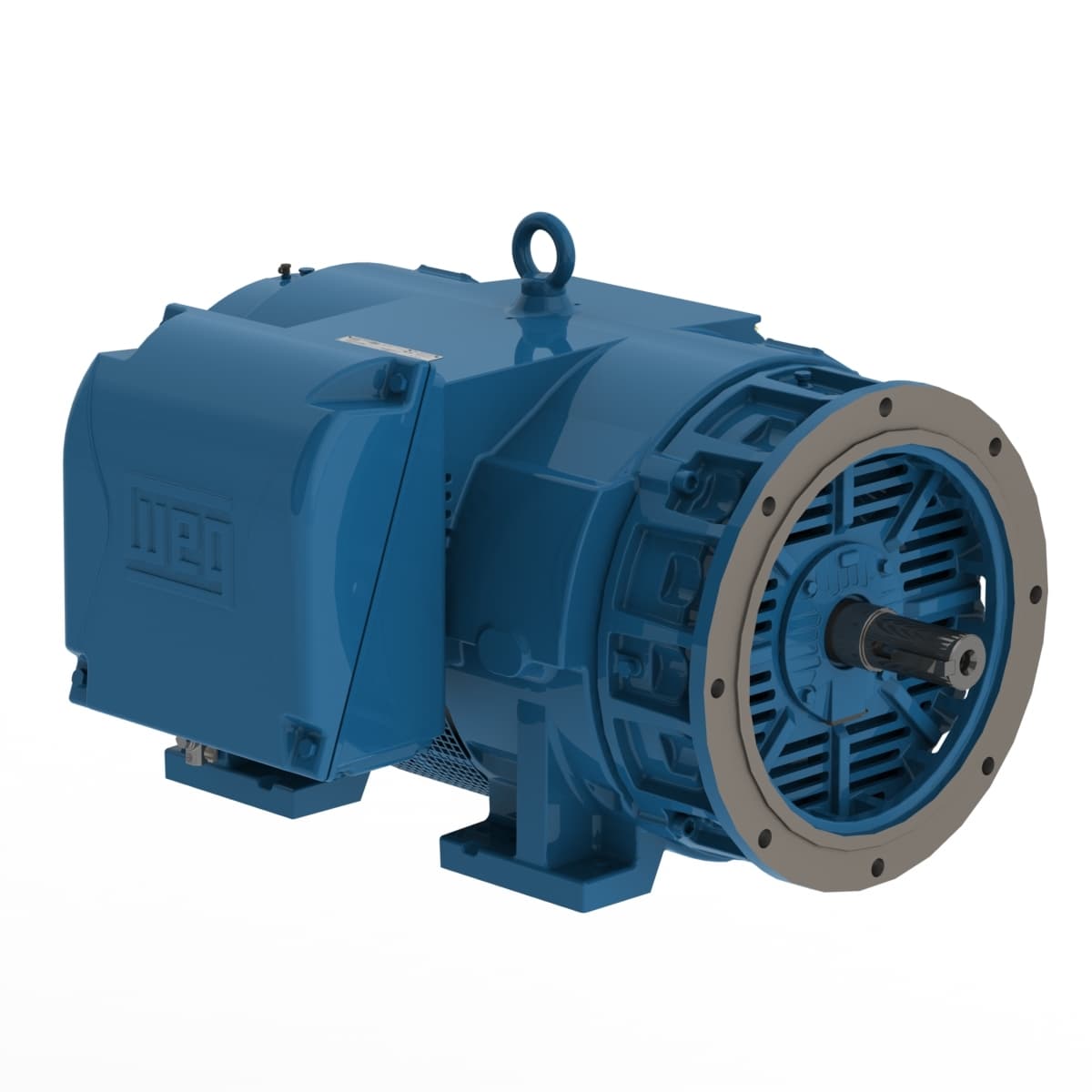

30018OT3H447/9TSD-W4 WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 575 V
- Output Rating 300 HP
- Rated Speed 1780 rpm
- Flange Type D
- Rated current 271 A
- Rated torque 885 ft.lb
- Duty Cycle Cont.(S1)
- Voltage 575 V
- Frequency 60 Hz
- Breakdown torque 229 %
- Service factor 1.15
- Standard NEMA MG-1
- Rated voltage 575 V
- Design B
- Temperature rise 80 K
- Number of poles 4
- Rated speed 1780 rpm
- Locked rotor torque 220 %
- Ambient temperature -20°C to +40°C
- Approx. weight³ 1970 lb
- Slip 1.11 %
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Output rating 300 HP
- Frame 447/9TSD
- Degree of Protection IP23
- Synchronous speed 1800 rpm
- L. R. Amperes 1926 A
- Locked rotor time 28s (cold) 16s (hot)
- Starting Method Direct On Line
- Rotation¹ Both (CW and CCW)
- LRC 7.1x(Code H)
- Enclosure IC01 - ODP
- Flange D
- Output 300 HP (220 kW)
- Moment of inertia (J) 56.1 sq.ft.lb
- Mounting F-1
- Number of Poles 4
- No load current 84.0 A
- Noise level² 77.0 dB(A)
- Terminal box¹ Left position
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
