30018OT3G447/9TS-W40 WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 460 V
- Output Rating 300 HP
- Rated Speed 1780 rpm
- Flange Type Without
- Slip 1.11 %
- Locked rotor time 28s (cold) 16s (hot)
- Rotation¹ Both (CW and CCW)
- Synchronous speed 1800 rpm
- Output 300 HP (220 kW)
- Rated torque 885 ft.lb
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Rated voltage 460 V
- Breakdown torque 229 %
- Ambient temperature -20°C to +40°C
- Approx. weight³ 1952 lb
- Frequency 60 Hz
- Rated speed 1780 rpm
- Moment of inertia (J) 56.1 sq.ft.lb
- Starting Method Direct On Line
- Altitude 1000 m.a.s.l.
- Voltage 460 V
- Output rating 300 HP
- L. R. Amperes 2407 A
- Design B
- Mounting F-1
- Number of Poles 4
- No load current 105 A
- Temperature rise 80 K
- Terminal box¹ Left position
- Frame 447/9TS
- Locked rotor torque 220 %
- Degree of Protection IP23
- Flange Without
- Rated current 339 A
- Insulation Class F
- Enclosure IC01 - ODP
- Number of poles 4
- LRC 7.1x(Code H)
- Service factor 1.15
- Noise level² 77.0 dB(A)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
30018OT3G447/9TS-W40 Related Documents
Manufacturer warranty
30018OT3G447/9TS-W40 WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

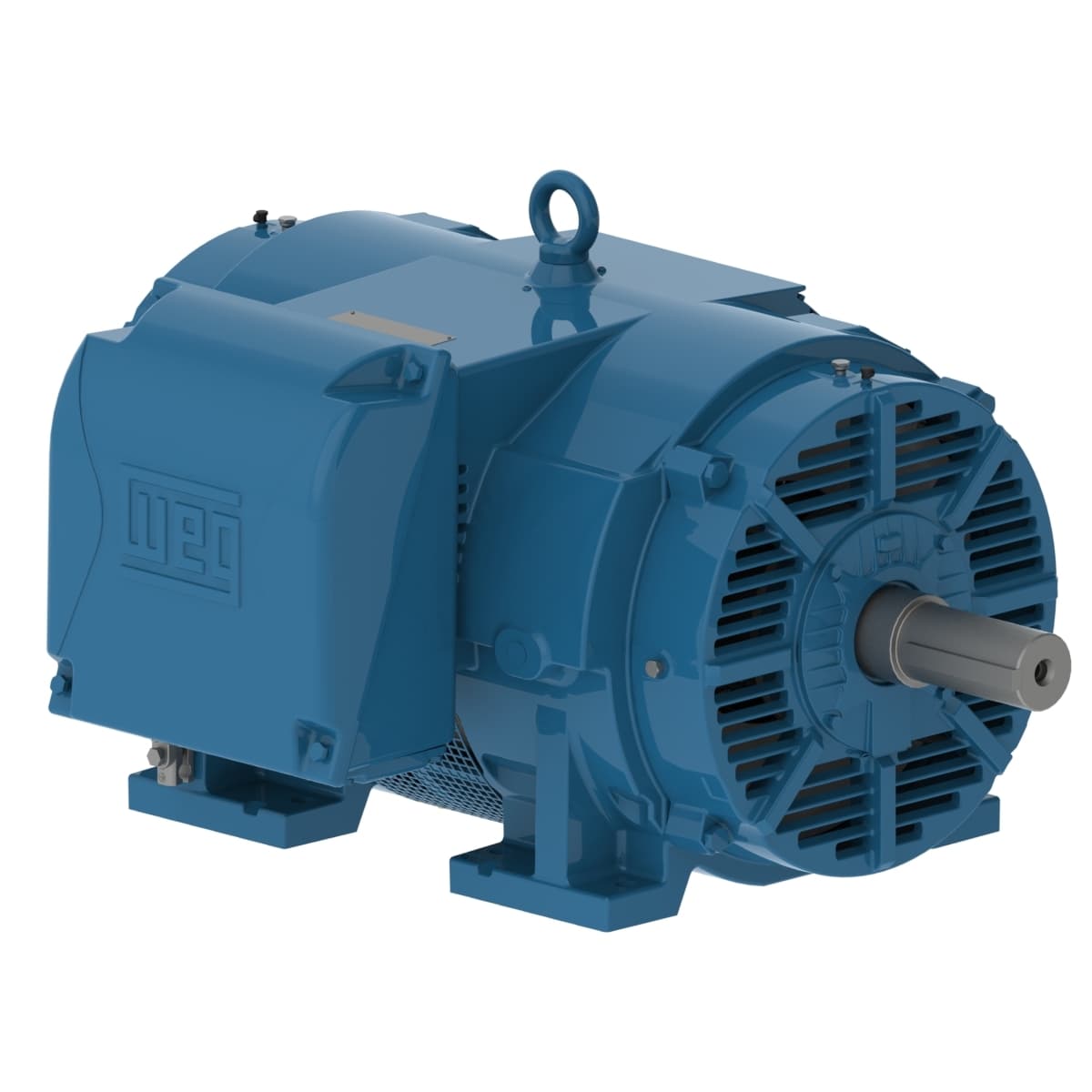

W40 NEMA Premium Efficiency 300 HP 4P 447/9TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
