77210 SL001 Alpha Wire Electronic Components

Name: 77210 SL001
Brand: Alpha Wire

77210 SL001 on Advantage Electric Supply

Part#:77210 SL001

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

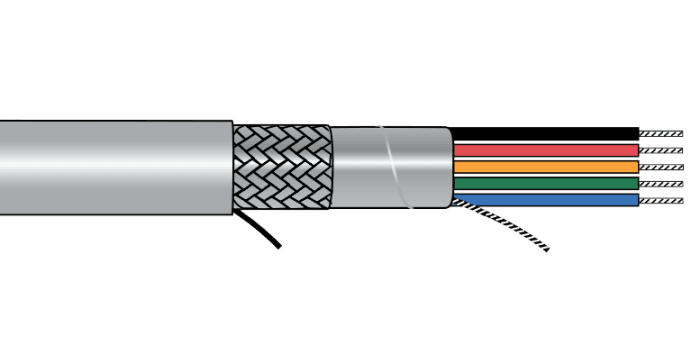

Alpha EcoCable® SupraShield Multiconductor Cable - 20 AWG 9 Conductor - Slate - 600V - 1000 ft

Product Details

MANUFACTURER PART NUMBER
77210 SL001
STANDARDS/APPROVALS
CE Approved VW-1 UL AWM 21510
VOLTAGE
600V
TEMPERATURE
-50°C to +105°C
NOMINAL OD (MM)
7.8232
CONDUCTOR STRANDING
Stranded
JACKET MATERIAL
mPPE
NOMINAL OD (IN)
0.308
JACKET COLOR
Gray
SERIES
EcoCable
SHIELDING
SupraShield
NUMBER OF CONDUCTORS
9
CONDUCTOR MATERIAL
Tinned copper
AWG/GAUGE
20

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

77210 SL001 Related Documents

Datasheet.pdf

Manufacturer warranty
