77211 SL001 Alpha Wire Electronic Components

Name: 77211 SL001
Brand: Alpha Wire

77211 SL001 on Advantage Electric Supply

Part#:77211 SL001

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

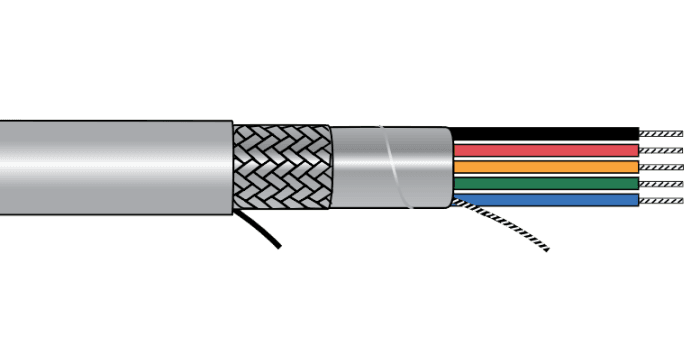

Alpha EcoCable® SupraShield Multiconductor Cable - 20 AWG 12 Conductor - Slate - 600V - 1000 ft

Product Details

MANUFACTURER PART NUMBER
77211 SL001
NOMINAL OD (MM)
8.5598
STANDARDS/APPROVALS
CE Approved VW-1 UL AWM 21510
TEMPERATURE
-50°C to +105°C
JACKET COLOR
Gray
NUMBER OF CONDUCTORS
12
VOLTAGE
600V
JACKET MATERIAL
mPPE
CONDUCTOR MATERIAL
Tinned copper
NOMINAL OD (IN)
0.337
SERIES
EcoCable
CONDUCTOR STRANDING
Stranded
SHIELDING
SupraShield
AWG/GAUGE
20

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

77211 SL001 Related Documents

Datasheet.pdf

Manufacturer warranty

77211 SL001 Alpha Wire
