77217 SL001 Alpha Wire Electronic Components

Name: 77217 SL001
Brand: Alpha Wire

77217 SL001 on Advantage Electric Supply

Part#:77217 SL001

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

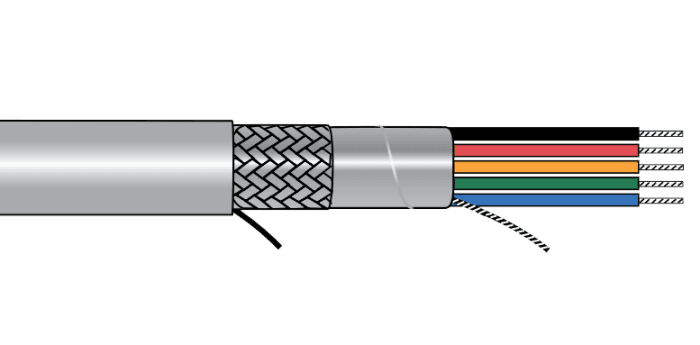

Alpha EcoCable® SupraShield Multiconductor Cable - 18 AWG 7 Conductor - Slate - 600V - 1000 ft

Product Details

STANDARDS/APPROVALS
CE Approved VW-1 UL AWM 21510
MANUFACTURER PART NUMBER
77217 SL001
TEMPERATURE
-50°C to +105°C
VOLTAGE
600V
NOMINAL OD (MM)
7.5946
NOMINAL OD (IN)
0.299
SERIES
EcoCable
NUMBER OF CONDUCTORS
7
JACKET COLOR
Gray
AWG/GAUGE
18
CONDUCTOR STRANDING
Stranded
SHIELDING
SupraShield
JACKET MATERIAL
mPPE
CONDUCTOR MATERIAL
Tinned copper

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
