77218 SL005 Alpha Wire Electronic Components

Name: 77218 SL005
Brand: Alpha Wire

77218 SL005 on Advantage Electric Supply

Part#:77218 SL005

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

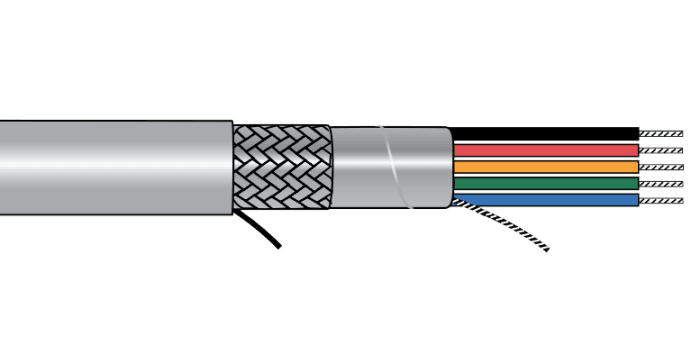

Alpha EcoCable® SupraShield Multiconductor Cable - 18 AWG 9 Conductor - Slate - 600V - 100 ft

Product Details

STANDARDS/APPROVALS
CE Approved VW-1 UL AWM 21510
TEMPERATURE
-50°C to +105°C
MANUFACTURER PART NUMBER
77218 SL005
VOLTAGE
600V
NOMINAL OD (MM)
8.6614
NOMINAL OD (IN)
0.341
NUMBER OF CONDUCTORS
9
SHIELDING
SupraShield
CONDUCTOR STRANDING
Stranded
JACKET MATERIAL
mPPE
CONDUCTOR MATERIAL
Tinned copper
JACKET COLOR
Gray
AWG/GAUGE
18
SERIES
EcoCable

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

77218 SL005 Related Documents

Datasheet.pdf

Manufacturer warranty
