77218 SL001 Alpha Wire Electronic Components

Name: 77218 SL001
Brand: Alpha Wire

77218 SL001 on Advantage Electric Supply

Part#:77218 SL001

Manufacturer:Alpha Wire

Category:Electronic Components

Product Lifecycle:Active

Product description

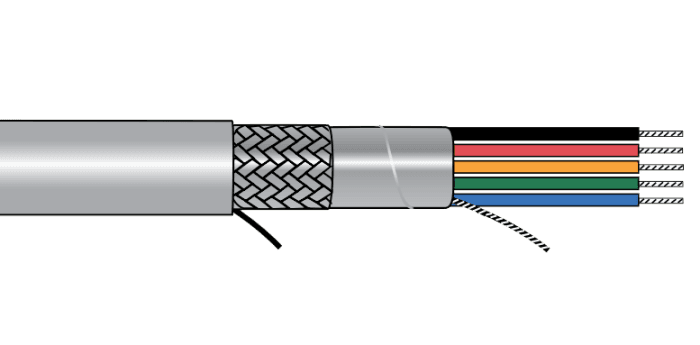

Alpha EcoCable® SupraShield Multiconductor Cable - 18 AWG 9 Conductor - Slate - 600V - 1000 ft

Product Details

STANDARDS/APPROVALS
CE Approved VW-1 UL AWM 21510
TEMPERATURE
-50°C to +105°C
MANUFACTURER PART NUMBER
77218 SL001
VOLTAGE
600V
SHIELDING
SupraShield
CONDUCTOR MATERIAL
Tinned copper
NOMINAL OD (MM)
8.6614
SERIES
EcoCable
NOMINAL OD (IN)
0.341
JACKET MATERIAL
mPPE
JACKET COLOR
Gray
CONDUCTOR STRANDING
Stranded
NUMBER OF CONDUCTORS
9
AWG/GAUGE
18

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

77218 SL001 Related Documents

Datasheet.pdf

Manufacturer warranty

77218 SL001 Alpha Wire
