IE5392 ifm Electronic Electronic Components
Part#:IE5392
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

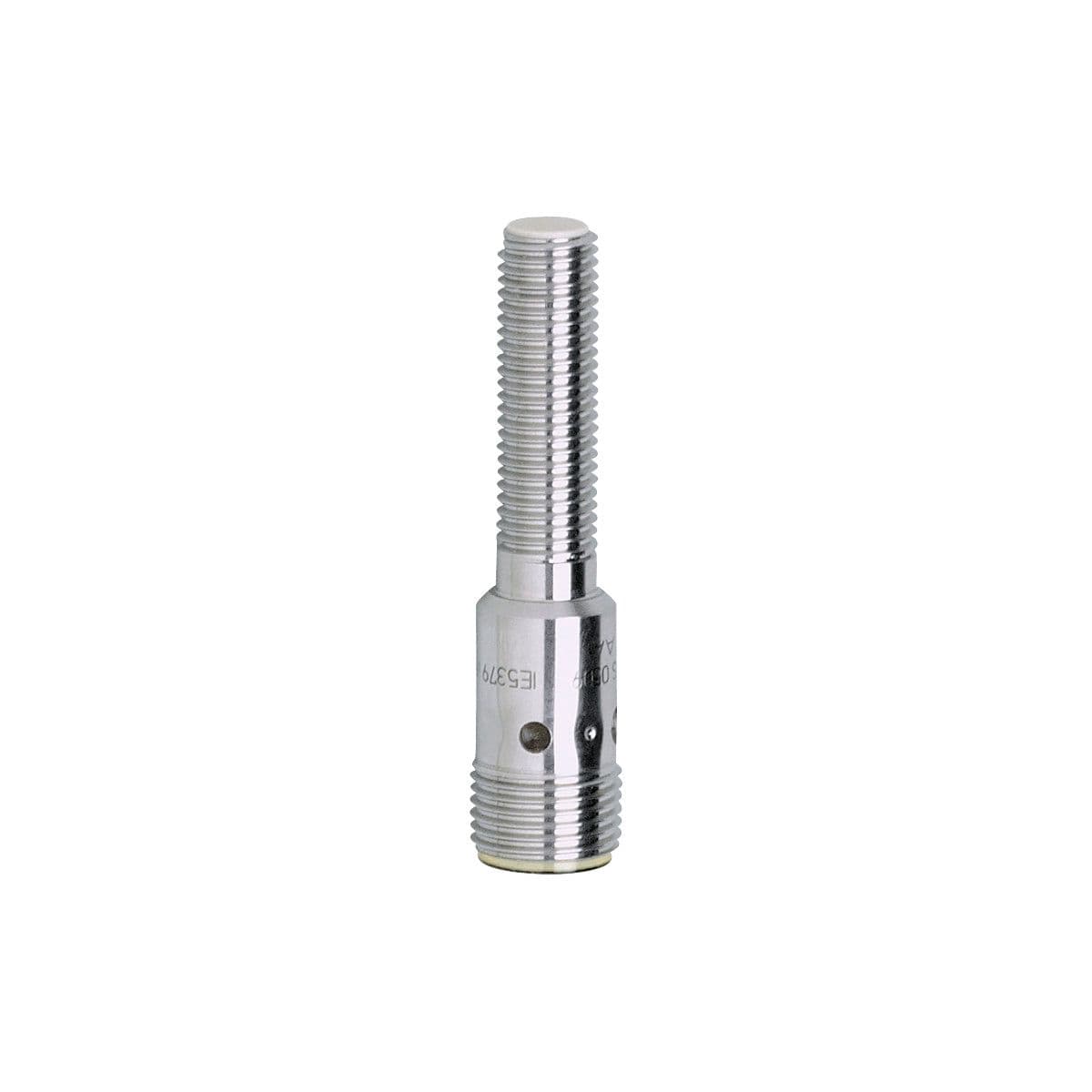

Inductive sensor, Robust stainless steel housing for use in the food and beverage industry, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 2, Housing: Threaded type, Dimensions [mm]: M8 x 1 / L = 70
Product Details
- Electrical design PNP
- Max. voltage drop switching output DC [V] 2.5
- Housing Threaded type
- Operating voltage [V] 10...36 DC
- Protection class III
- Short-circuit protection yes
- Dimensions [mm] M8 x 1 / L = 70
- Switching frequency DC [Hz] 1000
- Sensing range [mm] 2
- Permanent current rating of switching output DC [mA] 100
- Reverse polarity protection yes
- Output function normally open
- Current consumption [mA] < 15
- Overload protection yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
IE5392 ifm Electronic
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
Compare IE5392 with other Electronic Components products
Electrical design
Max. voltage drop switchi...
Housing
Operating voltage [V]
Protection class
Short-circuit protection
Dimensions [mm]
Switching frequency DC [H...
Sensing range [mm]
Permanent current rating ...
Selected product
IE5392
ifm Electronic
Inductive sensor, Robust stainless steel housing for use in the food and beverage industry, Electric...
Electrical designPNP
Max. voltage drop switching output DC [V]2.5
HousingThreaded type
Operating voltage [V]10...36 DC
Protection classIII
Short-circuit protectionyes
Dimensions [mm]M8 x 1 / L = 70
Switching frequency DC [Hz]1000
Sensing range [mm]2
Permanent current rating of switching output DC [mA]100
RH2B-ULAC24V
Idec
Relay; 24 VAC; Midget; 153 Ohms; 0.819 in. L x 1.07 in. W x 1.39 in. H; DPDT
Electrical design-
Max. voltage drop switching output DC [V]-
Housing-
Operating voltage [V]-
Protection class-
Short-circuit protection-
Dimensions [mm]-
Switching frequency DC [Hz]-
Sensing range [mm]-
Permanent current rating of switching output DC [mA]-
RY2S-UDC24V
Idec
Relay; 3 A; 24 VDC; 24 VDC; DPDT; 1.40 in. L x 0.552 in. W x 1.07 in. H; 32 mA
Electrical design-
Max. voltage drop switching output DC [V]-
Housing-
Operating voltage [V]-
Protection class-
Short-circuit protection-
Dimensions [mm]-
Switching frequency DC [Hz]-
Sensing range [mm]-
Permanent current rating of switching output DC [mA]-
About the manufacturer
Advantage Electric Supply is an authorized ifm Electronic distributor, bringing you innovative industrial automation solutions from a trusted manufacturer. ifm Electronic specializes in developing cutting-edge sensors and control systems that are vital for optimizing industrial processes across a wide spectrum of industries, including automotive, food and beverage, chemical, and more. Their compre...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.
Inductive sensor, Robust stainless steel housing for use in the food and beverage industry, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 2, Housing: Threaded type, Dimensions [mm]: M8 x 1 / L = 70
