IE5399 ifm Electronic Electronic Components
Part#:IE5399
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

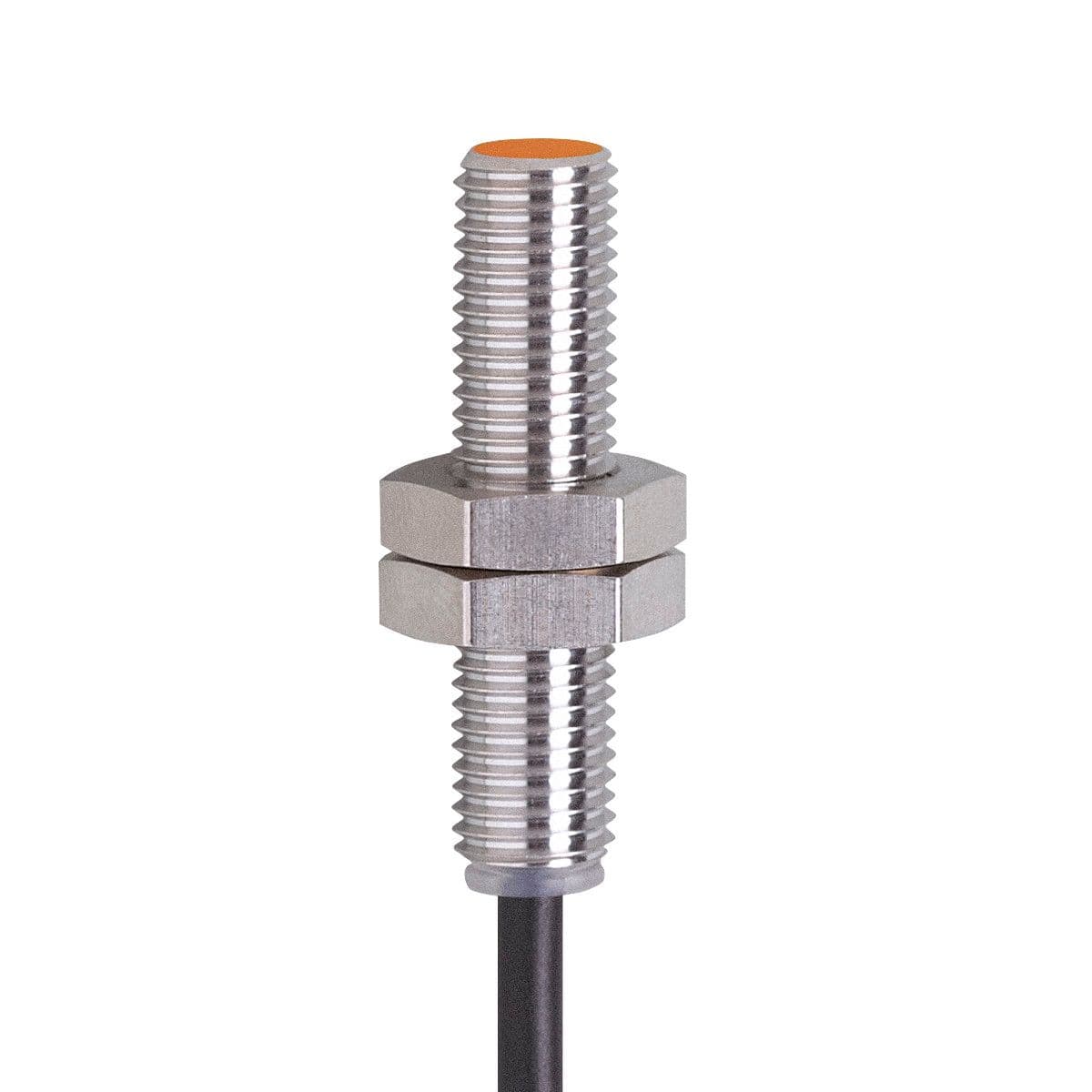

Inductive sensor, Particularly short housing, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 2, Housing: Threaded type, Dimensions [mm]: M8 x 1 / L = 27
Product Details
- Operating voltage [V] 10...30 DC; (to PELV)
- Protection class III
- Overload protection yes
- Housing Threaded type
- Dimensions [mm] M8 x 1 / L = 27
- Max. voltage drop switching output DC [V] 2.5
- Output function normally open
- Permanent current rating of switching output DC [mA] 100
- Current consumption [mA] < 15
- Short-circuit protection yes
- Reverse polarity protection yes
- Electrical design PNP
- Type of short-circuit protection yes (non-latching)
- Sensing range [mm] 2
- Switching frequency DC [Hz] 1500
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
IE5399 Related Documents
Manufacturer warranty
IE5399 ifm Electronic
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
Compare IE5399 with other Electronic Components products
Operating voltage [V]
Protection class
Overload protection
Housing
Dimensions [mm]
Max. voltage drop switchi...
Output function
Permanent current rating ...
Current consumption [mA]
Short-circuit protection
Selected product
IE5399
ifm Electronic
Inductive sensor, Particularly short housing, Electrical design: PNP, Output function: normally open...
Operating voltage [V]10...30 DC; (to PELV)
Protection classIII
Overload protectionyes
HousingThreaded type
Dimensions [mm]M8 x 1 / L = 27
Max. voltage drop switching output DC [V]2.5
Output functionnormally open
Permanent current rating of switching output DC [mA]100
Current consumption [mA]< 15
Short-circuit protectionyes
RH2B-ULAC24V
Idec
Relay; 24 VAC; Midget; 153 Ohms; 0.819 in. L x 1.07 in. W x 1.39 in. H; DPDT
Operating voltage [V]-
Protection class-
Overload protection-
Housing-
Dimensions [mm]-
Max. voltage drop switching output DC [V]-
Output function-
Permanent current rating of switching output DC [mA]-
Current consumption [mA]-
Short-circuit protection-
RY2S-UDC24V
Idec
Relay; 3 A; 24 VDC; 24 VDC; DPDT; 1.40 in. L x 0.552 in. W x 1.07 in. H; 32 mA
Operating voltage [V]-
Protection class-
Overload protection-
Housing-
Dimensions [mm]-
Max. voltage drop switching output DC [V]-
Output function-
Permanent current rating of switching output DC [mA]-
Current consumption [mA]-
Short-circuit protection-
About the manufacturer
Advantage Electric Supply is an authorized ifm Electronic distributor, bringing you innovative industrial automation solutions from a trusted manufacturer. ifm Electronic specializes in developing cutting-edge sensors and control systems that are vital for optimizing industrial processes across a wide spectrum of industries, including automotive, food and beverage, chemical, and more. Their compre...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.
Inductive sensor, Particularly short housing, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 2, Housing: Threaded type, Dimensions [mm]: M8 x 1 / L = 27
