IF5908 ifm Electronic Electronic Components
Part#:IF5908
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

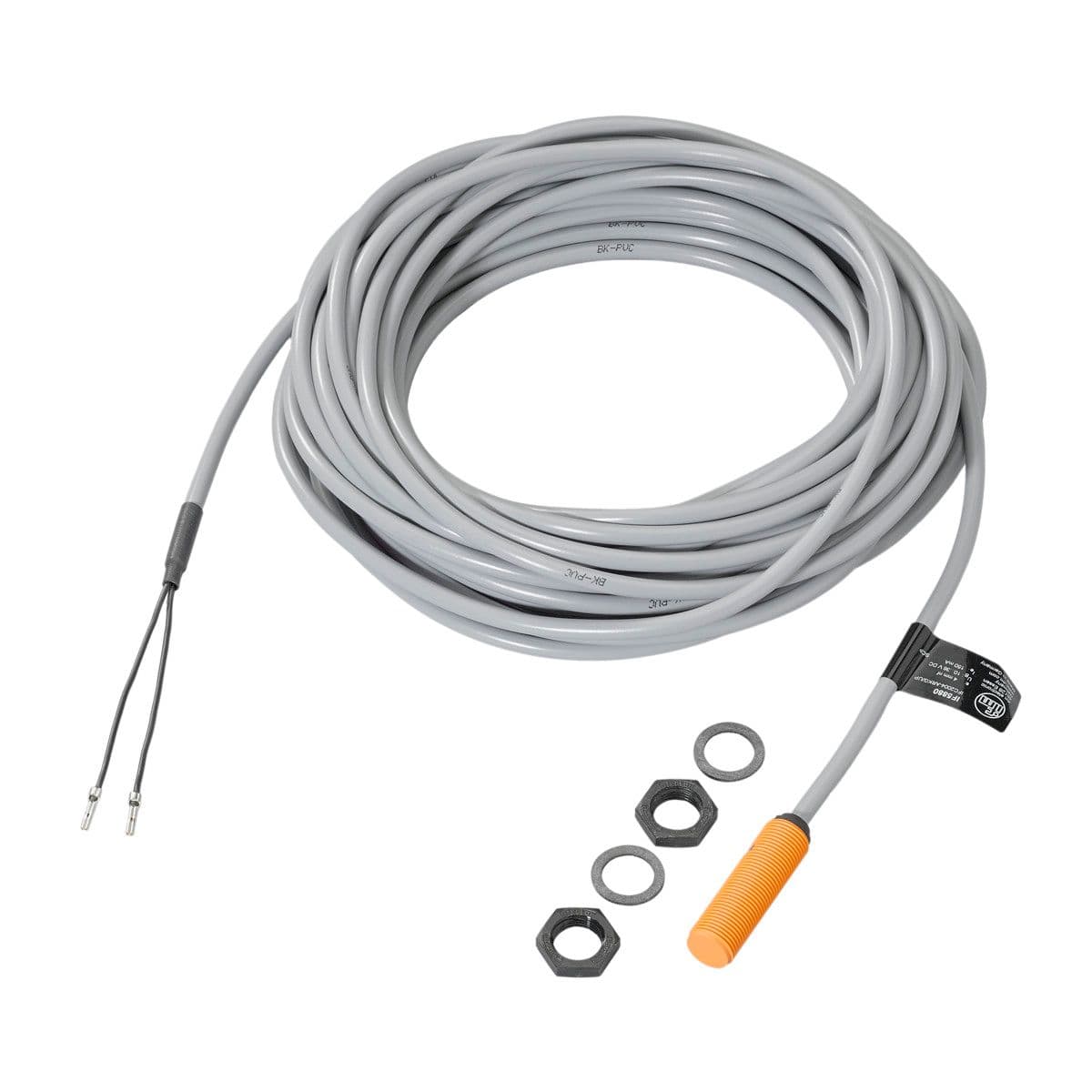

Inductive sensor, Particularly short housing, Electrical design: PNP/NPN, Output function: normally open, Sensing range [mm]: 4, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 40
Product Details
- Protection class II
- Max. leakage current [mA] 0.6
- Reverse polarity protection yes
- Housing Threaded type
- Short-circuit protection yes
- Electrical design PNP/NPN
- Overload protection yes
- Sensing range [mm] 4
- Max. voltage drop switching output DC [V] 4.6
- Permanent current rating of switching output DC [mA] 150
- Minimum load current [mA] 4
- Type of short-circuit protection yes (non-latching)
- Operating voltage [V] 10...36 DC
- Output function normally open
- Switching frequency DC [Hz] 1500
- Dimensions [mm] M12 x 1 / L = 40
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
IF5908 ifm Electronic
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
Compare IF5908 with other Electronic Components products
Protection class
Max. leakage current [mA]
Reverse polarity protecti...
Housing
Short-circuit protection
Electrical design
Overload protection
Sensing range [mm]
Max. voltage drop switchi...
Permanent current rating ...
Selected product
IF5908
ifm Electronic
Inductive sensor, Particularly short housing, Electrical design: PNP/NPN, Output function: normally ...
Protection classII
Max. leakage current [mA]0.6
Reverse polarity protectionyes
HousingThreaded type
Short-circuit protectionyes
Electrical designPNP/NPN
Overload protectionyes
Sensing range [mm]4
Max. voltage drop switching output DC [V]4.6
Permanent current rating of switching output DC [mA]150
CKM-03
Mencom
Standard, CK series, Male Rectangular Insert, size 21.21, 4 pin, 10 amp, Screw, Silver Plated Contac...
Protection class-
Max. leakage current [mA]-
Reverse polarity protection-
Housing-
Short-circuit protection-
Electrical design-
Overload protection-
Sensing range [mm]-
Max. voltage drop switching output DC [V]-
Permanent current rating of switching output DC [mA]-
MIN-4FR-1-18
Mencom
MIN Size I, Receptacle, 4 Pole, Female Straight, 1 Ft, 18awg, 5.5A, .5-NPT, Front Mount, Aluminum Cl...
Protection class-
Max. leakage current [mA]-
Reverse polarity protection-
Housing-
Short-circuit protection-
Electrical design-
Overload protection-
Sensing range [mm]-
Max. voltage drop switching output DC [V]-
Permanent current rating of switching output DC [mA]-
About the manufacturer
Advantage Electric Supply is an authorized ifm Electronic distributor, bringing you innovative industrial automation solutions from a trusted manufacturer. ifm Electronic specializes in developing cutting-edge sensors and control systems that are vital for optimizing industrial processes across a wide spectrum of industries, including automotive, food and beverage, chemical, and more. Their compre...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.
Inductive sensor, Particularly short housing, Electrical design: PNP/NPN, Output function: normally open, Sensing range [mm]: 4, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 40
