IF5917 ifm Electronic Electronic Components
Part#:IF5917
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

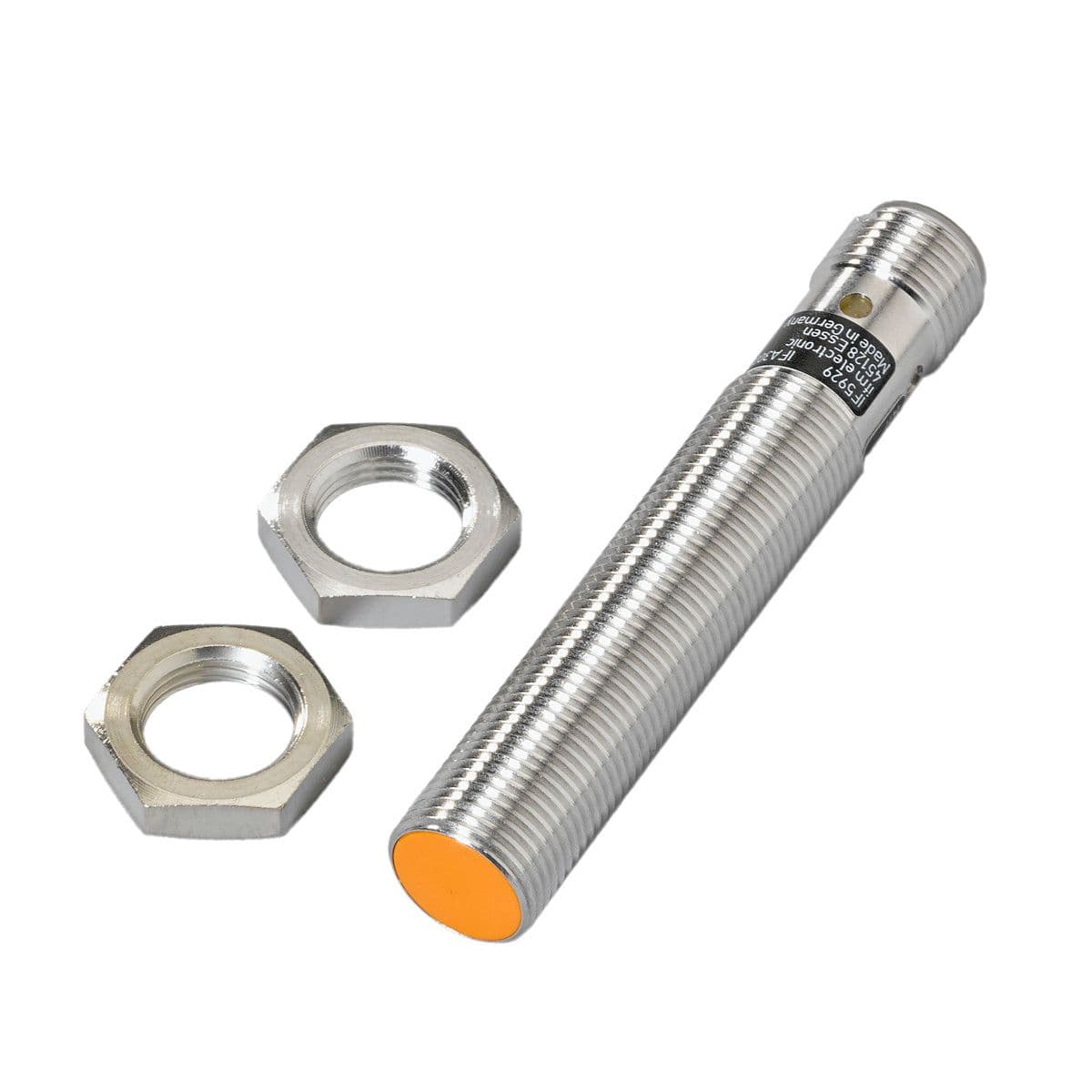

Inductive sensor, For use in machine tools and metalworking, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 4, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 70, System: Increased sensing range
Product Details
- System Increased sensing range
- Reverse polarity protection yes
- Current consumption [mA] 15; (24 V)
- Short-circuit protection yes
- Housing Threaded type
- Max. voltage drop switching output DC [V] 2.5
- Protection class II
- Electrical design PNP
- Output function normally open
- Overload protection yes
- Sensing range [mm] 4
- Type of short-circuit protection yes (non-latching)
- Operating voltage [V] 10...36 DC
- Permanent current rating of switching output DC [mA] 250
- Dimensions [mm] M12 x 1 / L = 70
- Switching frequency DC [Hz] 250
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
