IF5913 ifm Electronic Electronic Components

Name: IF5913
Brand: ifm Electronic

Part#:IF5913

Category:Electronic Components

Product Lifecycle:Active

Product description

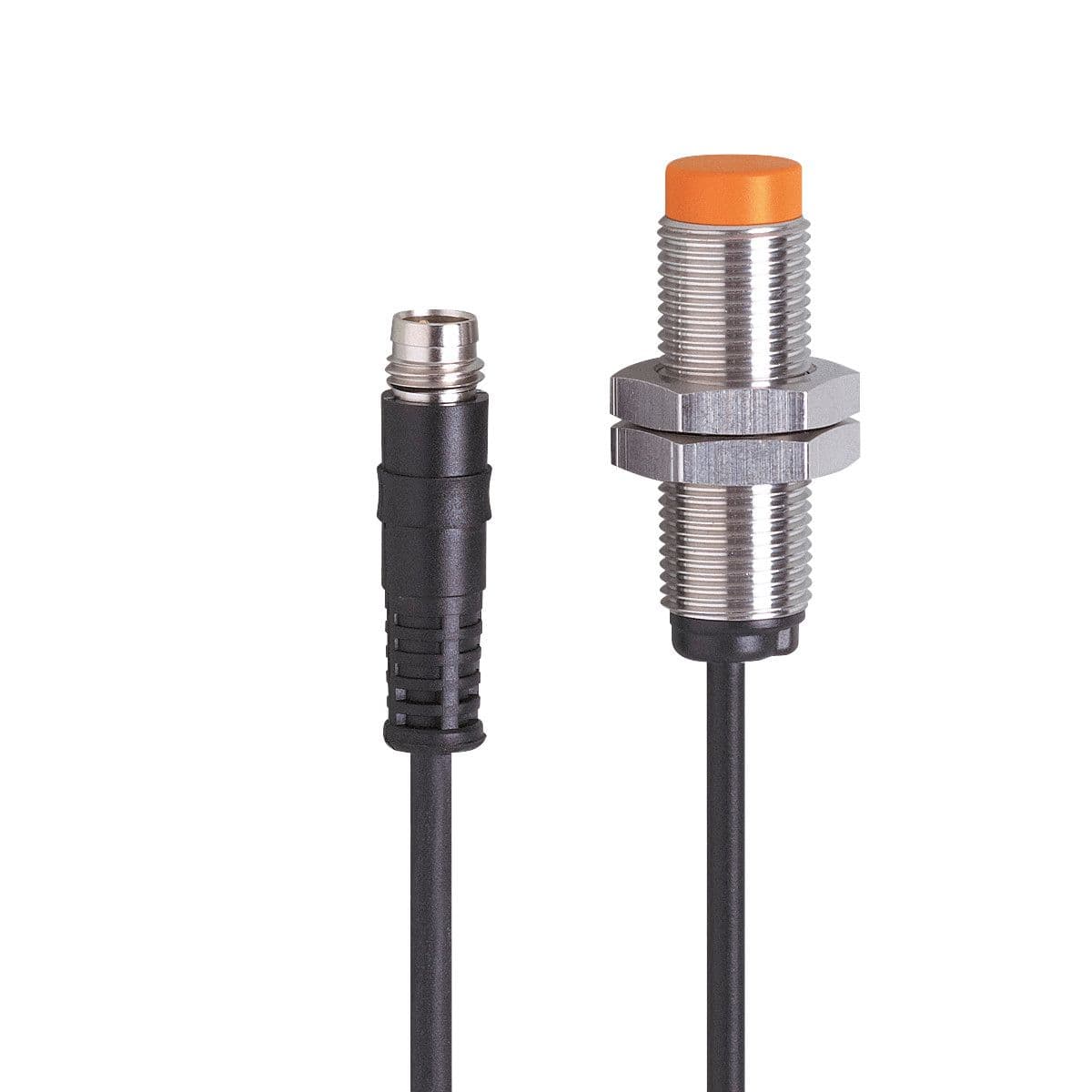

Inductive sensor, Particularly short housing, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 5.5, Housing: Threaded type, Dimensions [mm]: M12 x 1

Product Details

Short-circuit protection
yes
Operating voltage [V]
10...36 DC
Protection class
III
Overload protection
yes
Current consumption [mA]
15; (24 V)
Type of short-circuit protection
yes (non-latching)
Dimensions [mm]
M12 x 1
Switching frequency DC [Hz]
800
Max. voltage drop switching output DC [V]
2.5
Output function
normally open
Housing
Threaded type
Permanent current rating of switching output DC [mA]
150
Reverse polarity protection
yes
Sensing range [mm]
5.5
Electrical design
PNP

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IF5913 Related Documents

PDF data sheet-1631071498438.pdf

Manufacturer warranty
