IF5955 ifm Electronic Electronic Components

Name: IF5955
Brand: ifm Electronic

Part#:IF5955

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

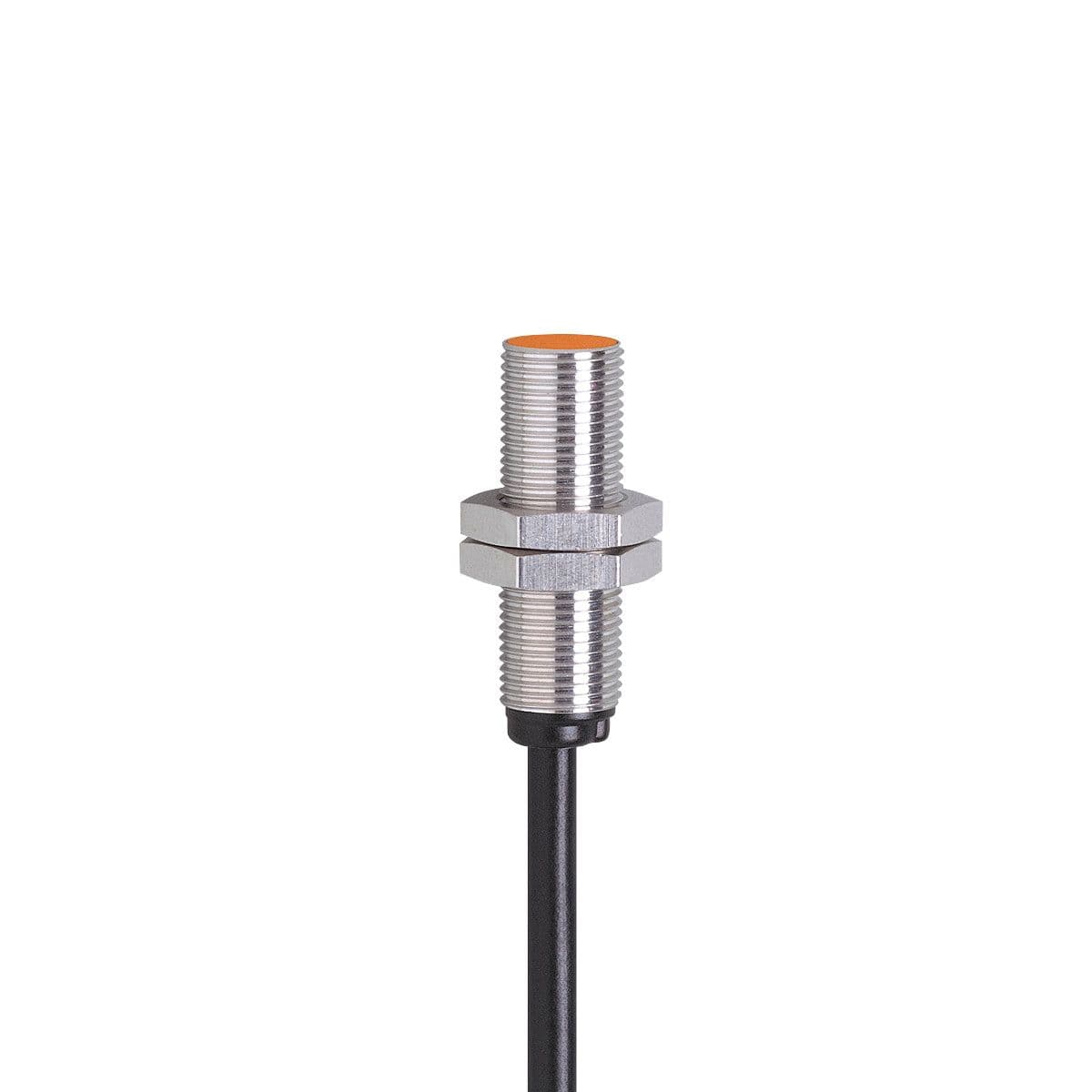

Inductive sensor, Particularly short housing for use where space is restricted, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 2, Housing: Threaded type, Dimensions [mm]: M12 x 1, System: Halogen-free

Product Details

Housing
Threaded type
Type of short-circuit protection
yes (non-latching)
Protection class
II
Switching frequency DC [Hz]
1000
Electrical design
PNP
Reverse polarity protection
yes
Output function
normally open
Sensing range [mm]
2
Short-time current rating of switching output [mA]
150
Operating voltage [V]
10...55 DC
Max. voltage drop switching output DC [V]
2.5
Current consumption [mA]
< 15
Short-circuit protection
yes
Dimensions [mm]
M12 x 1
Overload protection
yes
System
Halogen-free
Permanent current rating of switching output DC [mA]
125; (150 (...50 °C))

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
