IF5994 ifm Electronic Electronic Components
Part#:IF5994
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

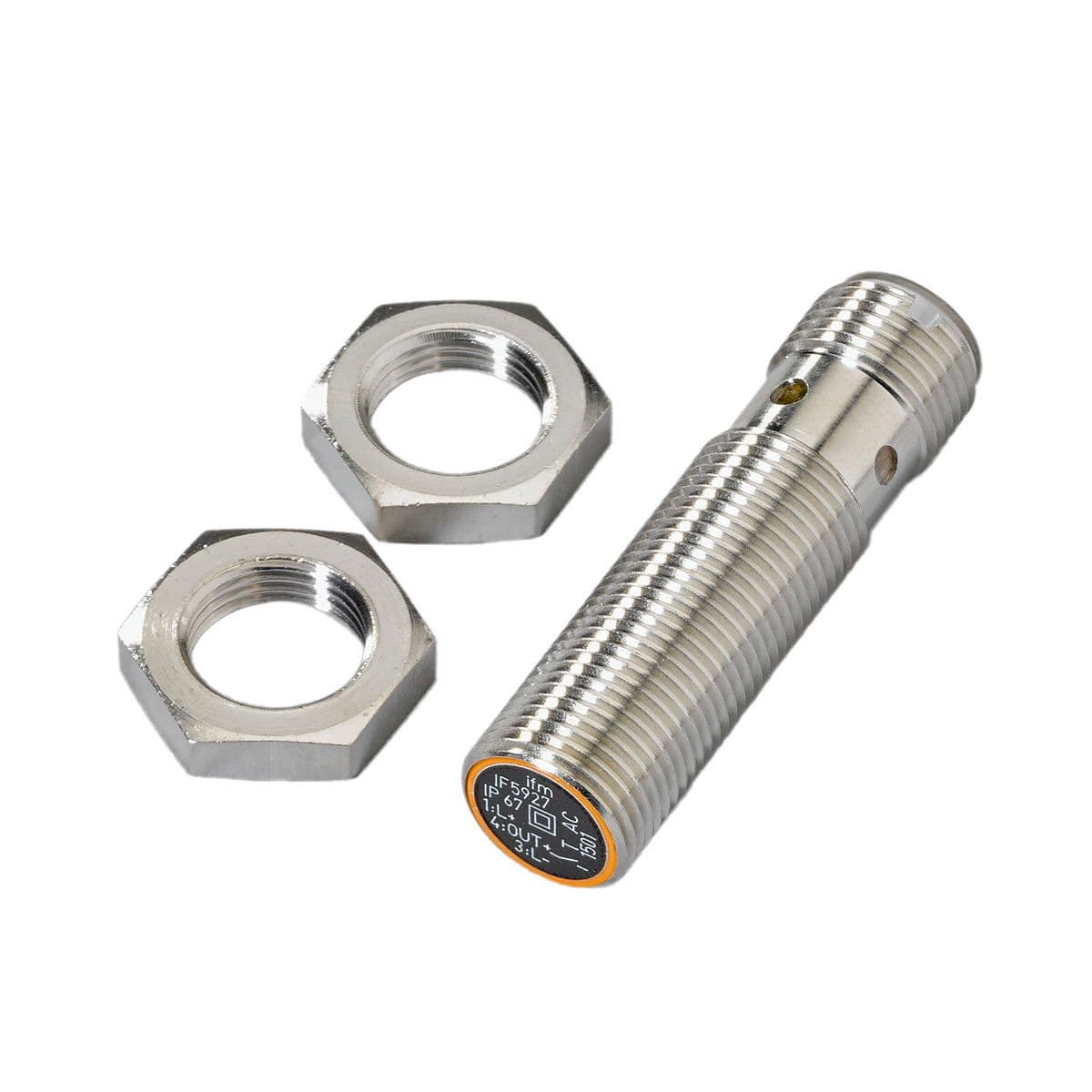

Inductive sensor, Particularly short housing for use where space is restricted, Electrical design: PNP/NPN, Output function: normally open / closed; (selectable), Sensing range [mm]: 2, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 45
Product Details
- Housing Threaded type
- Switching frequency DC [Hz] 1200
- Max. voltage drop switching output DC [V] 4.6
- Minimum load current [mA] 4
- Operating voltage [V] 10...36 DC
- Electrical design PNP/NPN
- Sensing range [mm] 2
- Overload protection yes
- Output function normally open / closed; (selectable)
- Type of short-circuit protection yes (non-latching)
- Protection class II
- Max. leakage current [mA] 0.8
- Dimensions [mm] M12 x 1 / L = 45
- Permanent current rating of switching output DC [mA] 150
- Reverse polarity protection yes
- Short-circuit protection yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
