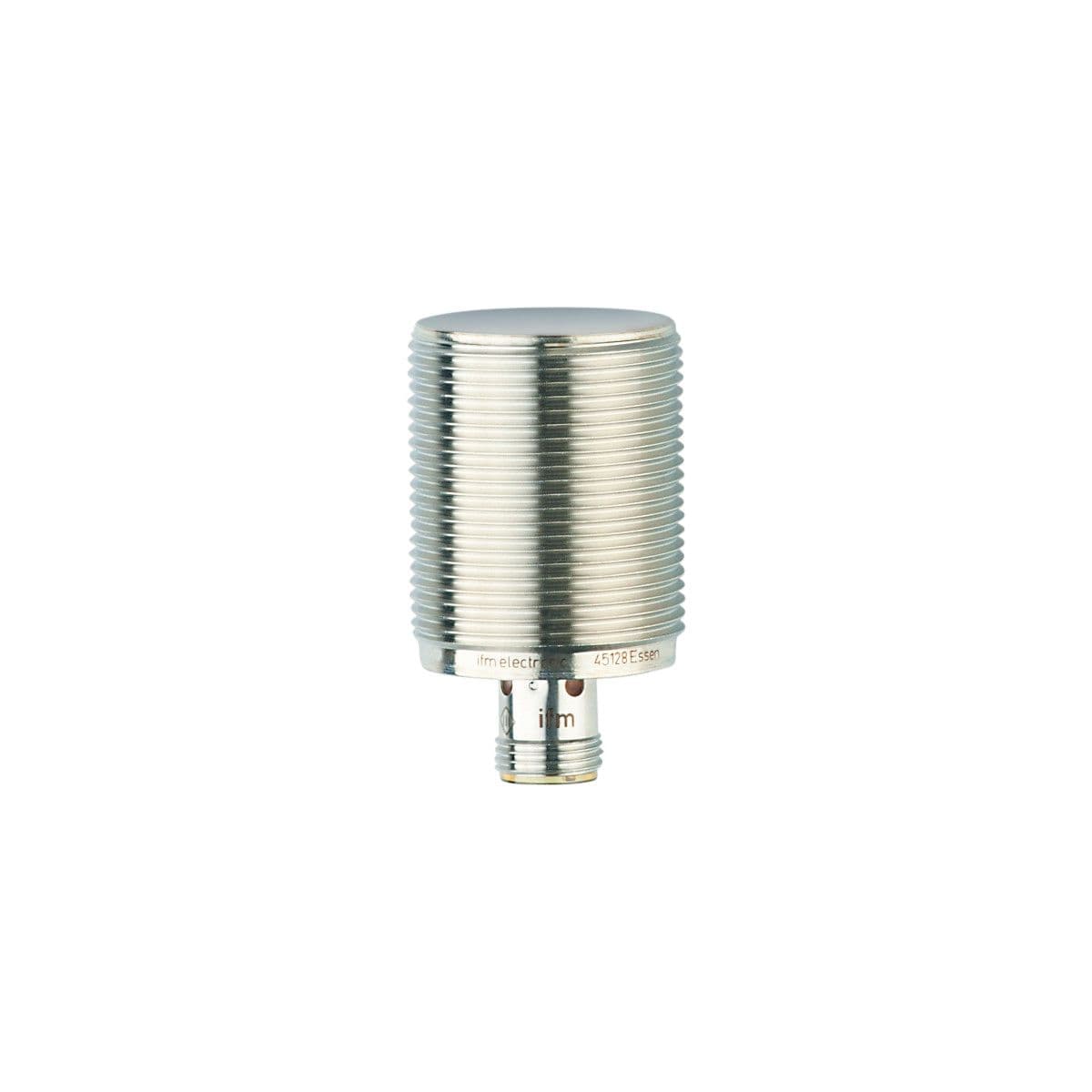

IIC233 ifm Electronic Electronic Components

Name: IIC233
Brand: ifm Electronic

Part#:IIC233

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

Inductive full-metal sensor, For use in machine tools and metalworking, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 15, Housing: Threaded type, Dimensions [mm]: M30 x 1.5 / L = 50, System: gold-plated contacts; Increased se

Product Details

Protection class
III
Output function
normally open
Switching frequency DC [Hz]
50
Sensing range [mm]
15
Max. voltage drop switching output DC [V]
2.5
System
gold-plated contacts; Increased sensing range; Full-metal housing
Electrical design
PNP
Note on pressure rating
sensing face
Current consumption [mA]
< 10
Short-circuit protection
yes
Housing
Threaded type
Reverse polarity protection
yes
Dimensions [mm]
M30 x 1.5 / L = 50
Permanent current rating of switching output DC [mA]
100
Application
Oils and coolants
Operating voltage [V]
10...30 DC
Overload protection
yes
Pressure rating [bar]
100

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IIC233 Related Documents

PDF data sheet-1631071403360.pdf CAD_DWG_100_0174.ZIP-1631071403352.zip CAD_DXF_100_0174.ZIP-1631071403350.zip CAD_SAT_100_0174.ZIP-1631071403345.zip CAD_STP_100_0174.ZIP-1631071403355.zip
