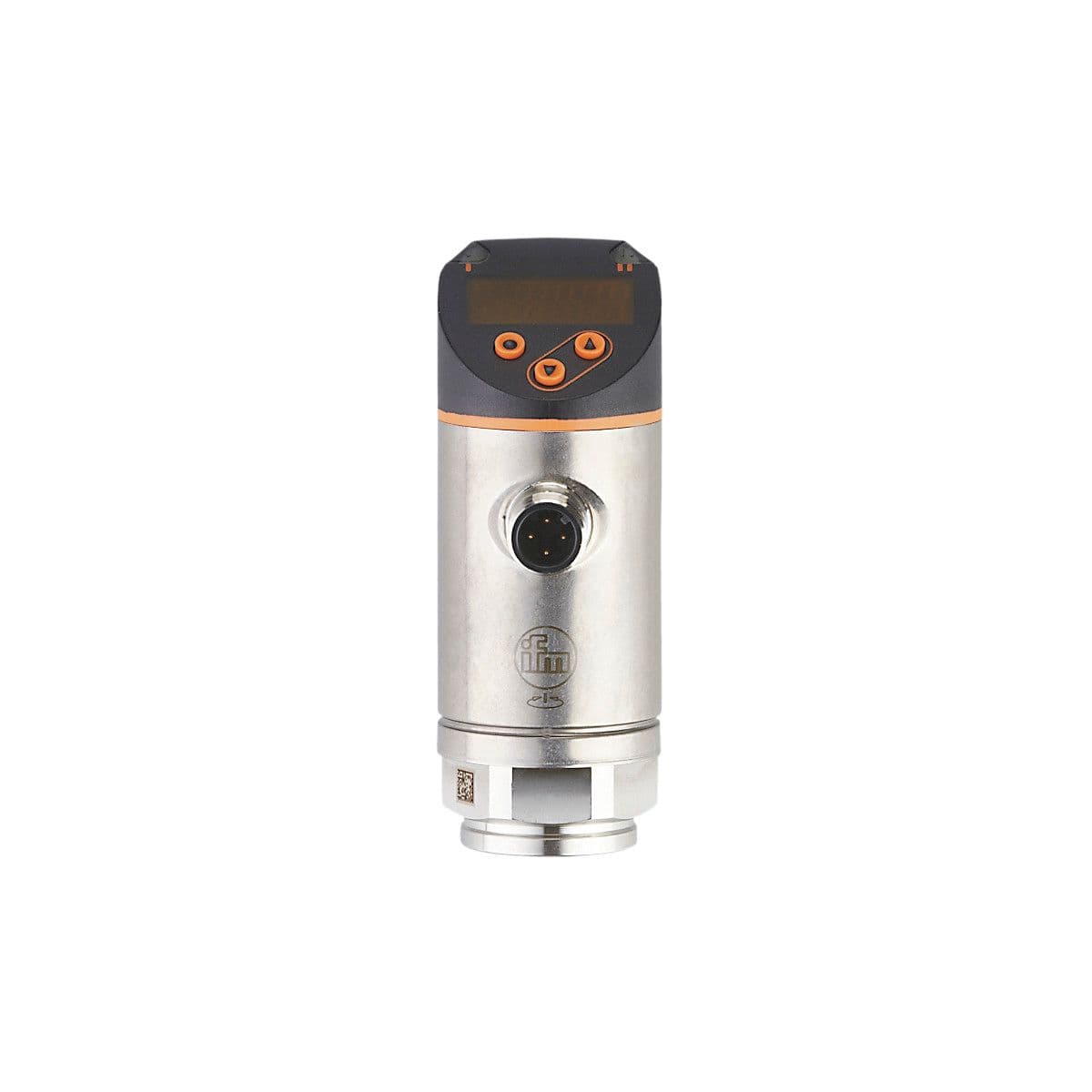

PE2091 ifm Electronic Electronic Components

Product Details

• Max. load [Ω]
  500
• System
  gold-plated contacts
• Operating voltage [V]
  18...30 DC; (according to EN 50178 SELV/PELV)
• Min. bursting pressure
  1000 bar 14500 psi 100 MPa
• Integrated watchdog
  yes
• Switching frequency DC [Hz]
  < 500
• Type of pressure
  relative pressure
• Pressure rating
  500 bar 7250 psi 50 Mpa
• Total number of outputs
  2
• Analog current output [mA]
  4...20; (scalable 1:5)
• Media
  liquids and gases
• Output function
  normally open / closed; (configurable)
• Min. load resistance [Ω]
  2000
• Measuring element
  ceramic-capacitive pressure measuring cell
• Vacuum resistance [mbar]
  -1000
• Application
  for industrial applications
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Number of digital outputs
  2
• Analog voltage output [V]
  0...10; (scalable 1:5)
• Process connection
  threaded connection G 1/4 Internal thread
Protection class
III
Max. voltage drop switching output DC [V]
2
Overload protection
yes
Power-on delay time [s]
0.3
Output signal
switching signal; analog signal; IO-Link; (configurable)
Electrical design
PNP/NPN
Medium temperature [°C]
-25...80
Reverse polarity protection
yes
Permanent current rating of switching output DC [mA]
250
Type of short-circuit protection
yes (non-latching)
Current consumption [mA]
< 35
Number of inputs and outputs
Number of digital outputs: 2; Number of analog outputs: 1
Measuring range
0...250 bar 0...3625 psi 0...25 MPa
Number of analog outputs
1
Short-circuit protection
yes
