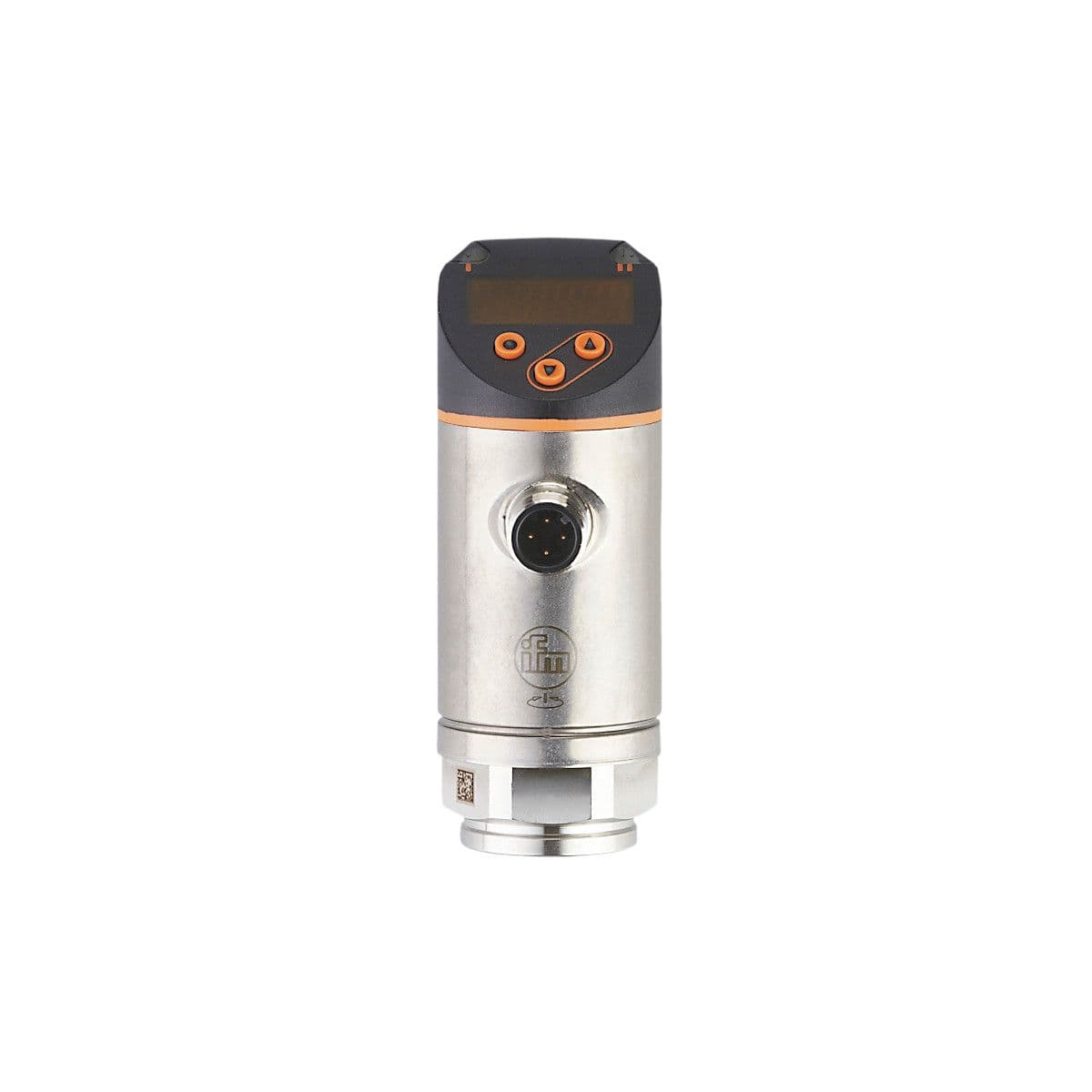

PE2099 ifm Electronic Electronic Components

Product Details

• Min. load resistance [Ω]
  2000
• Type of short-circuit protection
  yes (non-latching)
• Short-circuit protection
  yes
• Max. load [Ω]
  500
• Analog voltage output [V]
  0...10; (scalable 1:5)
• Analog current output [mA]
  4...20; (scalable 1:5)
• Number of analog outputs
  1
• Switching frequency DC [Hz]
  < 500
• Max. voltage drop switching output DC [V]
  2
• Output function
  normally open / closed; (configurable)
• Permanent current rating of switching output DC [mA]
  250
• Output signal
  switching signal; analog signal; IO-Link; (configurable)
• Number of digital outputs
  2
• Total number of outputs
  2
• Integrated watchdog
  yes
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Reverse polarity protection
  yes
• Protection class
  III
• Pressure rating
  10000 mbar 145 psi 1000 kPa
• Vacuum resistance [mbar]
  -1000
Operating voltage [V]
18...30 DC; (according to EN 50178 SELV/PELV)
Min. bursting pressure
30000 mbar 435 psi 3000 kPa
Media
liquids and gases
Process connection
threaded connection G 1/4 Internal thread
Measuring range
-1...1 bar -1000...1000 mbar -14.5...14.5 psi -100...100 kPa
Measuring element
ceramic-capacitive pressure measuring cell
Overload protection
yes
Electrical design
PNP/NPN
Power-on delay time [s]
0.3
Min. insulation resistance [MΩ]
100; (500 V DC)
Current consumption [mA]
< 35
Type of pressure
relative pressure
Application
for industrial applications
System
gold-plated contacts
Medium temperature [°C]
-25...80
