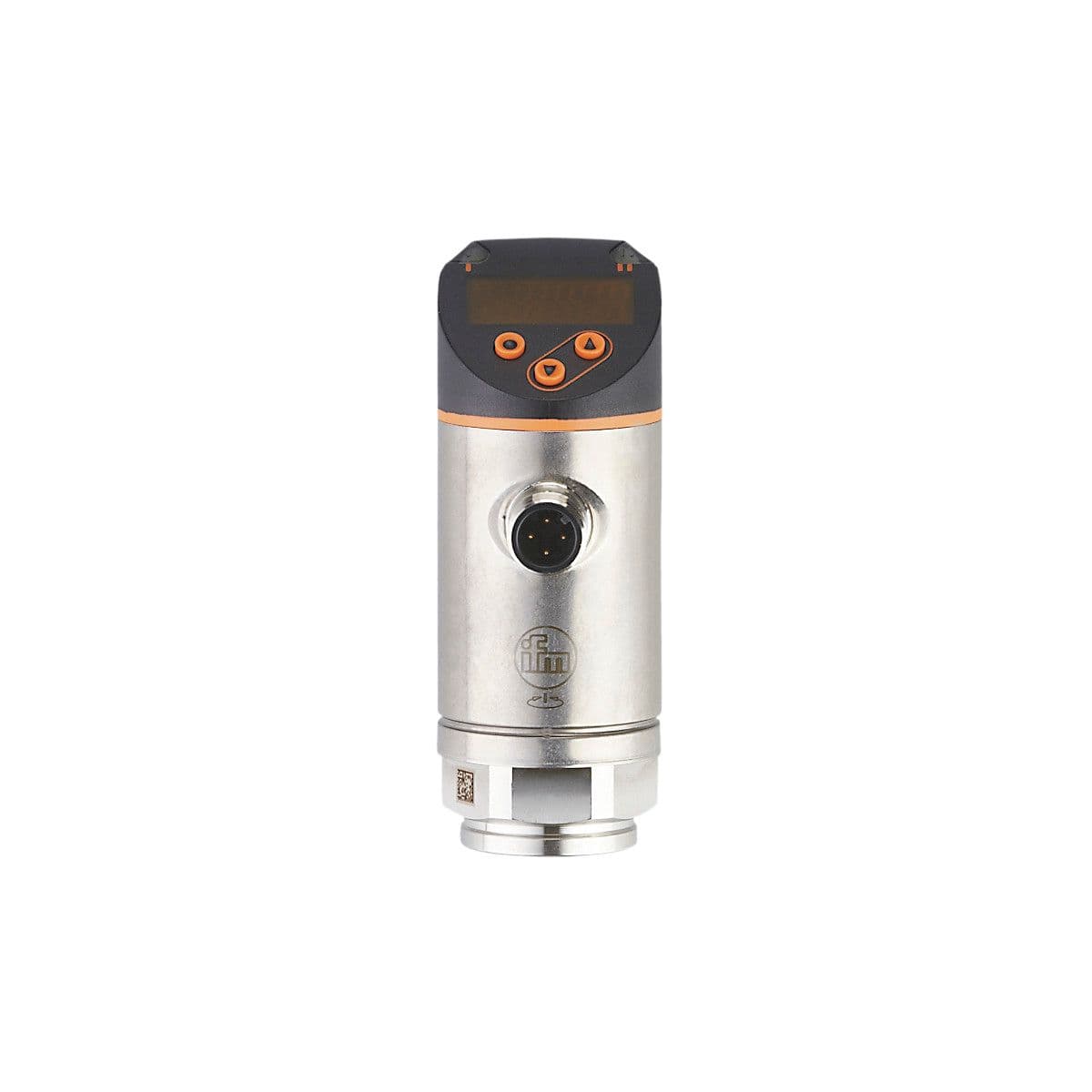

PE2094 ifm Electronic Electronic Components

Product Details

• Overload protection
  yes
• Type of short-circuit protection
  yes (non-latching)
• Short-circuit protection
  yes
• Min. load resistance [Ω]
  2000
• Max. load [Ω]
  500
• Analog voltage output [V]
  0...10; (scalable 1:5)
• Analog current output [mA]
  4...20; (scalable 1:5)
• Number of analog outputs
  1
• Permanent current rating of switching output DC [mA]
  250
• Switching frequency DC [Hz]
  < 500
• Number of digital outputs
  2
• Electrical design
  PNP/NPN
• Max. voltage drop switching output DC [V]
  2
• Output function
  normally open / closed; (configurable)
• Total number of outputs
  2
• Integrated watchdog
  yes
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Reverse polarity protection
  yes
• Protection class
  III
• Power-on delay time [s]
  0.3
Min. insulation resistance [MΩ]
100; (500 V DC)
Current consumption [mA]
< 35
Operating voltage [V]
18...30 DC; (according to EN 50178 SELV/PELV)
Type of pressure
relative pressure
Vacuum resistance [mbar]
-1000
Pressure rating
75 bar 1087 psi 7.5 Mpa
Medium temperature [°C]
-25...80
Measuring range
-1...10 bar -14.6...145 psi -0.1...1 MPa
Min. bursting pressure
150 bar 2175 psi 15 MPa
Application
for industrial applications
Process connection
threaded connection G 1/4 Internal thread
System
gold-plated contacts
Measuring element
ceramic-capacitive pressure measuring cell
Media
liquids and gases
Output signal
switching signal; analog signal; IO-Link; (configurable)
