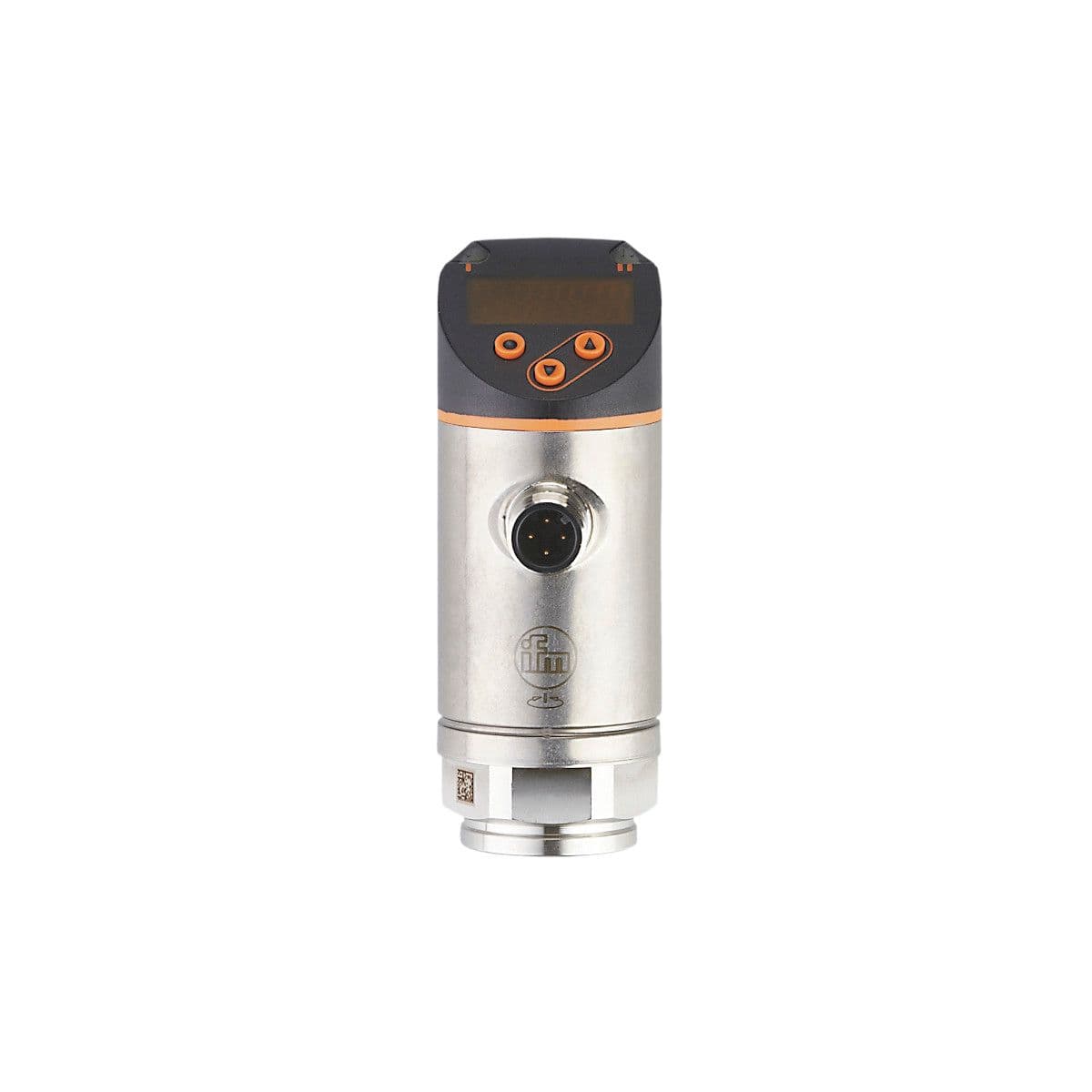

PE2092 ifm Electronic Electronic Components

Product Details

• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Switching frequency DC [Hz]
  < 500
• Pressure rating
  300 bar 4350 psi 30 Mpa
• Measuring range
  0...100 bar 0...1450 psi 0...10 MPa
• Current consumption [mA]
  < 35
• Output function
  normally open / closed; (configurable)
• Analog voltage output [V]
  0...10; (scalable 1:5)
• Vacuum resistance [mbar]
  -1000
• Protection class
  III
• Permanent current rating of switching output DC [mA]
  250
• Type of short-circuit protection
  yes (non-latching)
• Operating voltage [V]
  18...30 DC; (according to EN 50178 SELV/PELV)
• Output signal
  switching signal; analog signal; IO-Link; (configurable)
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Max. load [Ω]
  500
• System
  gold-plated contacts
• Integrated watchdog
  yes
• Analog current output [mA]
  4...20; (scalable 1:5)
• Medium temperature [°C]
  -25...80
• Total number of outputs
  2
Number of analog outputs
1
Measuring element
ceramic-capacitive pressure measuring cell
Media
liquids and gases
Process connection
threaded connection G 1/4 Internal thread
Application
for industrial applications
Power-on delay time [s]
0.3
Max. voltage drop switching output DC [V]
2
Min. load resistance [Ω]
2000
Number of digital outputs
2
Short-circuit protection
yes
Min. bursting pressure
650 bar 9400 psi 65 MPa
Reverse polarity protection
yes
Type of pressure
relative pressure
Electrical design
PNP/NPN
Overload protection
yes
