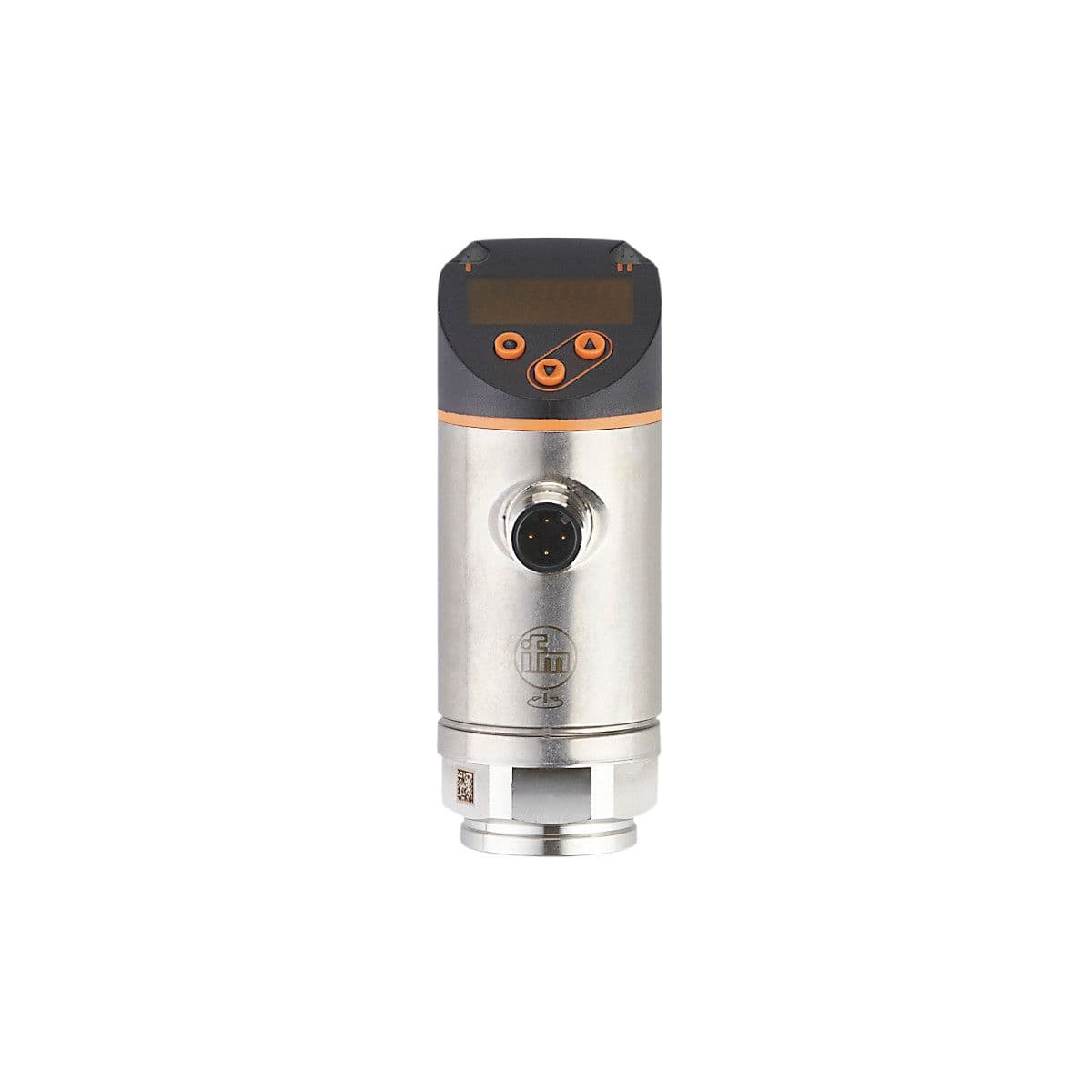

PE2096 ifm Electronic Electronic Components

Product Details

• Application
  for industrial applications
• System
  gold-plated contacts
• Power-on delay time [s]
  0.3
• Number of analog outputs
  1
• Short-circuit protection
  yes
• Pressure rating
  20 bar 290 psi 2000 kPa
• Output signal
  switching signal; analog signal; IO-Link; (configurable)
• Number of digital outputs
  2
• Switching frequency DC [Hz]
  < 500
• Process connection
  threaded connection G 1/4 Internal thread
• Type of pressure
  relative pressure
• Integrated watchdog
  yes
• Analog voltage output [V]
  0...10; (scalable 1:5)
• Measuring range
  -0.125...2.5 bar -125...2500 mbar -1.8...36.25 psi -12.5...250 kPa
• Operating voltage [V]
  18...30 DC; (according to EN 50178 SELV/PELV)
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Analog current output [mA]
  4...20; (scalable 1:5)
• Vacuum resistance [mbar]
  -1000
• Total number of outputs
  2
• Overload protection
  yes
Medium temperature [°C]
-25...80
Min. load resistance [Ω]
2000
Media
liquids and gases
Protection class
III
Output function
normally open / closed; (configurable)
Measuring element
ceramic-capacitive pressure measuring cell
Min. insulation resistance [MΩ]
100; (500 V DC)
Permanent current rating of switching output DC [mA]
250
Max. load [Ω]
500
Min. bursting pressure
50 bar 725 psi 5000 kPa
Current consumption [mA]
< 35
Max. voltage drop switching output DC [V]
2
Electrical design
PNP/NPN
Type of short-circuit protection
yes (non-latching)
Reverse polarity protection
yes
