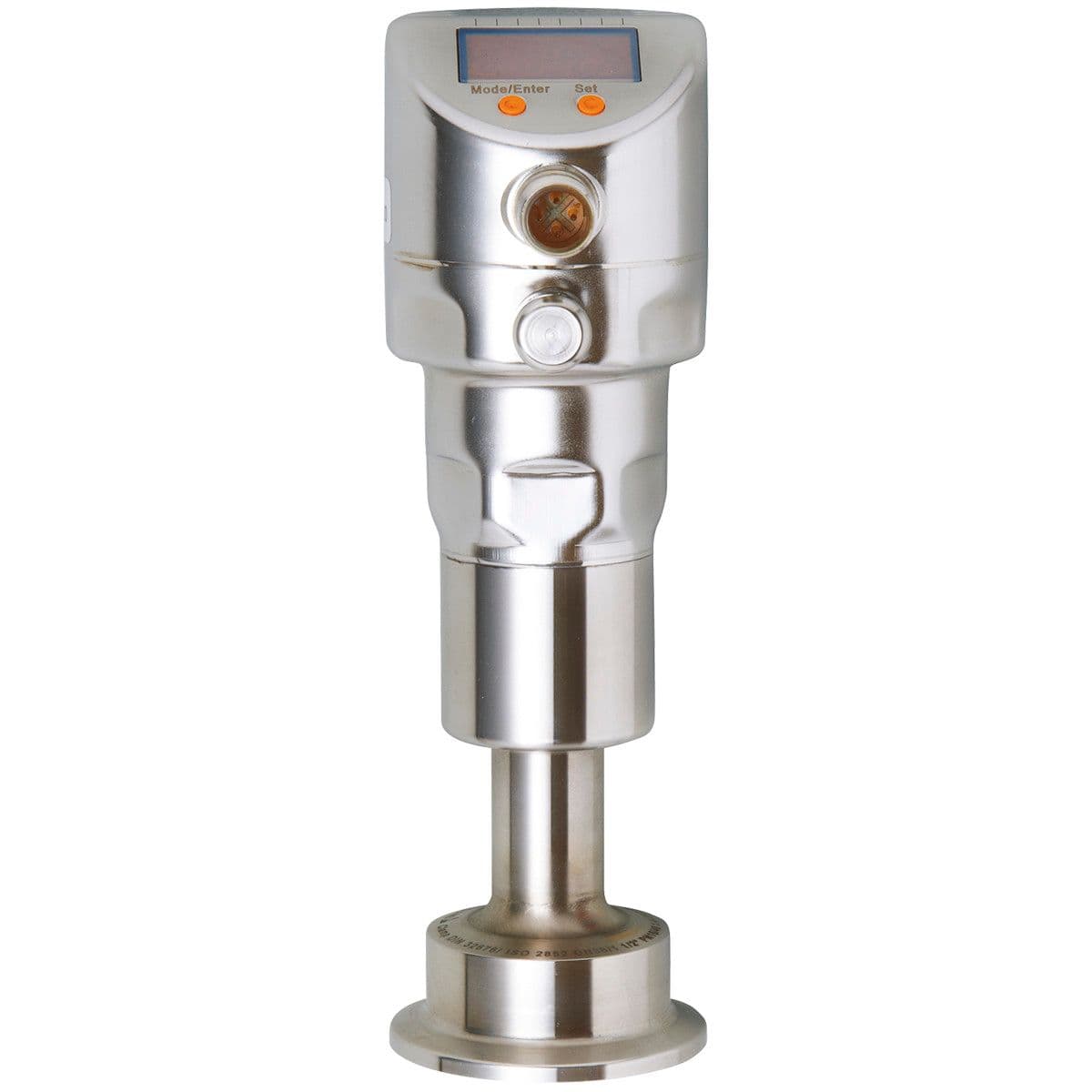

PI2203 ifm Electronic Electronic Components

Product Details

• Application
  flush mountable for the food and beverage industry
• Operating voltage [V]
  18...32 DC
• Analog current output [mA]
  4...20, invertible; (scalable)
• Number of analog outputs
  1
• Measuring range
  -1...25 bar -14.4...362.7 psi -0.1...2.5 MPa
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Total number of outputs
  2
• Output signal
  switching signal; analog signal; IO-Link; (configurable)
• Current consumption [mA]
  < 45
• Overload protection
  yes
• Max. load [Ω]
  300
• Medium temperature [°C]
  -25...200
• Protection class
  III
• Media
  viscous media and liquids with suspended particles; liquids and gases
• Reverse polarity protection
  yes
• Electrical design
  PNP/NPN
• Permanent current rating of switching output DC [mA]
  250
• Switching frequency DC [Hz]
  125
• System
  gold-plated contacts
• Type of pressure
  relative pressure; vacuum
Output function
normally open / closed; (configurable)
Process connection
Clamp DN40 (1,5") DIN 32676 (ISO 2852)
Integrated watchdog
yes
Short-circuit protection
yes
Max. voltage drop switching output DC [V]
2
Pressure rating
80 bar 1160 psi 8 Mpa
Number of inputs and outputs
Number of digital outputs: 2; Number of analog outputs: 1
Number of digital outputs
2
Min. bursting pressure
150 bar 2175 psi 15 MPa
Power-on delay time [s]
0.5
Type of short-circuit protection
yes (non-latching)
