PI2214 ifm Electronic Electronic Components
Part#:PI2214
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

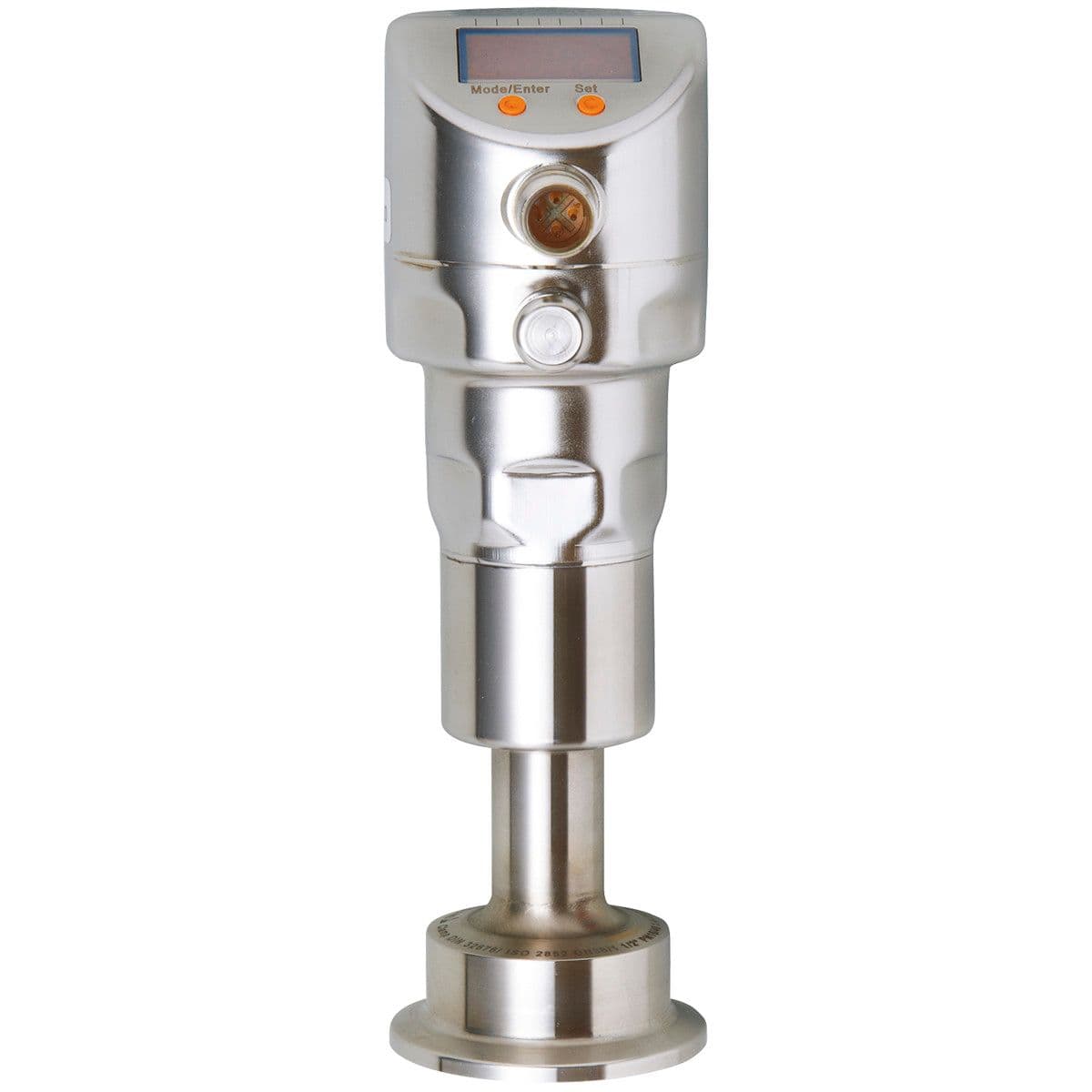

Flush pressure sensor with display, For use in high temperatures in the food and beverage industry, Output signal: switching signal; analog signal; IO-Link; (configurable), Measuring range: -1...10 bar -14.5...145 psi -0.1...1 MPa, Process connection: Cla
Product Details
- Switching frequency DC [Hz] 125
- Permanent current rating of switching output DC [mA] 250
- Max. voltage drop switching output DC [V] 2
- Output function normally open / closed; (configurable)
- Overload protection yes
- Type of short-circuit protection yes (non-latching)
- Short-circuit protection yes
- Max. load [Ω] (Ub - 10 V) / 20 mA
- Analog current output [mA] 4...20, invertible; (scalable)
- Number of digital outputs 2
- Number of analog outputs 1
- Electrical design PNP/NPN
- Total number of outputs 2
- Number of inputs and outputs Number of digital outputs: 2; Number of analog outputs: 1
- Power-on delay time [s] 0.5
- Current consumption [mA] < 45
- Integrated watchdog yes
- Operating voltage [V] 18...32 DC
- Reverse polarity protection yes
- Protection class III
- Type of pressure relative pressure; vacuum
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Process connection Clamp DN40 (1,5") DIN 32676 (ISO 2852) electropolished
- Measuring range -1...10 bar -14.5...145 psi -0.1...1 MPa
- Output signal switching signal; analog signal; IO-Link; (configurable)
- Pressure rating 50 bar 725 psi 5 Mpa
- Min. bursting pressure 100 bar 1450 psi 10 MPa
- System gold-plated contacts
- Medium temperature [°C] -25...200
- Media viscous media and liquids with suspended particles; liquids and gases
- Application flush mountable for the food and beverage industry
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
