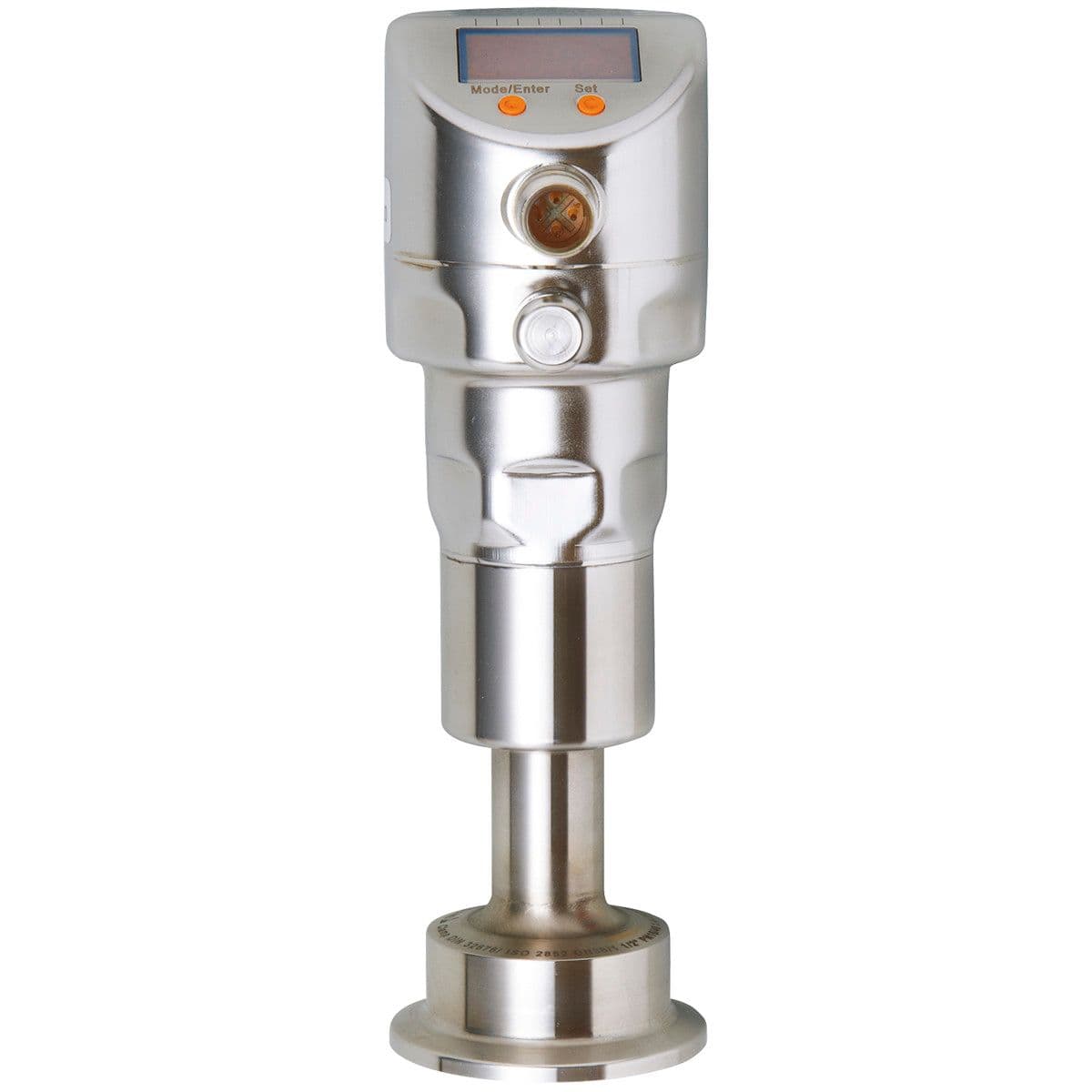

PI2207 ifm Electronic Electronic Components

Product Details

• Permanent current rating of switching output DC [mA]
  250
• Min. bursting pressure
  30000 mbar 435 psi 3000 kPa
• Reverse polarity protection
  yes
• Overload protection
  yes
• Pressure rating
  10000 mbar 145 psi 1000 kPa
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Number of digital outputs
  2
• Type of pressure
  relative pressure
• Current consumption [mA]
  < 45
• Number of analog outputs
  1
• Power-on delay time [s]
  0.5
• Output function
  normally open / closed; (configurable)
• Switching frequency DC [Hz]
  125
• Type of short-circuit protection
  yes (non-latching)
• Max. voltage drop switching output DC [V]
  2
• Analog current output [mA]
  4...20, invertible; (scalable)
• Measuring range
  -50...1000 mbar -0.73...14.5 psi -5...100 kPa
• Operating voltage [V]
  18...32 DC
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Short-circuit protection
  yes
Process connection
Clamp DN40 (1,5") DIN 32676 (ISO 2852)
Media
viscous media and liquids with suspended particles; liquids and gases
Output signal
switching signal; analog signal; IO-Link; (configurable)
Total number of outputs
2
Protection class
III
System
gold-plated contacts
Integrated watchdog
yes
Application
flush mountable for the food and beverage industry
Max. load [Ω]
(Ub - 10 V) / 20 mA
Medium temperature [°C]
-25...200
Electrical design
PNP/NPN
