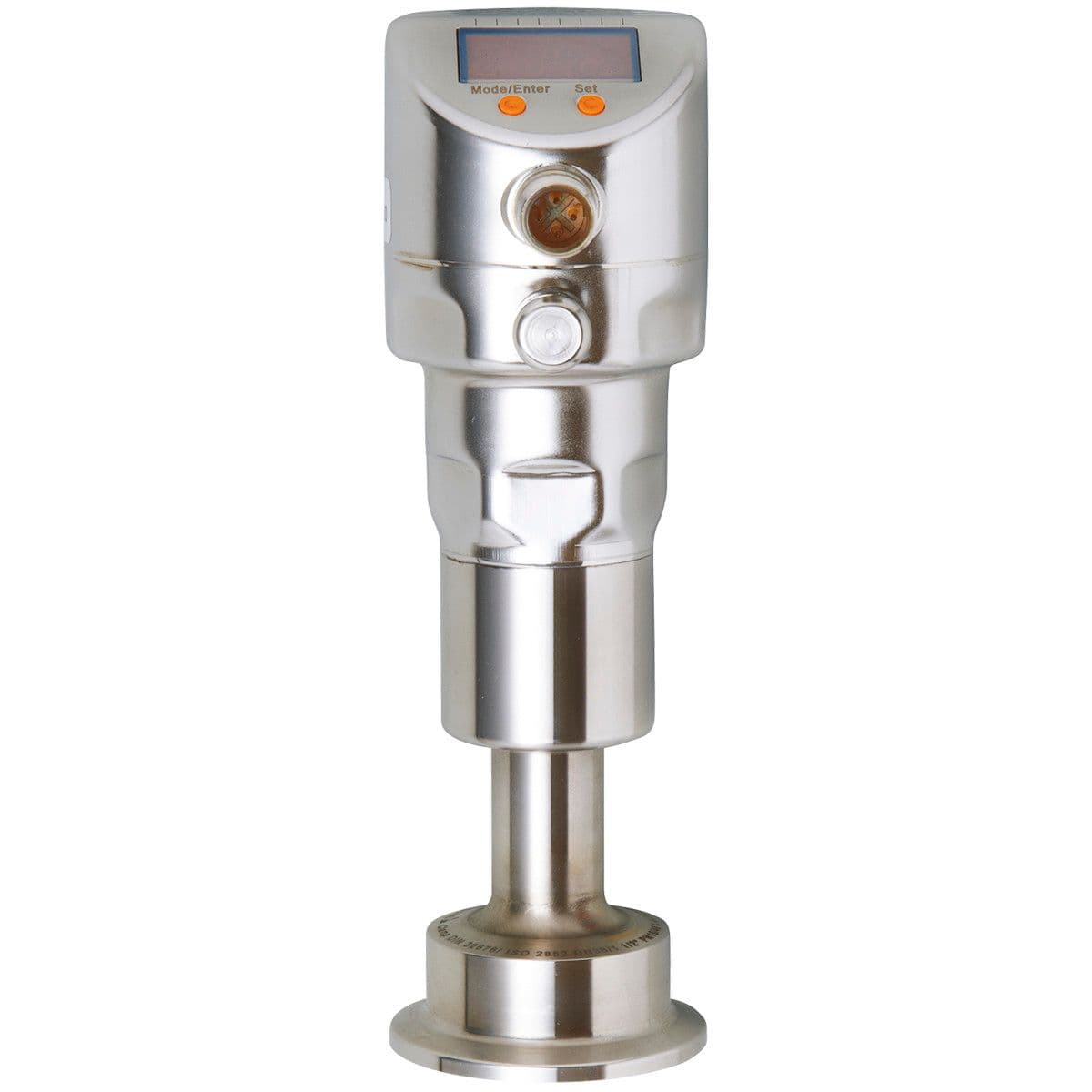

PI2205 ifm Electronic Electronic Components

Product Details

• Operating voltage [V]
  18...32 DC
• Integrated watchdog
  yes
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Power-on delay time [s]
  0.5
• Total number of outputs
  2
• Output signal
  switching signal; analog signal; IO-Link; (configurable)
• Output function
  normally open / closed; (configurable)
• Number of analog outputs
  1
• Electrical design
  PNP/NPN
• Number of digital outputs
  2
• Application
  flush mountable for the food and beverage industry
• Process connection
  Clamp DN40 (1,5") DIN 32676 (ISO 2852)
• Medium temperature [°C]
  -25...200
• Media
  viscous media and liquids with suspended particles; liquids and gases
• System
  gold-plated contacts
• Min. bursting pressure
  50 bar 725 psi 5000 kPa
• Measuring range
  -1...4 bar -14.5...58 psi -100...400 kPa
• Pressure rating
  30 bar 435 psi 3000 kPa
• Type of pressure
  relative pressure; vacuum
• Min. insulation resistance [MΩ]
  100; (500 V DC)
Protection class
III
Reverse polarity protection
yes
Current consumption [mA]
< 45
Analog current output [mA]
4...20, invertible; (scalable)
Overload protection
yes
Max. load [Ω]
(Ub - 10 V) / 20 mA
Type of short-circuit protection
yes (non-latching)
Short-circuit protection
yes
Permanent current rating of switching output DC [mA]
250
Switching frequency DC [Hz]
125
Max. voltage drop switching output DC [V]
2
