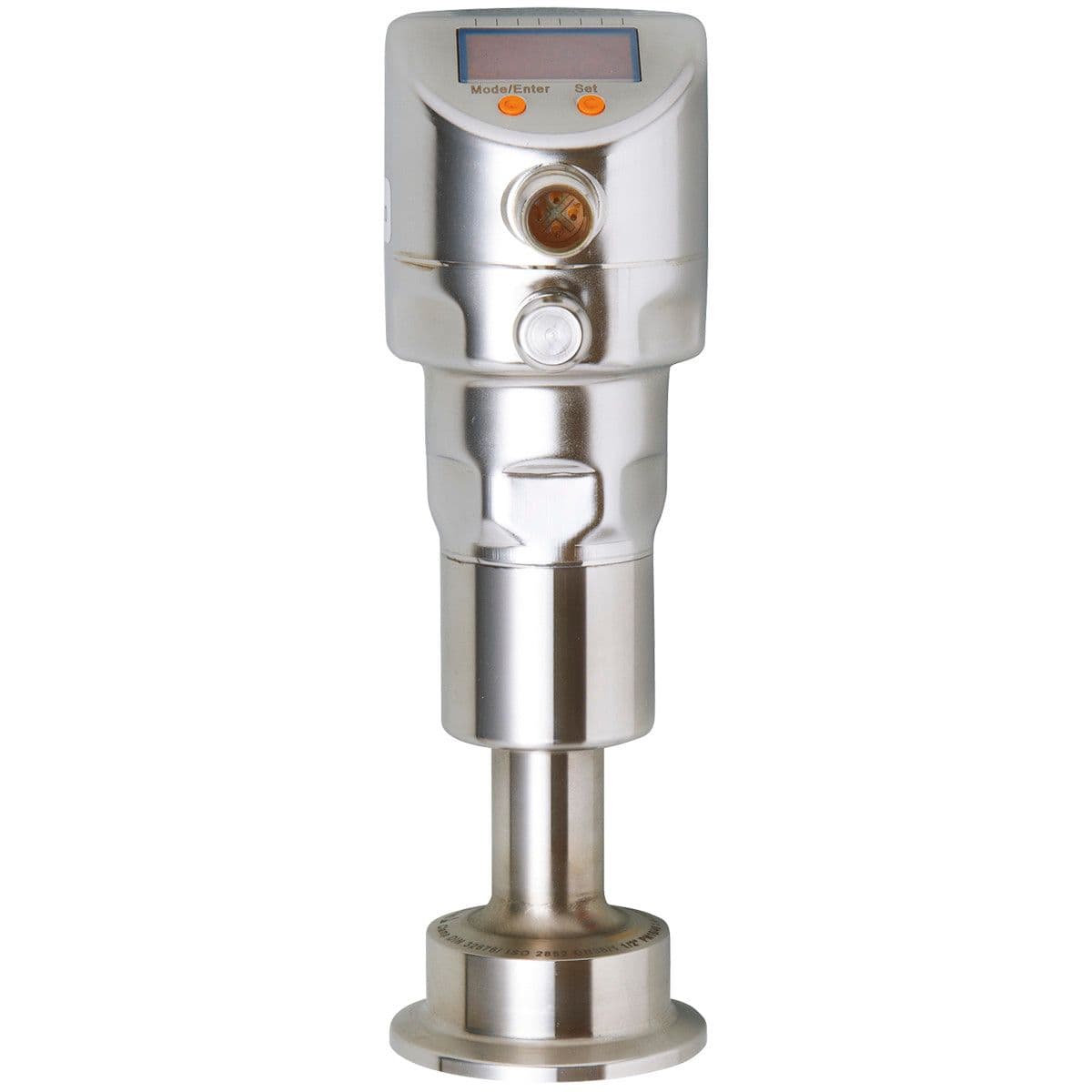

PI2204 ifm Electronic Electronic Components

Product Details

• Medium temperature [°C]
  -25...200
• Output signal
  switching signal; analog signal; IO-Link; (configurable)
• Power-on delay time [s]
  0.5
• Analog current output [mA]
  4...20, invertible; (scalable)
• Switching frequency DC [Hz]
  125
• Protection class
  III
• Process connection
  Clamp DN40 (1,5") DIN 32676 (ISO 2852)
• Output function
  normally open / closed; (configurable)
• Measuring range
  -1...10 bar -14.5...145 psi -0.1...1 MPa
• Operating voltage [V]
  18...32 DC
• Number of digital outputs
  2
• Permanent current rating of switching output DC [mA]
  250
• System
  gold-plated contacts
• Integrated watchdog
  yes
• Type of short-circuit protection
  yes (non-latching)
• Application
  flush mountable for the food and beverage industry
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Electrical design
  PNP/NPN
• Max. load [Ω]
  300
• Media
  viscous media and liquids with suspended particles; liquids and gases
Reverse polarity protection
yes
Total number of outputs
2
Overload protection
yes
Max. voltage drop switching output DC [V]
2
Min. bursting pressure
100 bar 1450 psi 10 MPa
Current consumption [mA]
< 45
Number of inputs and outputs
Number of digital outputs: 2; Number of analog outputs: 1
Type of pressure
relative pressure; vacuum
Short-circuit protection
yes
Pressure rating
50 bar 725 psi 5 Mpa
Number of analog outputs
1
