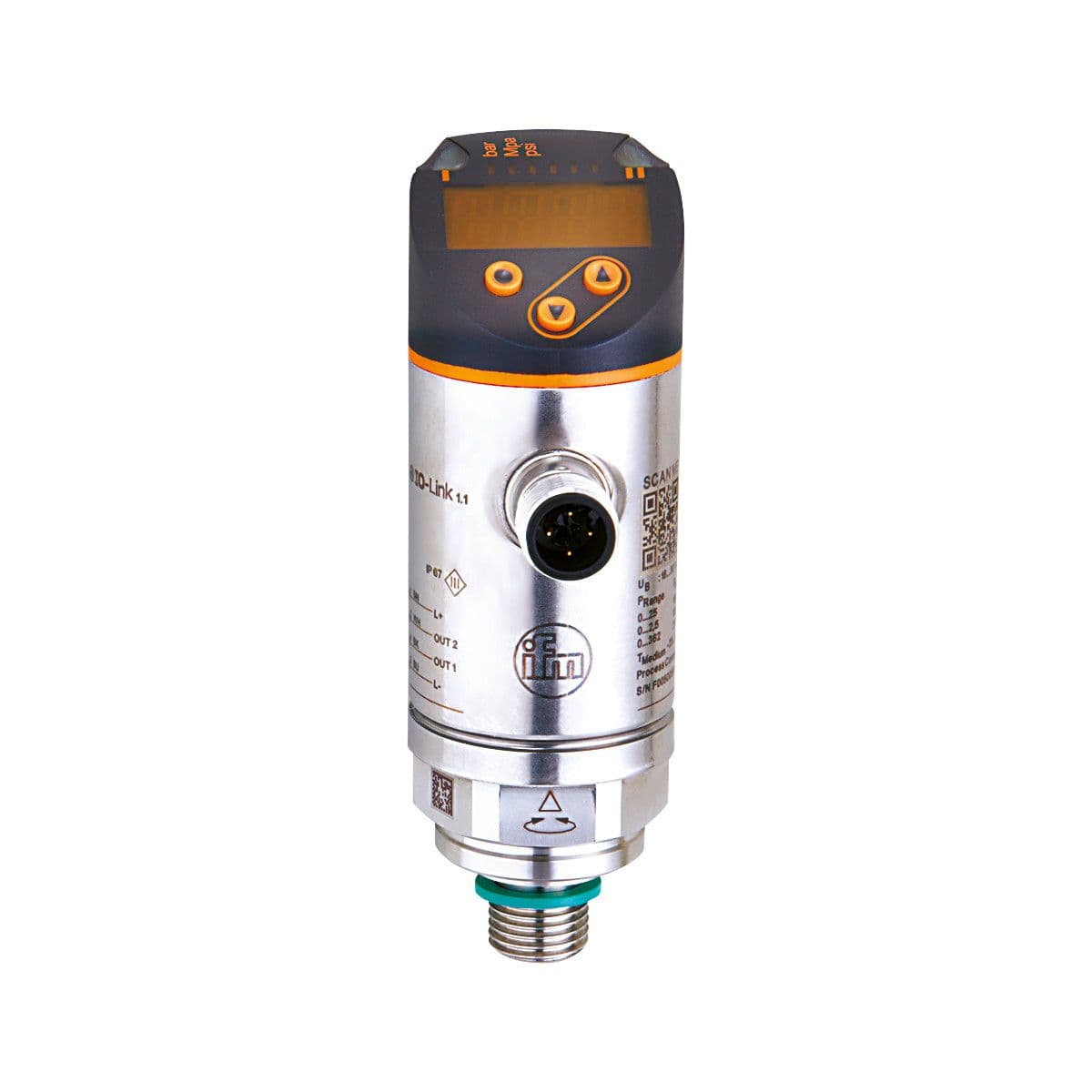

PN2515 ifm Electronic Electronic Components

Product Details

• Number of digital outputs
  2
• Short-circuit protection
  yes
• System
  gold-plated contacts
• Protection class
  III
• Medium temperature [°C]
  -25...80
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Max. voltage drop switching output DC [V]
  2
• Min. load resistance [Ω]
  2000
• Measuring range
  -1...6 bar -14.5...87 psi -100...600 kPa
• Pressure rating
  40 bar 600 psi 4000 kPa
• Integrated watchdog
  yes
• Number of analog outputs
  1
• Min. bursting pressure
  100 bar 1500 psi 10000 kPa
• Power-on delay time [s]
  0.3
• Analog voltage output [V]
  0...10; (scalable 1:5)
• Type of short-circuit protection
  yes (non-latching)
• Total number of outputs
  2
• Switching frequency DC [Hz]
  < 500
• Media
  liquids and gases
• Type of pressure
  relative pressure; vacuum
Vacuum resistance [mbar]
-1000
Number of inputs and outputs
Number of digital outputs: 2; Number of analog outputs: 1
Measuring element
ceramic-capacitive pressure measuring cell
Analog current output [mA]
4...20; (scalable 1:5)
Process connection
threaded connection G 1/4 external thread (DIN EN ISO 1179-2); Internal thread:M5
Operating voltage [V]
18...30 DC; (according to EN 50178 SELV/PELV)
Electrical design
PNP/NPN
Max. load [Ω]
500
Reverse polarity protection
yes
Output signal
switching signal; analog signal; IO-Link; (configurable)
Permanent current rating of switching output DC [mA]
250
Current consumption [mA]
< 35
Output function
normally open / closed; (configurable)
Overload protection
yes
Application
for industrial applications
