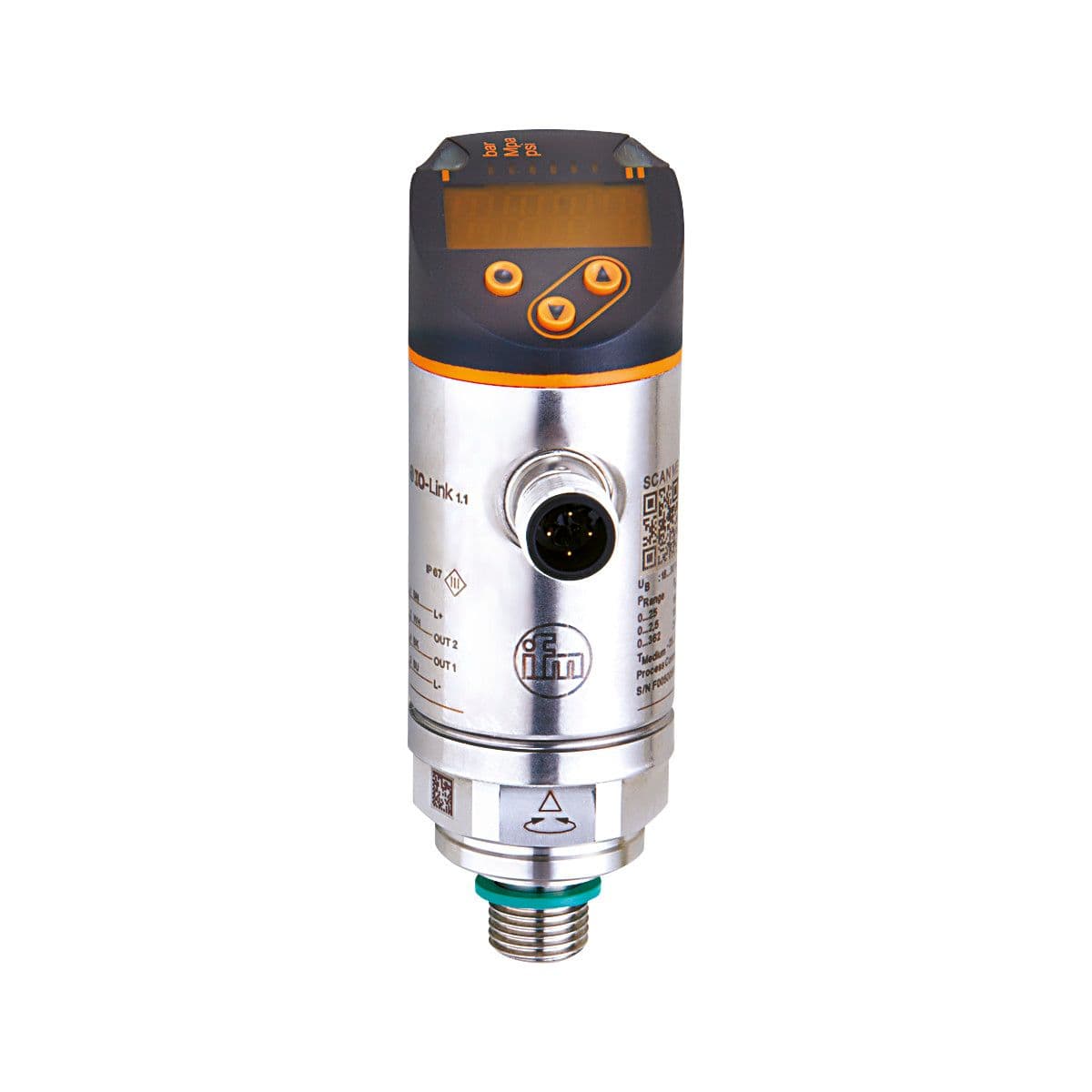

PN2598 ifm Electronic Electronic Components

Product Details

• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Electrical design
  PNP/NPN
• Switching frequency DC [Hz]
  < 500
• Measuring element
  ceramic-capacitive pressure measuring cell
• Process connection
  threaded connection G 1/4 external thread (DIN EN ISO 1179-2); Internal thread:M5
• Vacuum resistance [mbar]
  -1000
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Max. load [Ω]
  500
• Application
  for industrial applications
• Total number of outputs
  2
• Analog voltage output [V]
  0...10; (scalable 1:5)
• Media
  liquids and gases
• Power-on delay time [s]
  0.3
• Analog current output [mA]
  4...20; (scalable 1:5)
• System
  gold-plated contacts
• Current consumption [mA]
  < 35
• Min. load resistance [Ω]
  2000
• Operating voltage [V]
  18...30 DC; (according to EN 50178 SELV/PELV)
• Output signal
  switching signal; analog signal; IO-Link; (configurable)
• Short-circuit protection
  yes
Medium temperature [°C]
-25...80
Measuring range
-0.0125...0.25 bar -12.5...250 mbar -5...100.4 inH2O -1.25...25 kPa -127...2549 mmWS
Type of pressure
relative pressure
Protection class
III
Reverse polarity protection
yes
Min. bursting pressure
30000 mbar 12000 inH2O 3000 kPa 306000 mmWS
Pressure rating
10000 mbar 4000 inH2O 1000 kPa 102000 mmWS
Integrated watchdog
yes
Max. voltage drop switching output DC [V]
2
Type of short-circuit protection
yes (non-latching)
Output function
normally open / closed; (configurable)
Number of analog outputs
1
Number of digital outputs
2
Permanent current rating of switching output DC [mA]
250
Overload protection
yes
