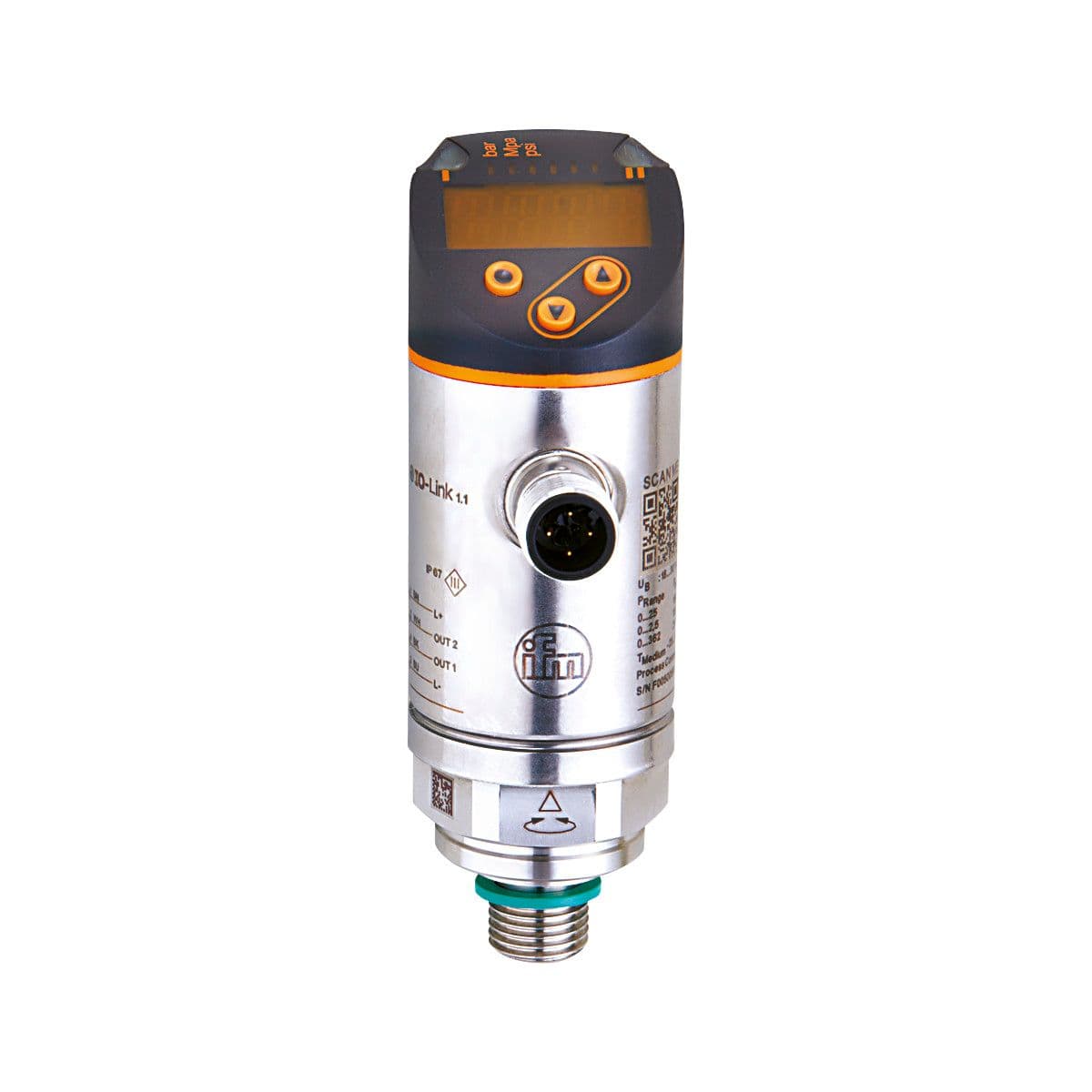

PN2596 ifm Electronic Electronic Components

Product Details

• Medium temperature [°C]
  -25...80
• Current consumption [mA]
  < 35
• Electrical design
  PNP/NPN
• Number of analog outputs
  1
• Operating voltage [V]
  18...30 DC; (according to EN 50178 SELV/PELV)
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Max. load [Ω]
  500
• System
  gold-plated contacts
• Min. bursting pressure
  50 bar 725 psi 5000 kPa
• Type of pressure
  relative pressure
• Total number of outputs
  2
• Analog voltage output [V]
  0...10; (scalable 1:5)
• Measuring range
  -0.125...2.5 bar -125...2500 mbar -1.8...36.25 psi -12.5...250 kPa
• Protection class
  III
• Switching frequency DC [Hz]
  < 500
• Measuring element
  ceramic-capacitive pressure measuring cell
• Pressure rating
  20 bar 290 psi 2000 kPa
• Analog current output [mA]
  4...20; (scalable 1:5)
• Power-on delay time [s]
  0.3
• Output signal
  switching signal; analog signal; IO-Link; (configurable)
Max. voltage drop switching output DC [V]
2
Type of short-circuit protection
yes (non-latching)
Media
liquids and gases
Min. insulation resistance [MΩ]
100; (500 V DC)
Number of digital outputs
2
Short-circuit protection
yes
Vacuum resistance [mbar]
-1000
Output function
normally open / closed; (configurable)
Overload protection
yes
Process connection
threaded connection G 1/4 external thread (DIN EN ISO 1179-2); Internal thread:M5
Reverse polarity protection
yes
Permanent current rating of switching output DC [mA]
250
Application
for industrial applications
Integrated watchdog
yes
Min. load resistance [Ω]
2000
