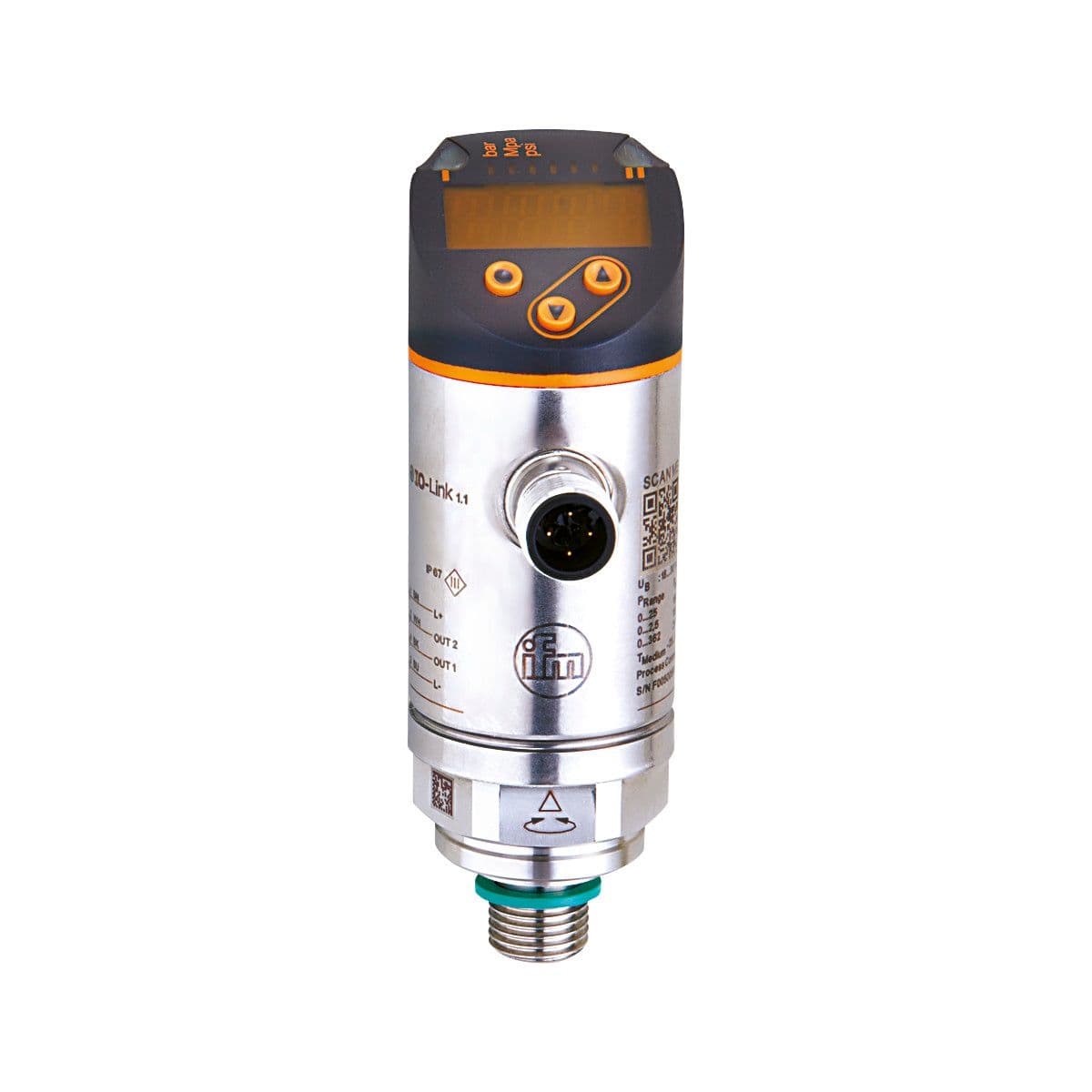

PN2593 ifm Electronic Electronic Components

Product Details

• Measuring range
  -1...25 bar -14.5...362.5 psi -0.1...2.5 MPa
• Power-on delay time [s]
  0.3
• Max. voltage drop switching output DC [V]
  2
• Short-circuit protection
  yes
• System
  gold-plated contacts
• Vacuum resistance [mbar]
  -1000
• Integrated watchdog
  yes
• Number of analog outputs
  1
• Media
  liquids and gases
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Output function
  normally open / closed; (configurable)
• Type of short-circuit protection
  yes (non-latching)
• Output signal
  switching signal; analog signal; IO-Link; (configurable)
• Switching frequency DC [Hz]
  < 500
• Pressure rating
  150 bar 2175 psi 15 Mpa
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Min. bursting pressure
  350 bar 5075 psi 35 MPa
• Reverse polarity protection
  yes
• Permanent current rating of switching output DC [mA]
  250
• Min. load resistance [Ω]
  2000
Application
for industrial applications
Type of pressure
relative pressure; vacuum
Total number of outputs
2
Analog voltage output [V]
0...10; (scalable 1:5)
Medium temperature [°C]
-25...80
Protection class
III
Electrical design
PNP/NPN
Max. load [Ω]
500
Measuring element
ceramic-capacitive pressure measuring cell
Current consumption [mA]
< 35
Number of digital outputs
2
Overload protection
yes
Process connection
threaded connection G 1/4 external thread (DIN EN ISO 1179-2); Internal thread:M5
Operating voltage [V]
18...30 DC; (according to EN 50178 SELV/PELV)
Analog current output [mA]
4...20; (scalable 1:5)
