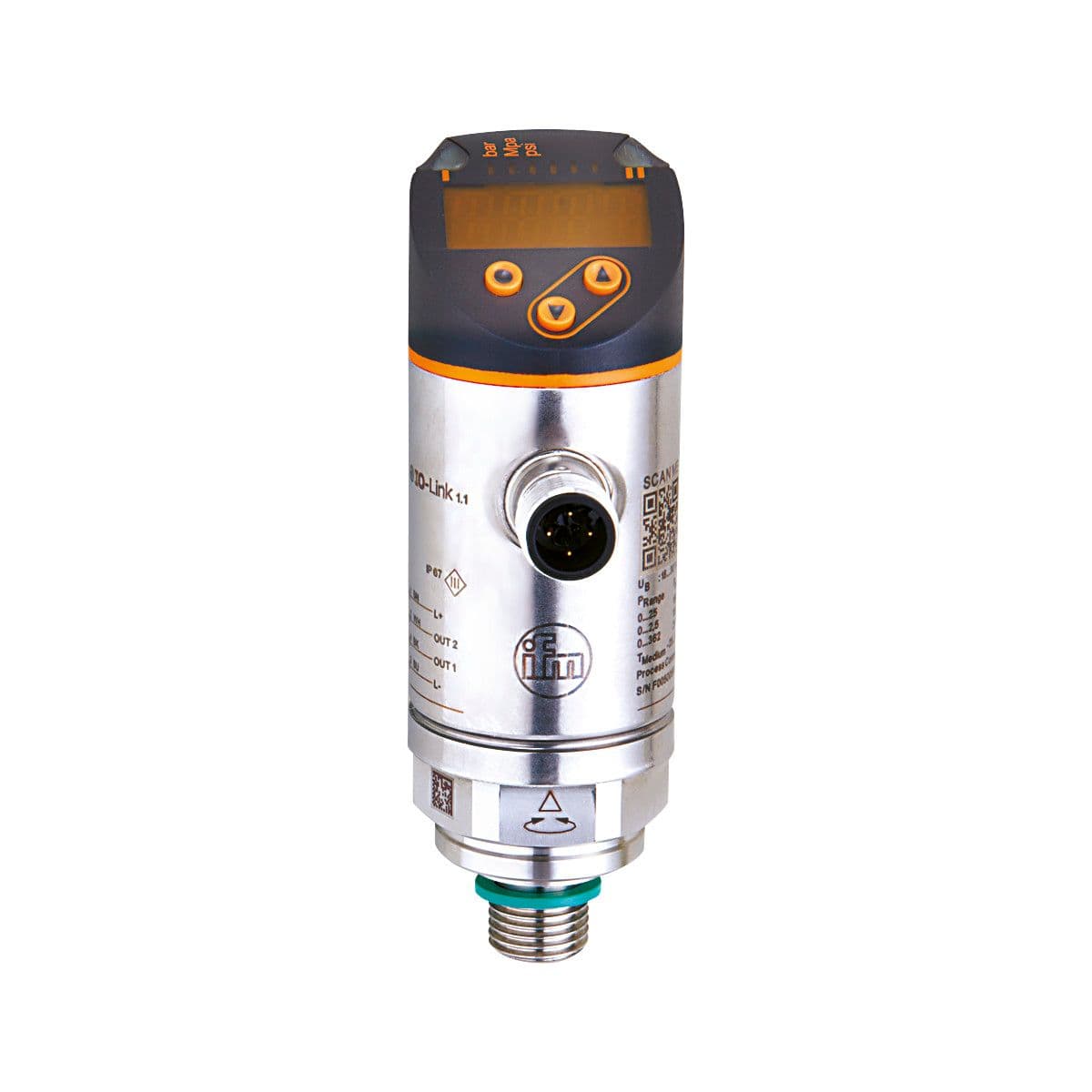

PN2570 ifm Electronic Electronic Components

Product Details

• Number of digital outputs
  2
• Type of short-circuit protection
  yes (non-latching)
• Medium temperature [°C]
  -25...80
• Protection class
  III
• Vacuum resistance [mbar]
  -1000
• Total number of outputs
  2
• Max. load [Ω]
  500
• Process connection
  threaded connection G 1/4 external thread (DIN EN ISO 1179-2); Internal thread:M5
• Media
  liquids and gases
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Output function
  normally open / closed; (configurable)
• Overload protection
  yes
• Measuring range
  0...400 bar 0...5800 psi 0...40 MPa
• Current consumption [mA]
  < 35
• Analog voltage output [V]
  0...10; (scalable 1:5)
• Max. voltage drop switching output DC [V]
  2
• Min. bursting pressure
  1700 bar 24650 psi 170 MPa
• Power-on delay time [s]
  0.3
• Permanent current rating of switching output DC [mA]
  250
• Min. load resistance [Ω]
  2000
Type of pressure
relative pressure
Electrical design
PNP/NPN
Measuring element
metallic thin film cell
Application
for industrial applications
Pressure rating
800 bar 11580 psi 80 Mpa
Integrated watchdog
yes
Analog current output [mA]
4...20; (scalable 1:5)
Short-circuit protection
yes
System
gold-plated contacts
Operating voltage [V]
18...30 DC; (according to EN 50178 SELV/PELV)
Number of inputs and outputs
Number of digital outputs: 2; Number of analog outputs: 1
Number of analog outputs
1
Reverse polarity protection
yes
Switching frequency DC [Hz]
< 500
Output signal
switching signal; analog signal; IO-Link; (configurable)
