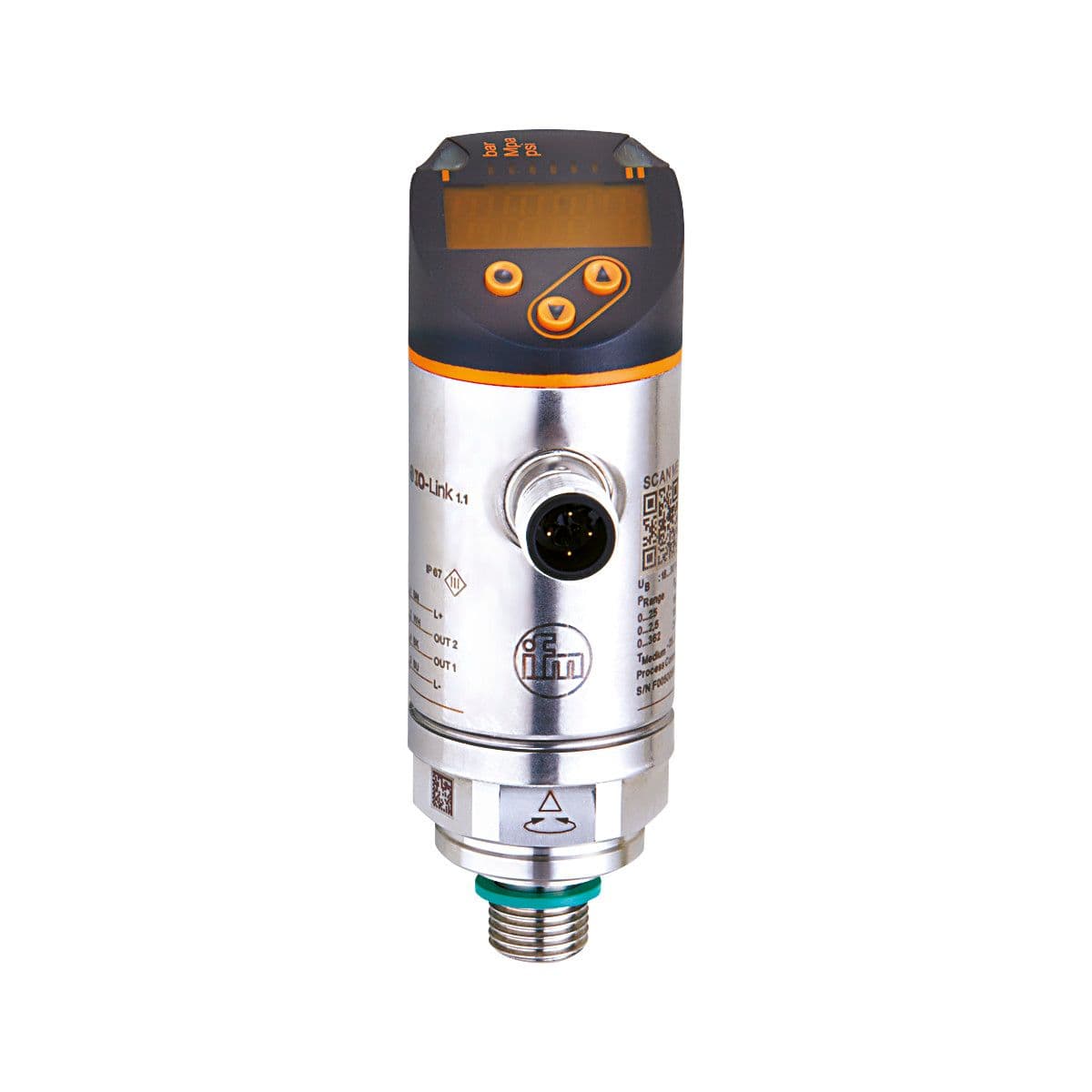

PN7512 ifm Electronic Electronic Components

Product Details

• Number of digital outputs
  2
• System
  gold-plated contacts
• Min. bursting pressure
  750 bar 10900 psi 75 MPa
• Overload protection
  yes
• Permanent current rating of switching output DC [mA]
  150; (200 (...60 °C) 250 (...40 °C))
• Measuring range
  0...160 bar 0...2322 psi 0...16 MPa
• Vacuum resistance [mbar]
  -1000
• Integrated watchdog
  yes
• Output function
  normally open / closed; (configurable)
• Process connection
  threaded connection G 1/4 external thread Internal thread:M5
• Application
  for industrial applications
• Operating voltage [V]
  18...30 DC; (according to EN 50178 SELV/PELV)
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Number of inputs and outputs
  Number of digital outputs: 2
• Measuring element
  ceramic-capacitive pressure measuring cell
• Conditionally suitable for
  use in gases at pressures > 25 bar only on request
• Reverse polarity protection
  yes
• Max. voltage drop switching output DC [V]
  2.5
• Medium temperature [°C]
  -25...80
• Current consumption [mA]
  < 35
Short-circuit protection
yes
Type of pressure
relative pressure
Power-on delay time [s]
< 0.3
Output signal
switching signal; IO-Link; (configurable)
Switching frequency DC [Hz]
< 170
Media
liquids and gases
Protection class
III
Total number of outputs
2
Pressure rating
350 bar 5100 psi 35 Mpa
Electrical design
PNP/NPN
Type of short-circuit protection
yes (non-latching)
