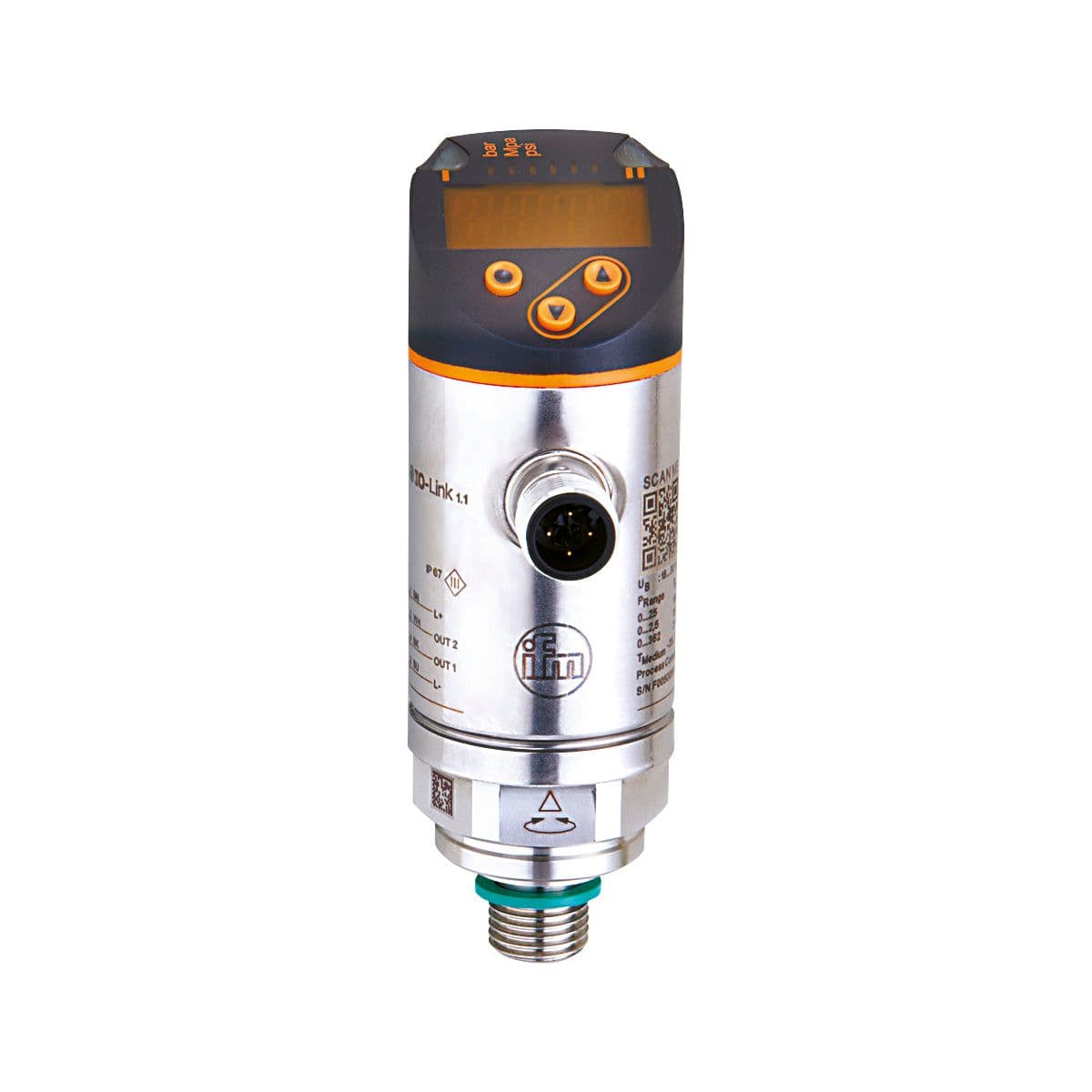

PN7592 ifm Electronic Electronic Components

Product Details

• Measuring range
  0...100 bar 0...1450 psi 0...10 MPa
• Pressure rating
  300 bar 4350 psi 30 Mpa
• Operating voltage [V]
  18...30 DC; (according to EN 50178 SELV/PELV)
• Total number of outputs
  2
• Number of inputs and outputs
  Number of digital outputs: 2
• Output signal
  switching signal; IO-Link; (configurable)
• Overload protection
  yes
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Number of digital outputs
  2
• System
  gold-plated contacts
• Protection class
  III
• Type of short-circuit protection
  yes (non-latching)
• Measuring element
  ceramic-capacitive pressure measuring cell
• Current consumption [mA]
  < 35
• Output function
  normally open / closed; (configurable)
• Short-circuit protection
  yes
• Min. bursting pressure
  650 bar 9400 psi 65 MPa
• Medium temperature [°C]
  -25...80
• Power-on delay time [s]
  0.3
• Max. voltage drop switching output DC [V]
  2.5
Application
for industrial applications
Type of pressure
relative pressure
Electrical design
PNP/NPN
Media
use in gases at pressures > 25 bar only on request
Vacuum resistance [mbar]
-1000
Integrated watchdog
yes
Switching frequency DC [Hz]
< 170
Process connection
threaded connection G 1/4 external thread Internal thread:M5
Reverse polarity protection
yes
Permanent current rating of switching output DC [mA]
150; (200 (...60 °C) 250 (...40 °C))
