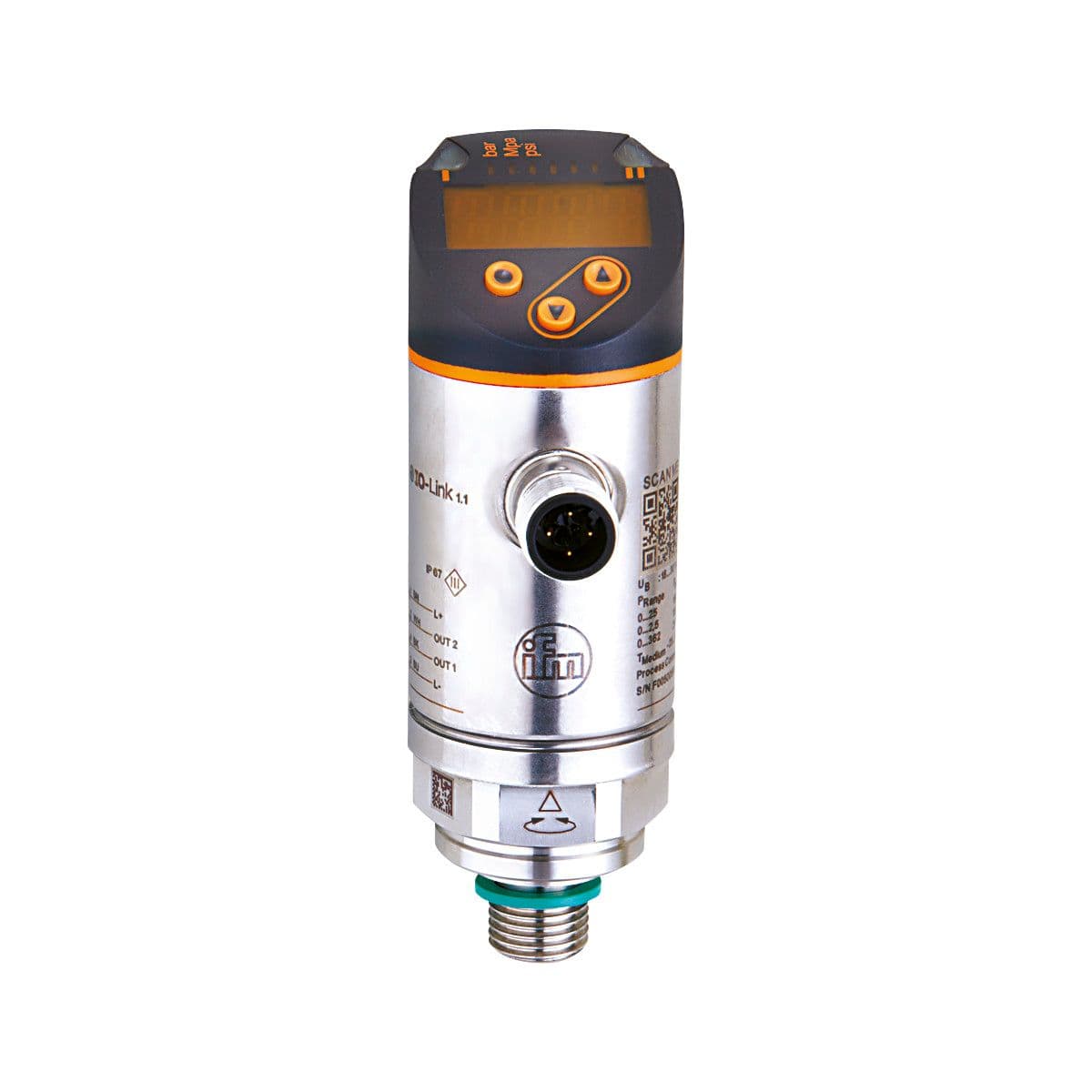

PN7596 ifm Electronic Electronic Components

Product Details

• Number of digital outputs
  2
• Current consumption [mA]
  < 35
• Permanent current rating of switching output DC [mA]
  150; (200 (...60 °C) 250 (...40 °C))
• Measuring element
  ceramic-capacitive pressure measuring cell
• Media
  liquids and gases
• Type of pressure
  relative pressure
• Integrated watchdog
  yes
• Switching frequency DC [Hz]
  < 170
• Electrical design
  PNP/NPN
• Measuring range
  0...2.5 bar 0...2500 mbar 0...36.2 psi 0...250 kPa
• Protection class
  III
• Operating voltage [V]
  18...30 DC; (according to EN 50178 SELV/PELV)
• Total number of outputs
  2
• Overload protection
  yes
• Application
  for industrial applications
• Process connection
  threaded connection G 1/4 external thread Internal thread:M5
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Output function
  normally open / closed; (configurable)
• Vacuum resistance [mbar]
  -1000
• Number of inputs and outputs
  Number of digital outputs: 2
Max. voltage drop switching output DC [V]
2.5
System
gold-plated contacts
Min. bursting pressure
50 bar 725 psi 5000 kPa
Reverse polarity protection
yes
Short-circuit protection
yes
Pressure rating
20 bar 290 psi 2000 kPa
Medium temperature [°C]
-25...80
Power-on delay time [s]
< 0.3
Output signal
switching signal; IO-Link; (configurable)
Type of short-circuit protection
yes (non-latching)
