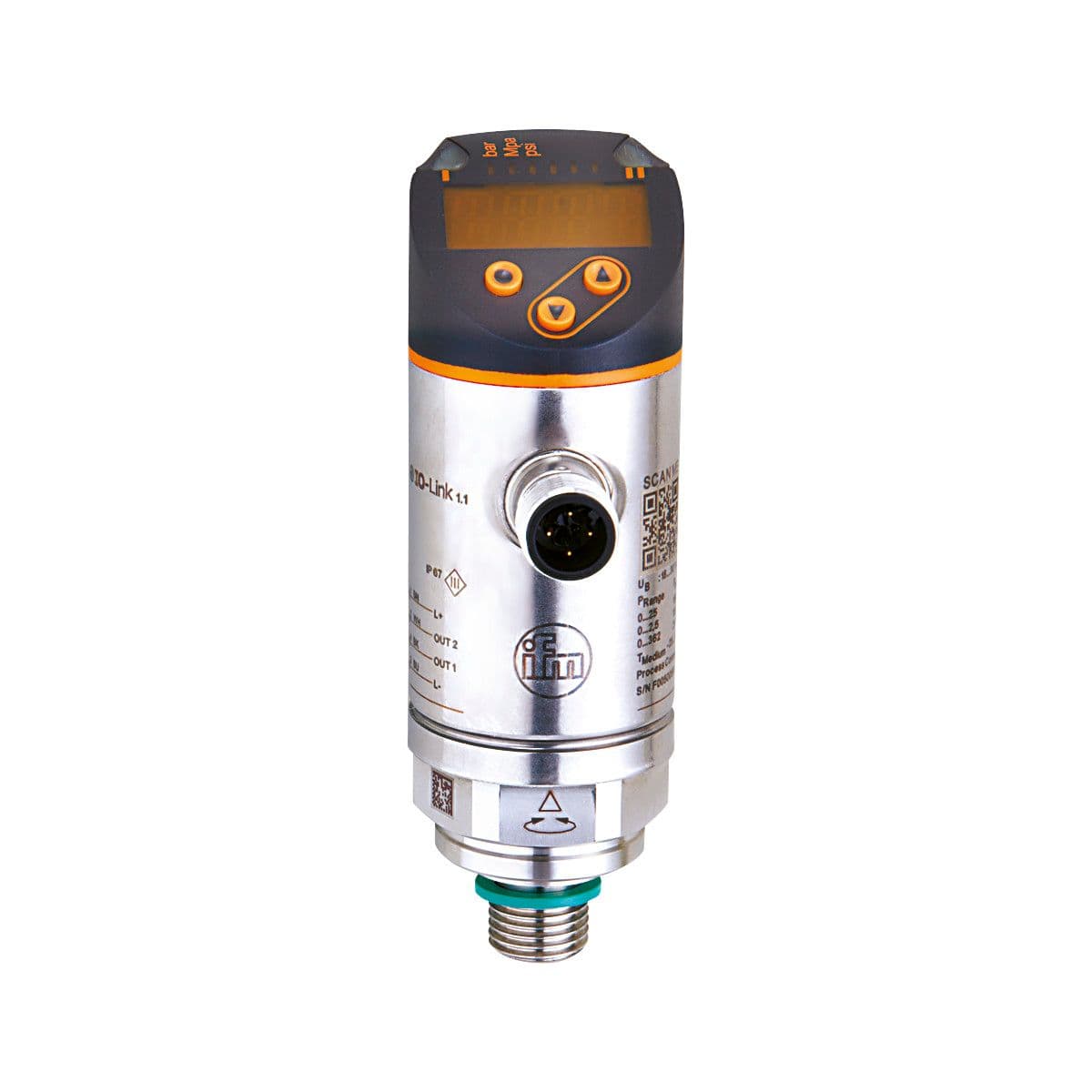

PN7572 ifm Electronic Electronic Components

Product Details

• System
  gold-plated contacts
• Measuring element
  metallic thin film cell
• Number of digital outputs
  2
• Reverse polarity protection
  yes
• Media
  Liquids
• Type of pressure
  relative pressure
• Measuring range
  0...100 bar 0...1450 psi 0...10 MPa
• Switching frequency DC [Hz]
  < 170
• Process connection
  threaded connection G 1/4 external thread Internal thread:M5
• Pressure rating
  300 bar 4350 psi 30 Mpa
• Number of inputs and outputs
  Number of digital outputs: 2
• Overload protection
  yes
• Output signal
  switching signal; IO-Link; (configurable)
• Output function
  normally open / closed; (configurable)
• Medium temperature [°C]
  -25...80
• Integrated watchdog
  yes
• Short-circuit protection
  yes
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Total number of outputs
  2
• Permanent current rating of switching output DC [mA]
  150; (200 (...60 °C) 250 (...40 °C))
Power-on delay time [s]
0.3
Protection class
III
Type of short-circuit protection
yes (non-latching)
Application
for industrial applications
Current consumption [mA]
< 35
Max. voltage drop switching output DC [V]
2.5
Min. bursting pressure
1000 bar 14500 psi 100 MPa
Operating voltage [V]
18...30 DC; (according to EN 50178 SELV/PELV)
Electrical design
PNP/NPN
