PT9541 ifm Electronic Electronic Components
Part#:PT9541
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

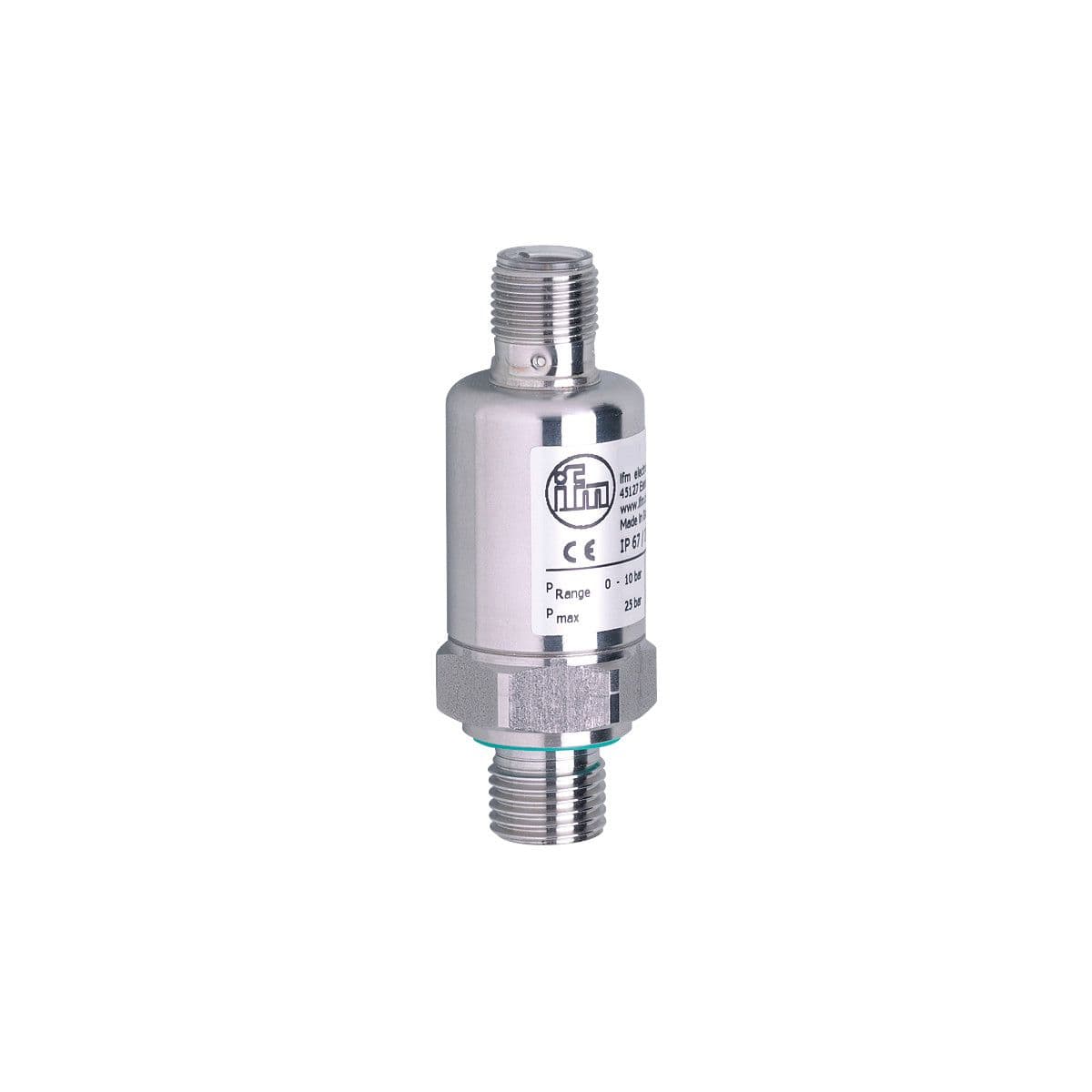

Pressure transmitter, Reliable detection of system pressure in industrial and mobile applications, Output signal: analog signal, Measuring range: 0...250 bar 0...3625 psi 0...25 MPa, Process connection: threaded connection G 1/4 external thread, Applicati
Product Details
- Min. load resistance [Ω] 2000
- Reverse polarity protection yes
- Analog voltage output [V] 0...10
- Number of analog outputs 1
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Total number of outputs 1
- Number of inputs and outputs Number of analog outputs: 1
- Protection class III
- Current consumption [mA] < 6
- Operating voltage [V] 16...36 DC
- Type of pressure relative pressure
- Pressure rating 400 bar 5800 psi 40 Mpa
- Medium temperature [°C] -25...90
- Min. bursting pressure 1000 bar 14500 psi 100 MPa
- Media liquids and gases
- Measuring range 0...250 bar 0...3625 psi 0...25 MPa
- Application for industrial applications
- Process connection threaded connection G 1/4 external thread
- Output signal analog signal
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
