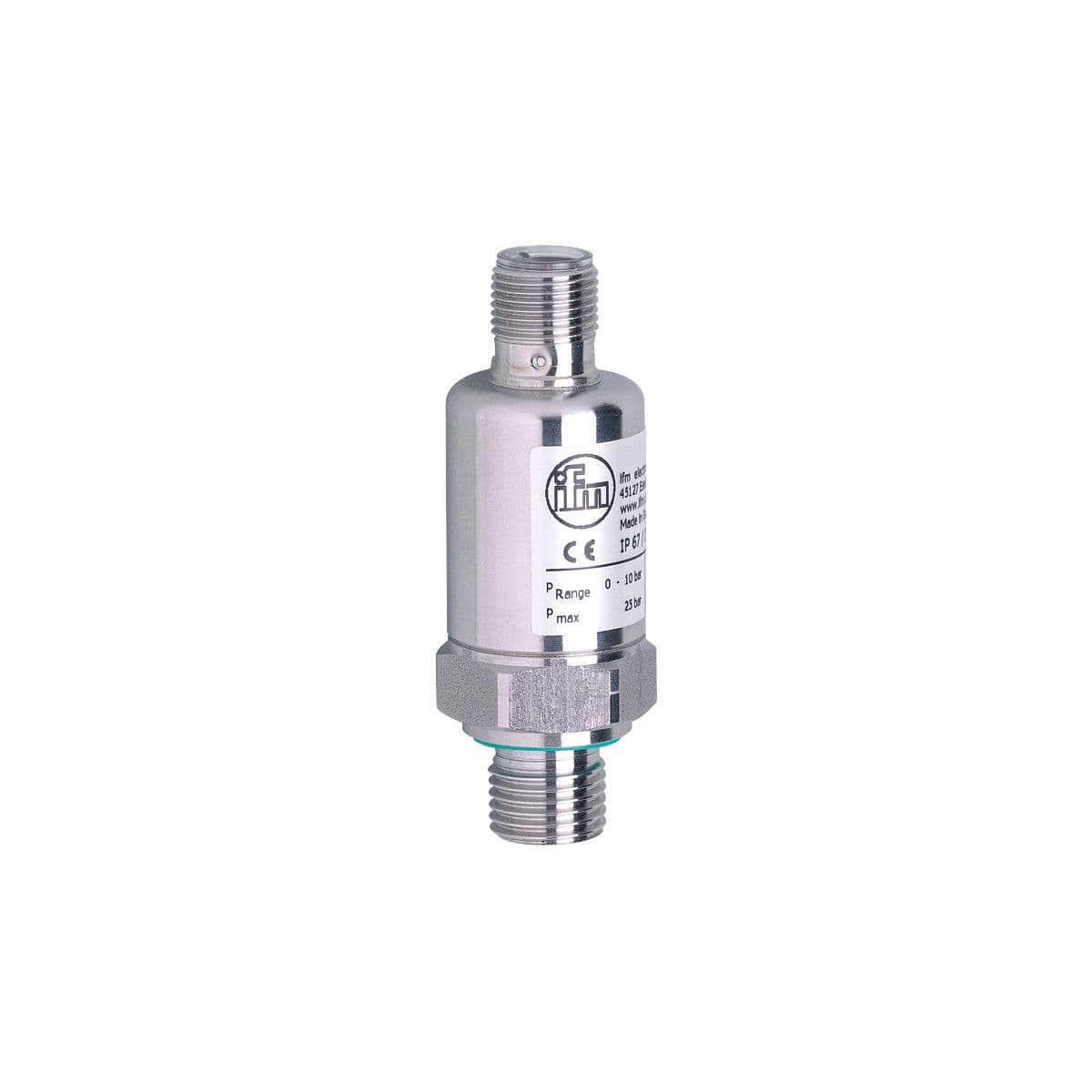

PT9554 ifm Electronic Electronic Components

Name: PT9554
Brand: ifm Electronic

Part#:PT9554

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

Pressure transmitter, Reliable detection of system pressure in industrial and mobile applications, Output signal: analog signal, Measuring range: 0...10 bar 0...145 psi 0...1000 kPa 0...1 MPa, Process connection: threaded connection G 1/4 external thread,

Product Details

Media
liquids and gases
Protection class
III
Number of analog outputs
1
Type of pressure
relative pressure
Reverse polarity protection
yes
Process connection
threaded connection G 1/4 external thread
Current consumption [mA]
< 6
Output signal
analog signal
Min. load resistance [Ω]
2000
Application
for mobile applications
Min. insulation resistance [MΩ]
100; (80 V DC)
Operating voltage [V]
16...36 DC
Min. bursting pressure
300 bar 4350 psi 30 MPa
Total number of outputs
1
Measuring range
0...10 bar 0...145 psi 0...1000 kPa 0...1 MPa
Pressure rating
25 bar 362 psi 2.5 Mpa
Analog voltage output [V]
0...10
Medium temperature [°C]
-25...90; (on request: -40...100 °C)
Number of inputs and outputs
Number of analog outputs: 1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PT9554 Related Documents

PDF data sheet-1631073283132.pdf
