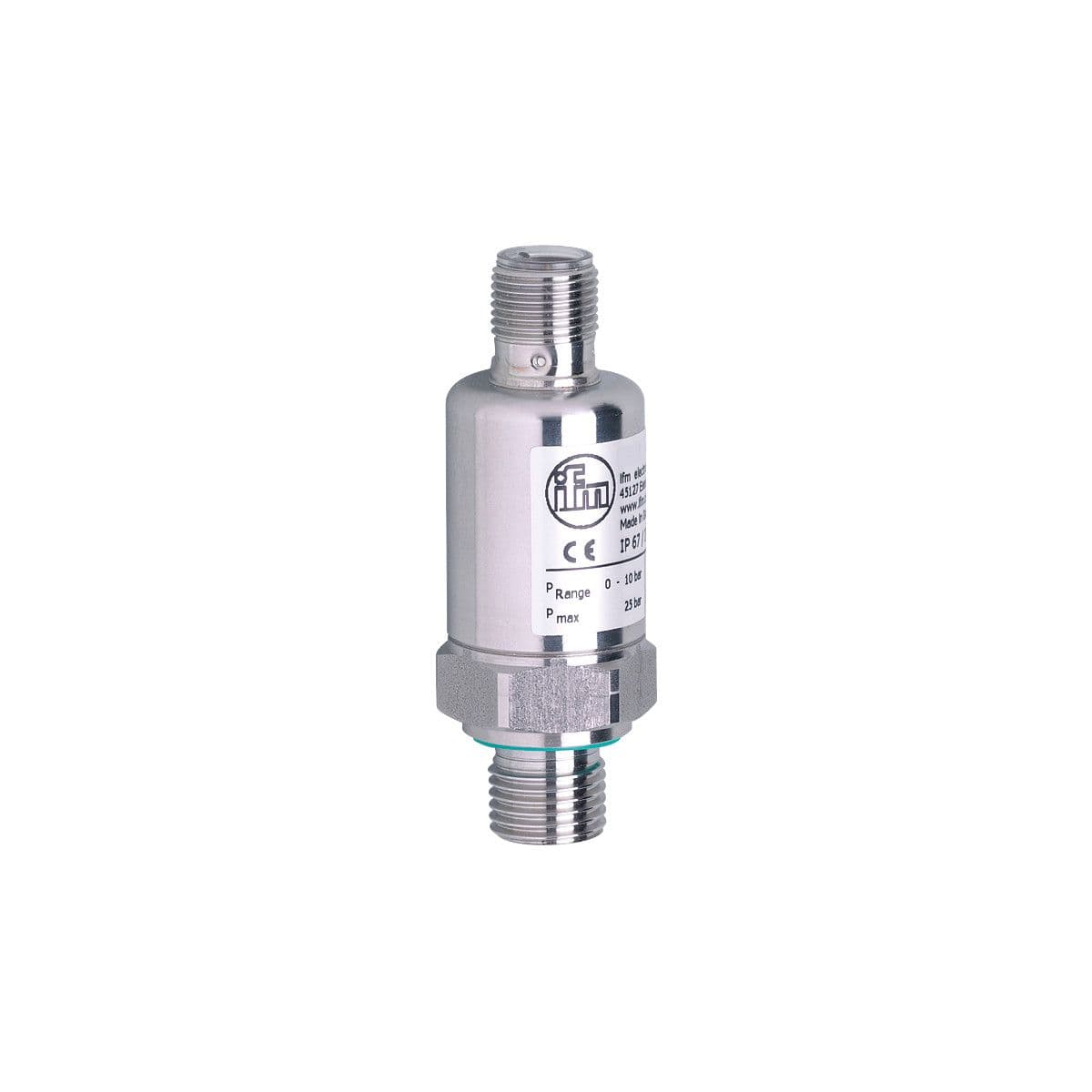

PT9544 ifm Electronic Electronic Components
Part#:PT9544
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Pressure transmitter, Reliable detection of system pressure in industrial and mobile applications, Output signal: analog signal, Measuring range: 0...10 bar 0...145 psi 0...1000 kPa 0...1 MPa, Process connection: threaded connection G 1/4 external thread,
Product Details
- Number of analog outputs 1
- Min. load resistance [Ω] 2000
- Number of inputs and outputs Number of analog outputs: 1
- Total number of outputs 1
- Reverse polarity protection yes
- Analog voltage output [V] 0...10
- Protection class III
- Current consumption [mA] < 6
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Operating voltage [V] 16...36 DC
- Medium temperature [°C] -25...90
- Pressure rating 25 bar 362 psi 2.5 Mpa
- Min. bursting pressure 300 bar 4350 psi 30 MPa
- Output signal analog signal
- Process connection threaded connection G 1/4 external thread
- Type of pressure relative pressure
- Measuring range 0...10 bar 0...145 psi 0...1000 kPa 0...1 MPa
- Media liquids and gases
- Application for industrial applications
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
