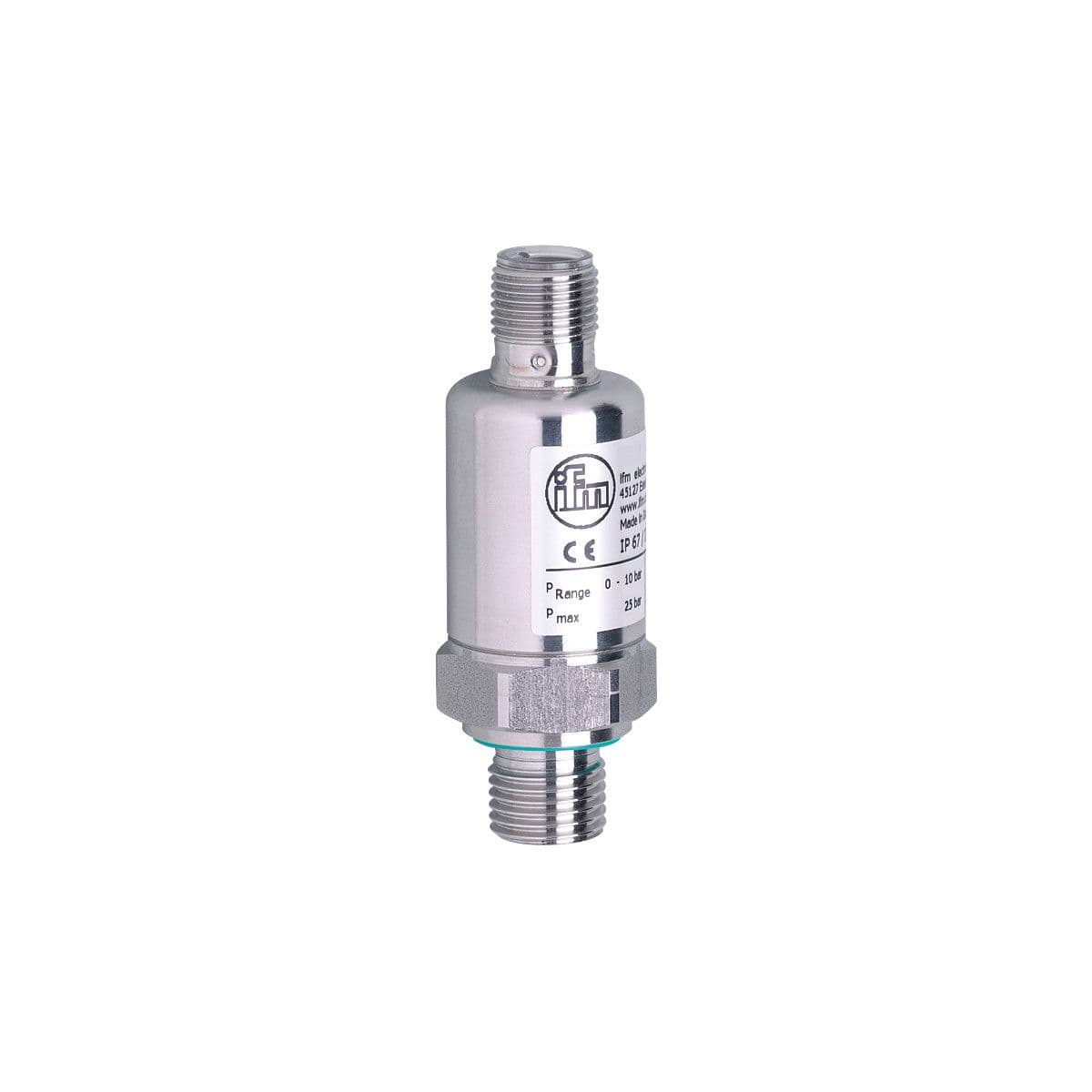

PT9543 ifm Electronic Electronic Components
Part#:PT9543
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Pressure transmitter, Reliable detection of system pressure in industrial and mobile applications, Output signal: analog signal, Measuring range: 0...25 bar 0...363 psi 0...2.5 MPa, Process connection: threaded connection G 1/4 external thread, Applicatio
Product Details
- Pressure rating 60 bar 870 psi 6 Mpa
- Number of inputs and outputs Number of analog outputs: 1
- Type of pressure relative pressure
- Media liquids and gases
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Medium temperature [°C] -25...90
- Total number of outputs 1
- Min. bursting pressure 600 bar 7253 psi 60 MPa
- Process connection threaded connection G 1/4 external thread
- Min. load resistance [Ω] 2000
- Protection class III
- Output signal analog signal
- Current consumption [mA] < 6
- Analog voltage output [V] 0...10
- Application for industrial applications
- Reverse polarity protection yes
- Number of analog outputs 1
- Measuring range 0...25 bar 0...363 psi 0...2.5 MPa
- Operating voltage [V] 16...36 DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
