IE5318 ifm Electronic Electronic Components
Part#:IE5318
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

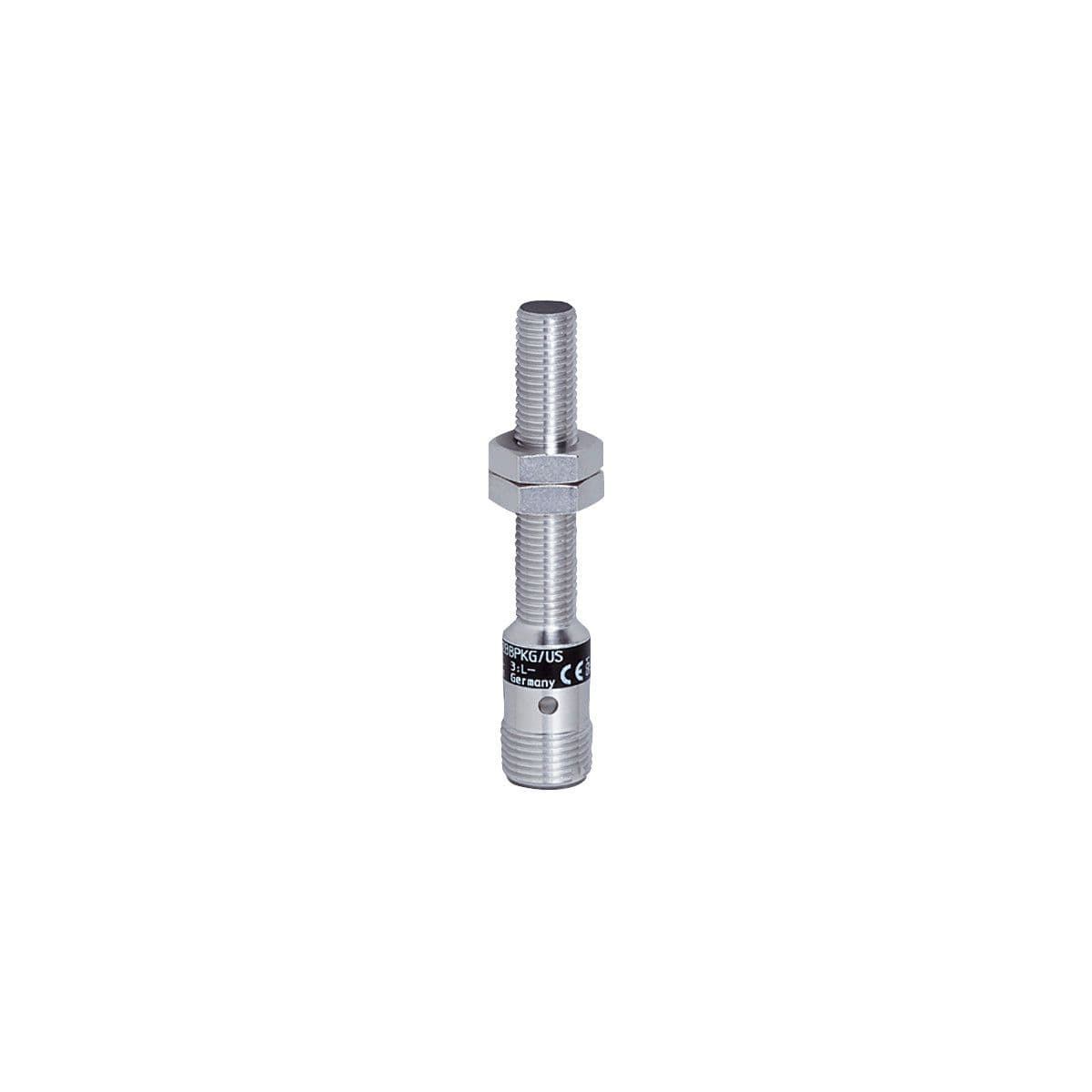

Inductive sensor, For use where space is restricted, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 2, Housing: Threaded type, Dimensions [mm]: M8 x 1 / L = 62
Product Details
- Reverse polarity protection yes
- Switching frequency DC [Hz] 800
- Max. voltage drop switching output DC [V] 1.6
- Output function normally open
- Overload protection yes
- Housing Threaded type
- Electrical design PNP
- Protection class III
- Dimensions [mm] M8 x 1 / L = 62
- Permanent current rating of switching output DC [mA] 250
- Current consumption [mA] 15; (24 V)
- Short-circuit protection yes
- Operating voltage [V] 10...36 DC
- Type of short-circuit protection yes (non-latching)
- Sensing range [mm] 2
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
