IGC201 ifm Electronic Electronic Components

Name: IGC201
Brand: ifm Electronic

Part#:IGC201

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

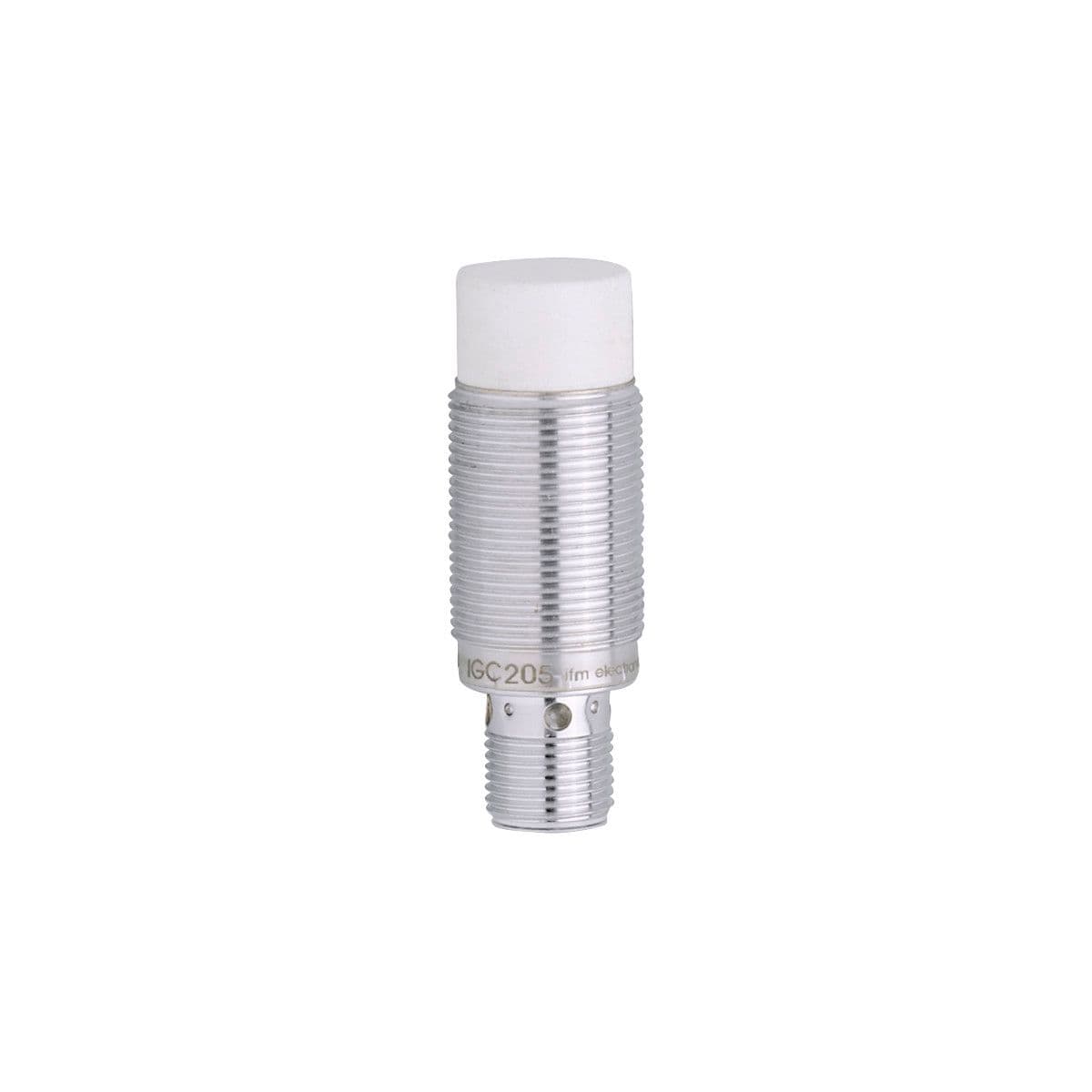

Inductive sensor, For use in machine tools and metalworking, Electrical design: PNP/NPN, Output function: normally open, Sensing range [mm]: 12, Housing: Threaded type, Dimensions [mm]: M18 x 1 / L = 51, System: gold-plated contacts; Increased sensing ran

Product Details

Operating voltage [V]
10...30 DC
System
gold-plated contacts; Increased sensing range
Overload protection
yes
Output function
normally open
Switching frequency DC [Hz]
250
Reverse polarity protection
yes
Minimum load current [mA]
2
Electrical design
PNP/NPN
Permanent current rating of switching output DC [mA]
100
Application
Oils and coolants
Protection class
II
Short-circuit protection
yes
Type of short-circuit protection
yes (non-latching)
Dimensions [mm]
M18 x 1 / L = 51
Sensing range [mm]
12
Max. voltage drop switching output DC [V]
2.5
Max. leakage current [mA]
0.5
Housing
Threaded type

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IGC201 Related Documents

PDF data sheet-1631071487398.pdf CAD_DWG_100_0073.ZIP-1631071487400.zip CAD_SAT_100_0073.ZIP-1631071487406.zip CAD_STP_100_0073.ZIP-1631071487423.zip CAD_DXF_100_0073.ZIP-1631071487427.zip
