IGC213 ifm Electronic Electronic Components
Part#:IGC213
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

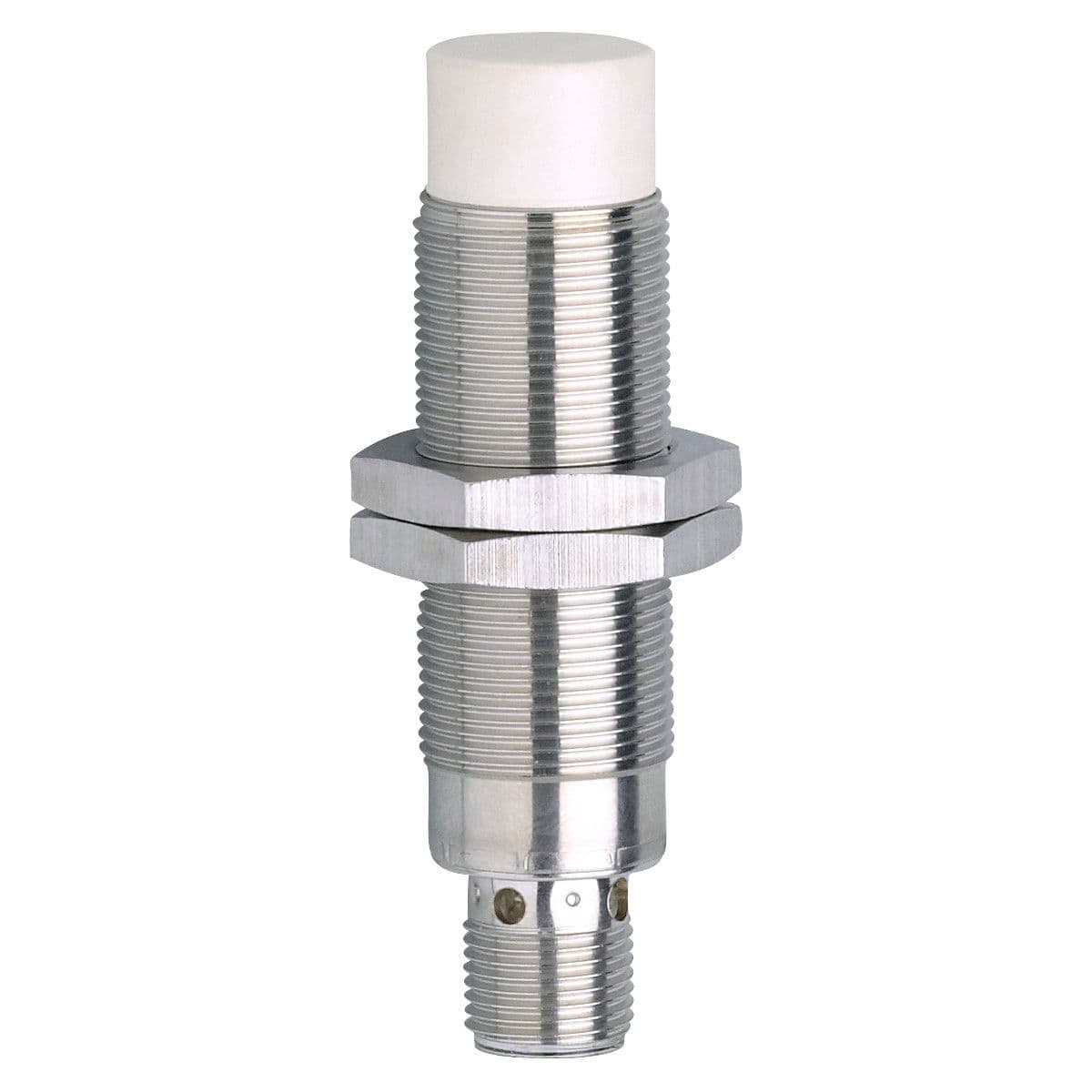

Inductive sensor, For use in machine tools and metalworking, Electrical design: PNP/NPN, Output function: normally open, Sensing range [mm]: 12, Housing: Threaded type, Dimensions [mm]: M18 x 1 / L = 70, System: gold-plated contacts; Increased sensing ran
Product Details
- Short-circuit protection yes
- Housing Threaded type
- Sensing range [mm] 12
- Permanent current rating of switching output DC [mA] 100
- Protection class II
- Type of short-circuit protection yes (non-latching)
- Application Oils and coolants
- Minimum load current [mA] 4
- Dimensions [mm] M18 x 1 / L = 70
- Operating voltage [V] 10...30 DC
- System gold-plated contacts; Increased sensing range; optical setting aid
- Reverse polarity protection yes
- Electrical design PNP/NPN
- Max. voltage drop switching output DC [V] 2.8
- Overload protection yes
- Max. leakage current [mA] 0.9; (only in 2-wire operation)
- Switching frequency DC [Hz] 300
- Output function normally open
- Current consumption [mA] 12; (24 V)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
