IGC248 ifm Electronic Electronic Components

Name: IGC248
Brand: ifm Electronic

Part#:IGC248

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

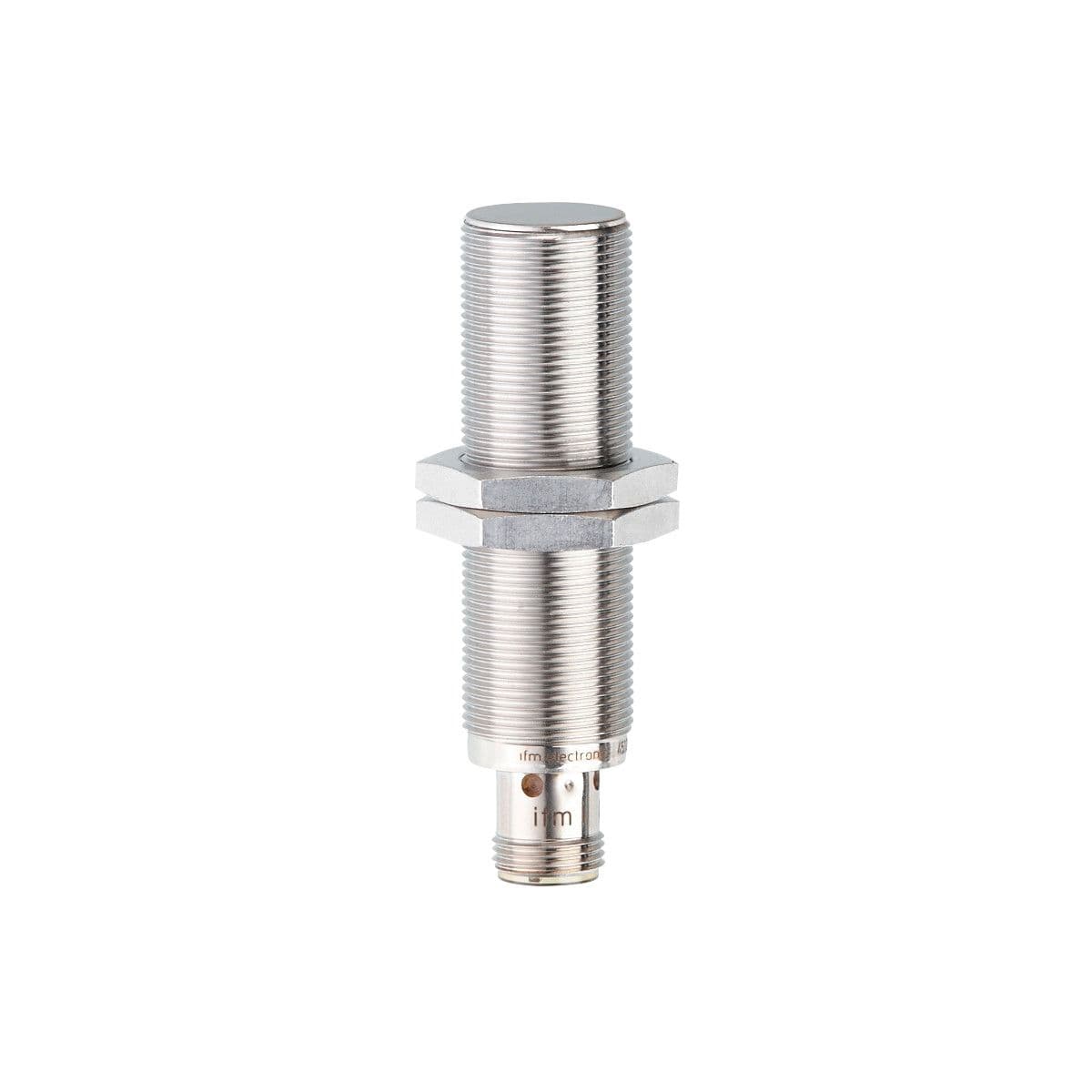

Inductive full-metal sensor, For use in machine tools and metalworking, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 5, Housing: Threaded type, Dimensions [mm]: M18 x 1 / L = 70, System: gold-plated contacts; Full-metal hous

Product Details

Application
Oils and coolants
Electrical design
PNP
Type of short-circuit protection
yes (non-latching)
Reverse polarity protection
yes
Dimensions [mm]
M18 x 1 / L = 70
Housing
Threaded type
Protection class
III
System
gold-plated contacts; Full-metal housing
Max. voltage drop switching output DC [V]
2.5
Sensing range [mm]
5
Switching frequency DC [Hz]
100
Operating voltage [V]
10...30 DC
Output function
normally open
Overload protection
yes
Pressure rating [bar]
100
Permanent current rating of switching output DC [mA]
100
Current consumption [mA]
< 20
Note on pressure rating
sensing face
Short-circuit protection
yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
