IGC261 ifm Electronic Electronic Components

Name: IGC261
Brand: ifm Electronic

Part#:IGC261

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

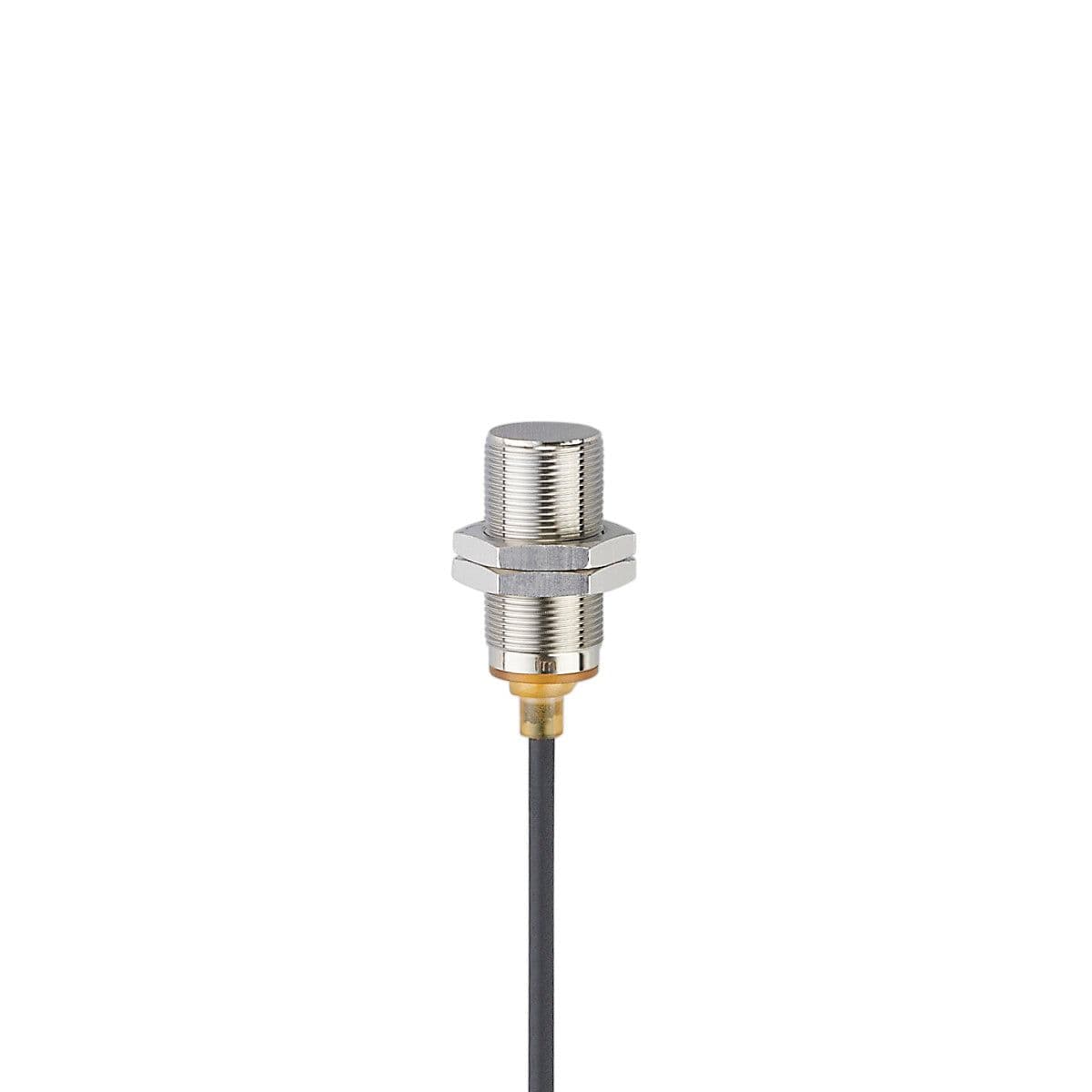

Inductive full-metal sensor, For use in machine tools and metalworking, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 8, Housing: Threaded type, Dimensions [mm]: M18 x 1 / L = 40, System: Drag chain suitability; Increased sen

Product Details

System
Drag chain suitability; Increased sensing range; Full-metal housing
Overload protection
yes
Max. voltage drop switching output DC [V]
2.5
Application
Oils and coolants
Sensing range [mm]
8
Permanent current rating of switching output DC [mA]
100
Pressure rating [bar]
20
Current consumption [mA]
< 10
Housing
Threaded type
Dimensions [mm]
M18 x 1 / L = 40
Note on pressure rating
sensing face
Switching frequency DC [Hz]
100
Operating voltage [V]
10...30 DC
Electrical design
PNP
Output function
normally open
Reverse polarity protection
yes
Short-circuit protection
yes
Protection class
III

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IGC261 Related Documents

PDF data sheet-1631071426674.pdf CAD_SAT_100_0930.ZIP-1631071426681.zip CAD_DXF_100_0930.ZIP-1631071426670.zip CAD_DWG_100_0930.ZIP-1631071426672.zip CAD_STP_100_0930.ZIP-1631071426677.zip
